Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing cards in the 7360 ISAM FX-16 shelf
128
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

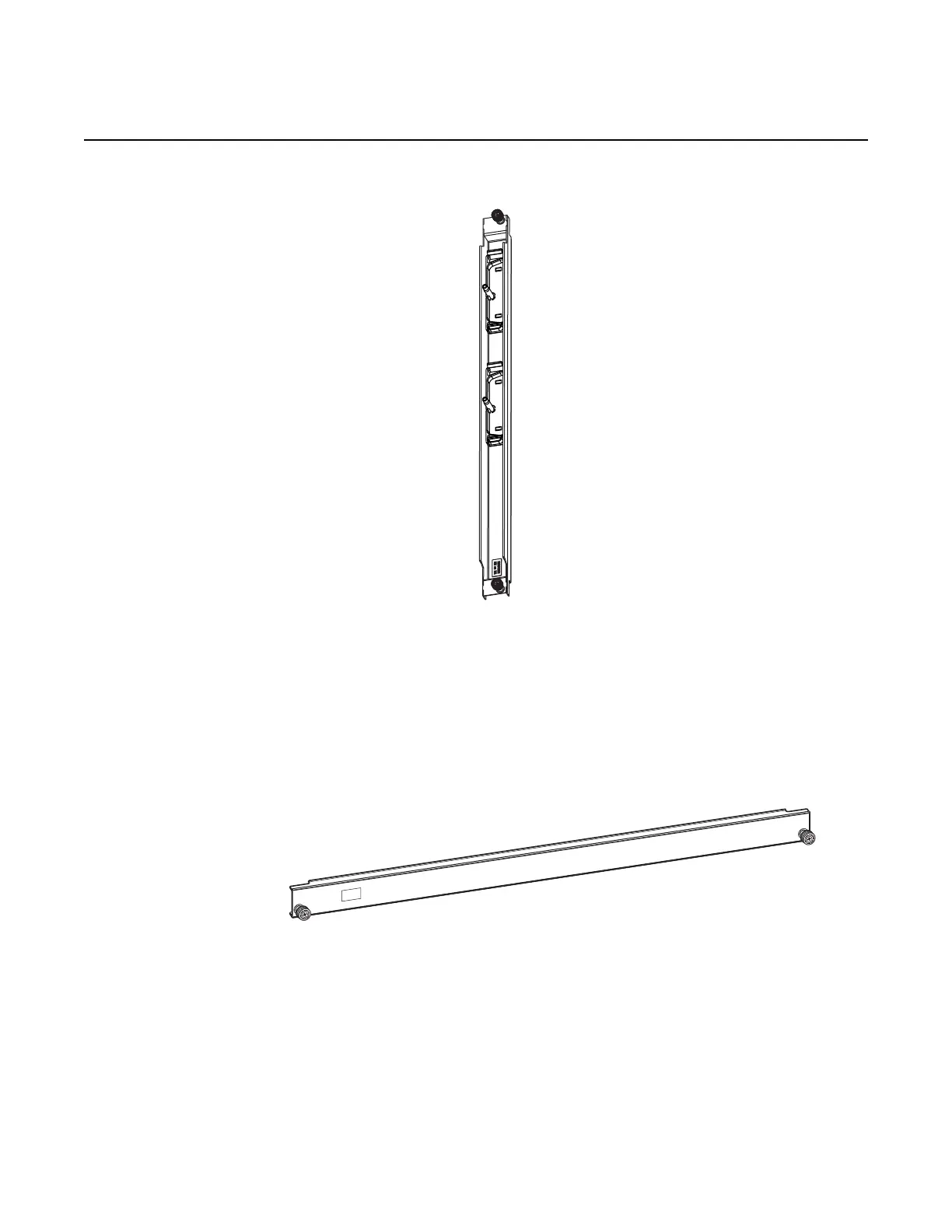

Figure 54 Universal dummy front panel for NTIO card
7.3.3 Dummy front panel for optical LT cards
A dummy front panel must be used for all unused LT card slots. Figure 55 shows one
example of a dummy front panel for optical LT card slots.
Figure 55 Dummy front panel for optical LT card
22429
26133
X
XXX
X
X
X
X
X
X
X
xx
