Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing cards in the 7360 ISAM FX-4 shelf
374
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

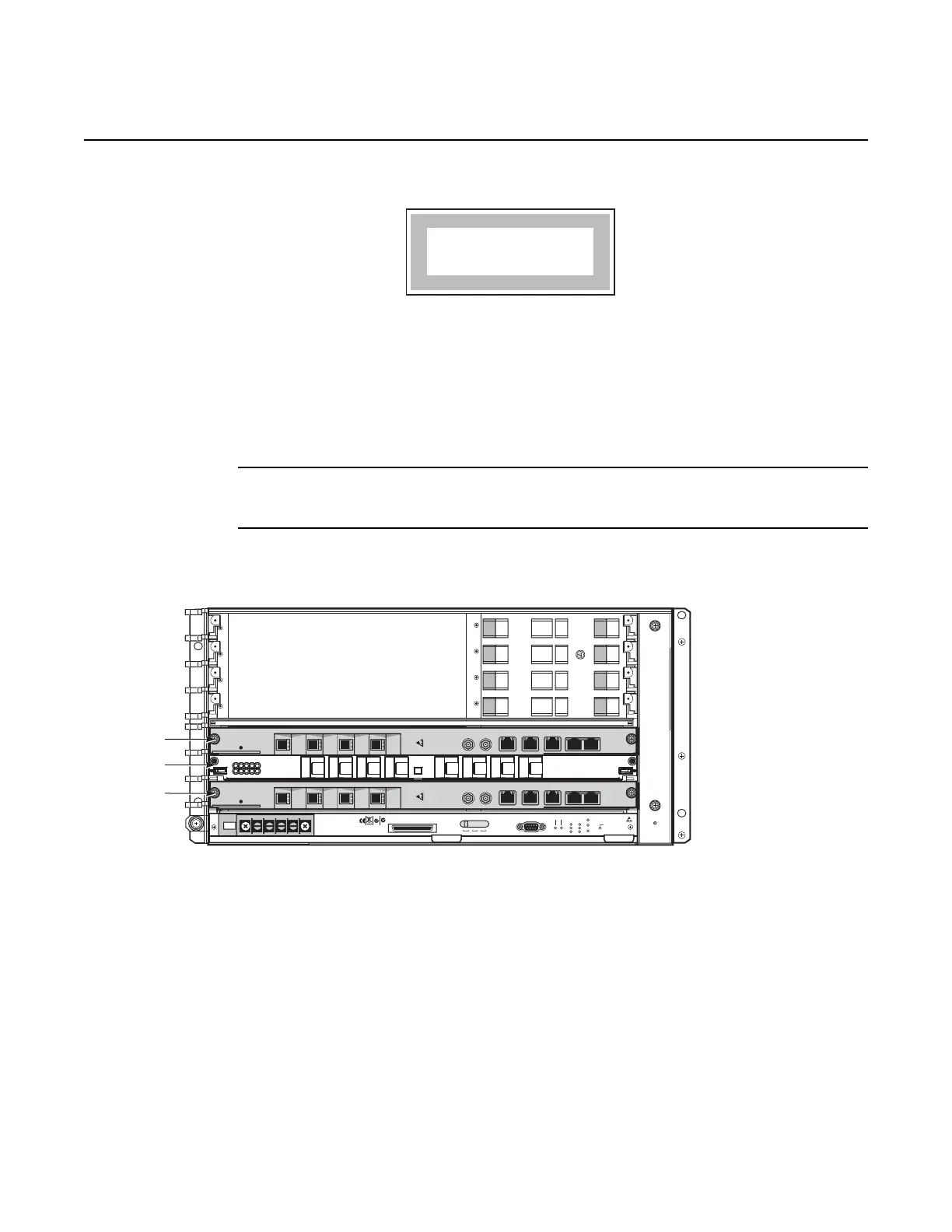

Figure 215 Laser classification label
Procedure 82 To install NTIO cards
Each shelf containing one or two redundant NT boards can have an NT I/O applique. The NT I/O
applique is a single board which is installed in the NT I/O slot between the two NT slots of the FX-
4 shelf.
1 Remove the NT I/O board from its ESD protective bag. Make sure to wear the antistatic wrist
strap.
2 Insert the NTIO board in the NTIO slot; see Figure 216.
Figure 216 NTIO slot
CLASS 1 LASER PRODUCT
18256
FAN
NTA NTIO NTB 01 02 03 04
24501
7360 ISAM FX-4
TOD/IHZ
Critical Alarms
FUSE BAT A Remote Craft BITS External Alarms
NTA GND NTB
Major
ACO
1
A B
2
3
Minor
BAT B
N594
7360 ISAM FX-4
NT B
NT A
NTIO
