Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-16 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 79
DRAFT
Figure 21 shows an example for the rack mounting configuration 3FE 66742 AB.

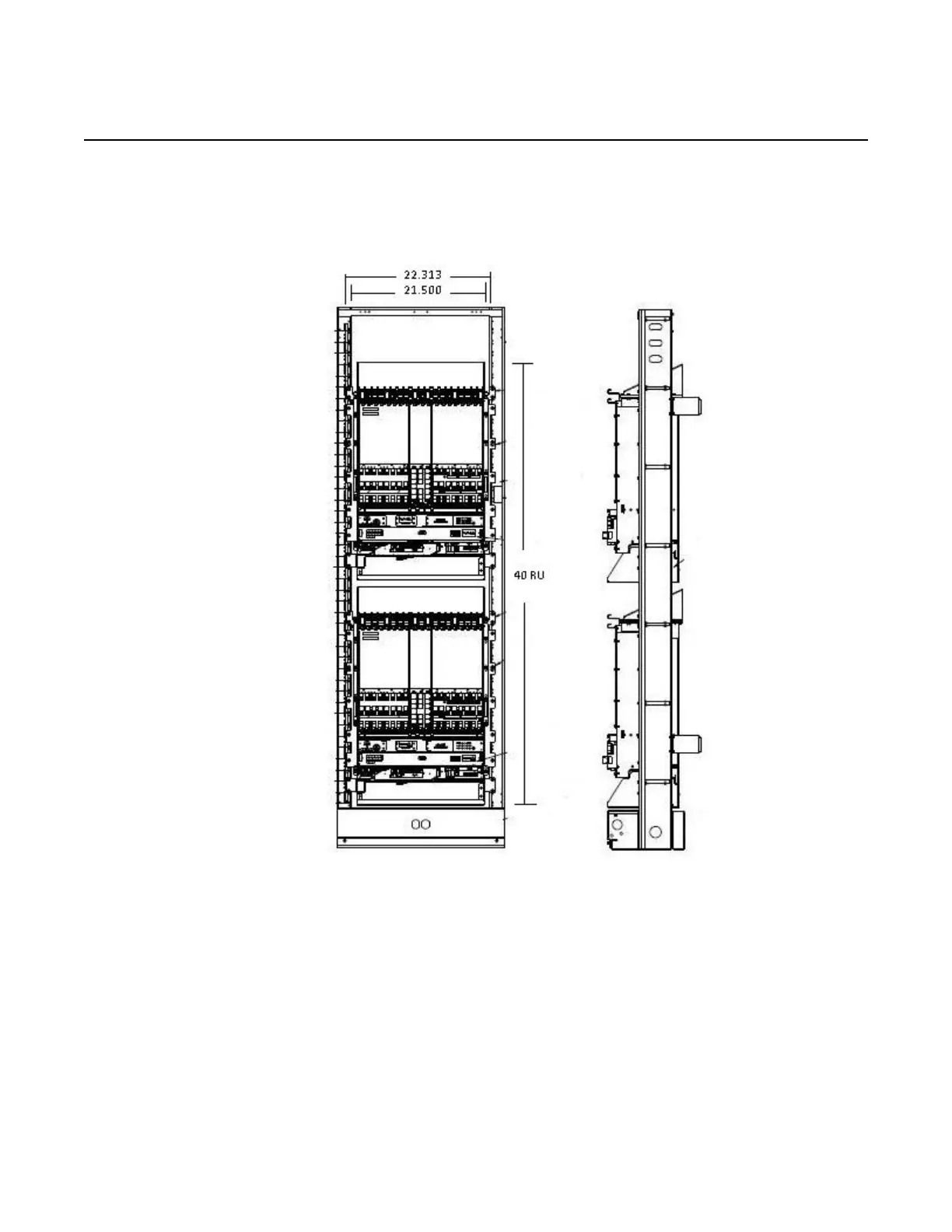

Figure 21 Rack mounting configuration 3FE 66742 AB for 7360 ISAM FX-16
5.2.2 Parts list
The following parts are required:
• one 7360 ISAM FX-16 shelf including: (if not factory installed in a rack)
• 12 × 24 1/2in. (12 mm) hex screws (x 5 each side)
• one fan unit (BFAN-H)
23921
