Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing cards in the 7360 ISAM FX-12 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 205
DRAFT
Figure 102 NTIO slot
3 Use the ejector handles to engage the board connectors in the backplane.
4 Lock the board in place with the fixation screws located at the top and bottom of the faceplate
of the board; see Figure 102. The maximum torque is 0.6 Nm.
Procedure 42 To install LT cards
Depending on the configuration, the 7360 ISAM FX-12 can house up to 12 line termination (LT)
cards.

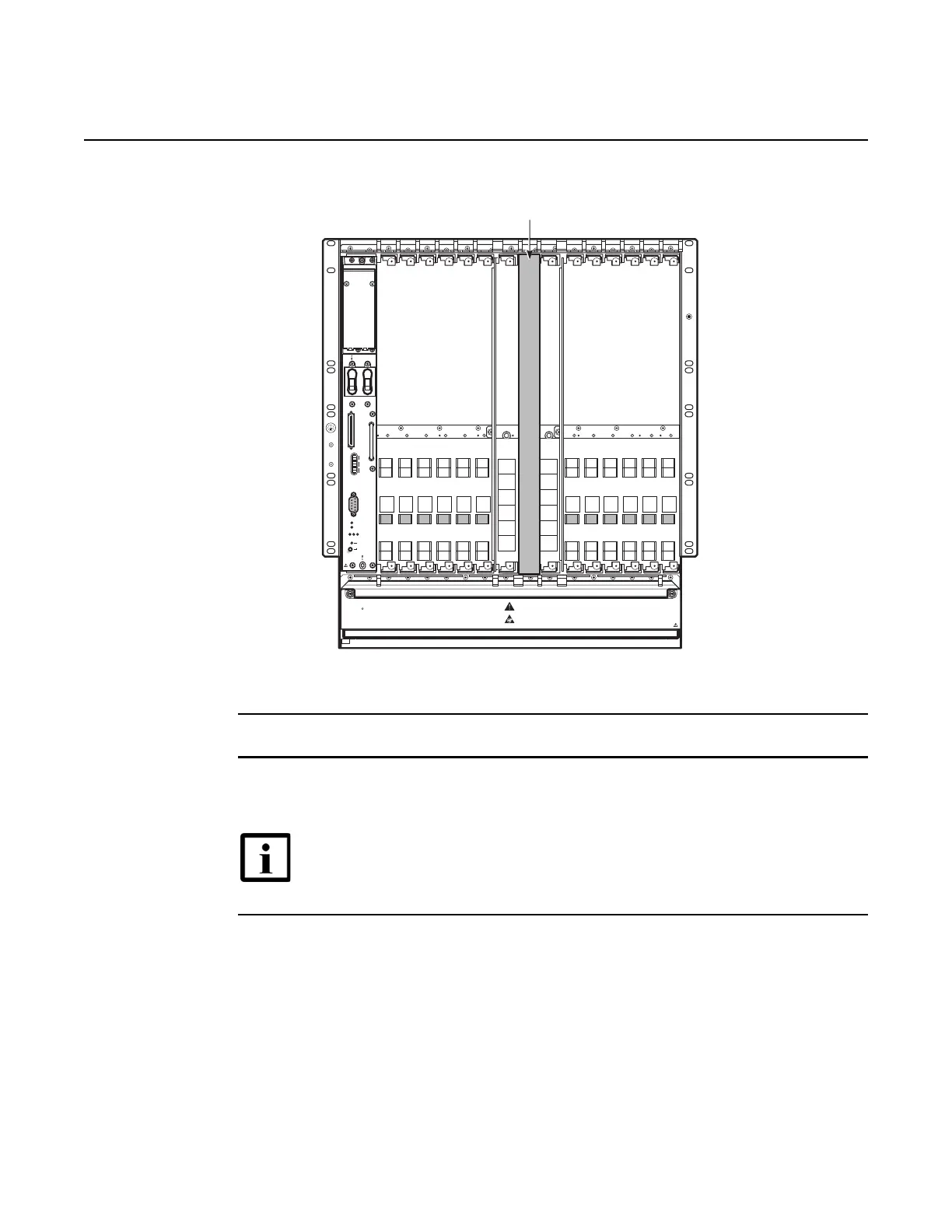

Figure 103 shows the LT card slots.
Note — Once the board is mounted in its slot, the green PWR LED lights
up.
24897
GFC LT1 LT2 LT3 LT4 LT6 NTA NTB NTIO LT5 LT7 LT8 LT 9 LT1 0 LT1 2LT1 1
Alarm
ENERGY HAZARD
ROATING FAN BLADES
KEEP FINGERS AWAY FROM
TOP AND BOTTOM OF FAN TRAY
B: 60AA: 60A
External Alarms
BITS
NTA
GND
NTB
Remote
Craft
BAT A
BAT B
Min.
ACO
Maj. Crit.
Alarms
7360 ISAM FX-12
NTIO
