Nokia 7360 Intelligent Services Access Manager FX Series User Manual

7360 ISAM FX-12 shelf cabling
172
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

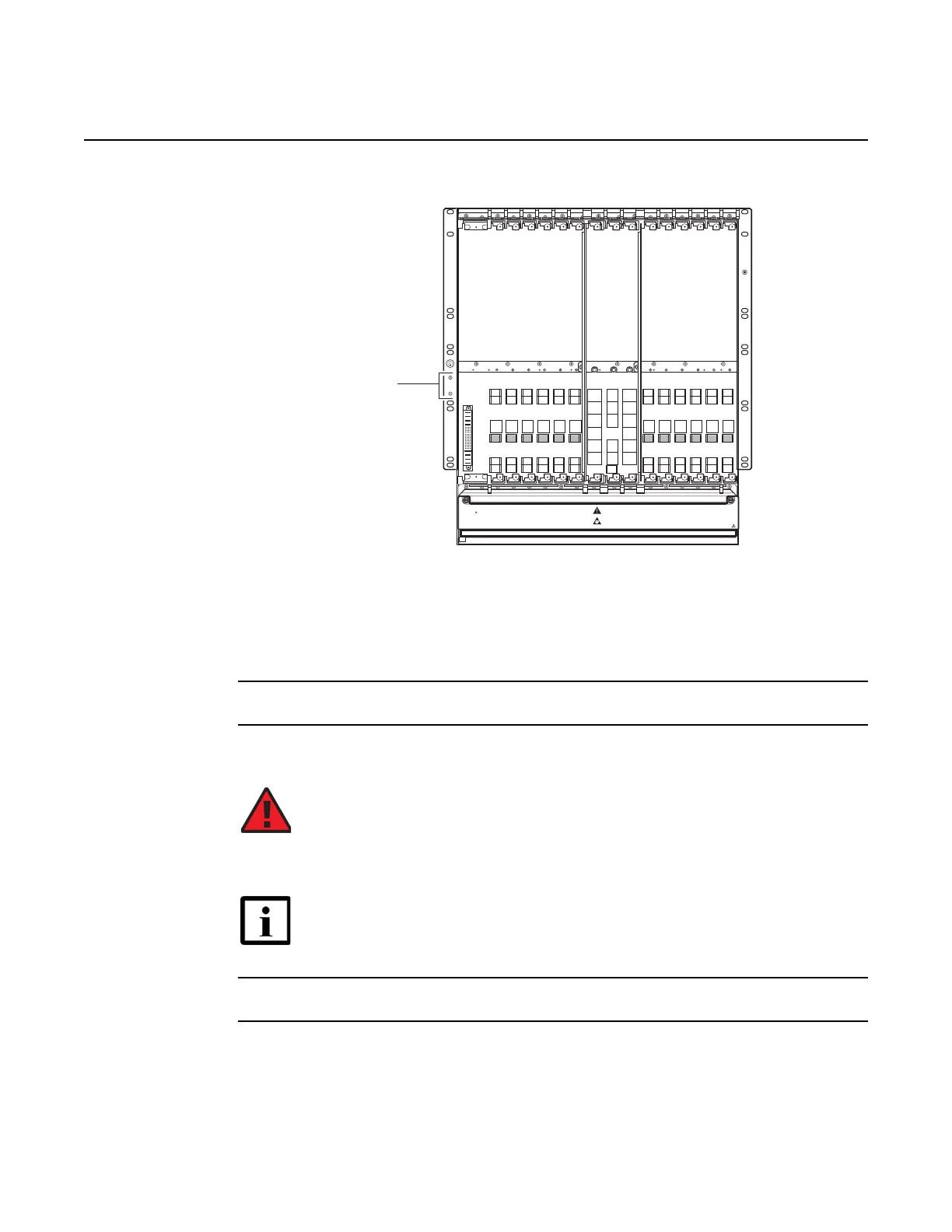

Figure 79 Grounding cable connection on 7360 ISAM FX-12
Procedure 33 To connect the grounding cable
Use the following procedure to connect the grounding cable.
1 Route the grounding cable to the right side of the shelf and up to the middle of the shelf.
2 Connect the dual-lug to the grounding cable connection point as shown in Figure 79.
3 STOP. This procedure is complete.
GF C LT1 LT2 LT 3 LT4 LT6 NTA NTB NTIO LT5 LT7 LT8 LT9 LT10 LT12LT11
Alarm
ENERGY HAZARD
ROATING FAN BLADES
KEEP FINGERS AWAY FROM
TOP AND BOTTOM OF FAN TRAY
Ground cable connector
24951
Danger — Possible risk of personal injury or damage to equipment due
to inaccurate or faulty ground cabling.
Inaccurate grounding connection can cause electric shock or equipment
damage when the rack power is switched on.
Note — The grounding cable nuts should be tightened with a torque of
13.28 to 17.7 lbf-in. (1.5 to 2.0 N.m).
