Nokia 7360 Intelligent Services Access Manager FX Series - Figure 62 Ejector Handles for LT Cards; Figure 63 Ejector Handles for LT Cards; Figure 64 Ejector Handles for NT Cards

ANSI Hardware Installation Manual Installing cards in the 7360 ISAM FX-16 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 139
DRAFT

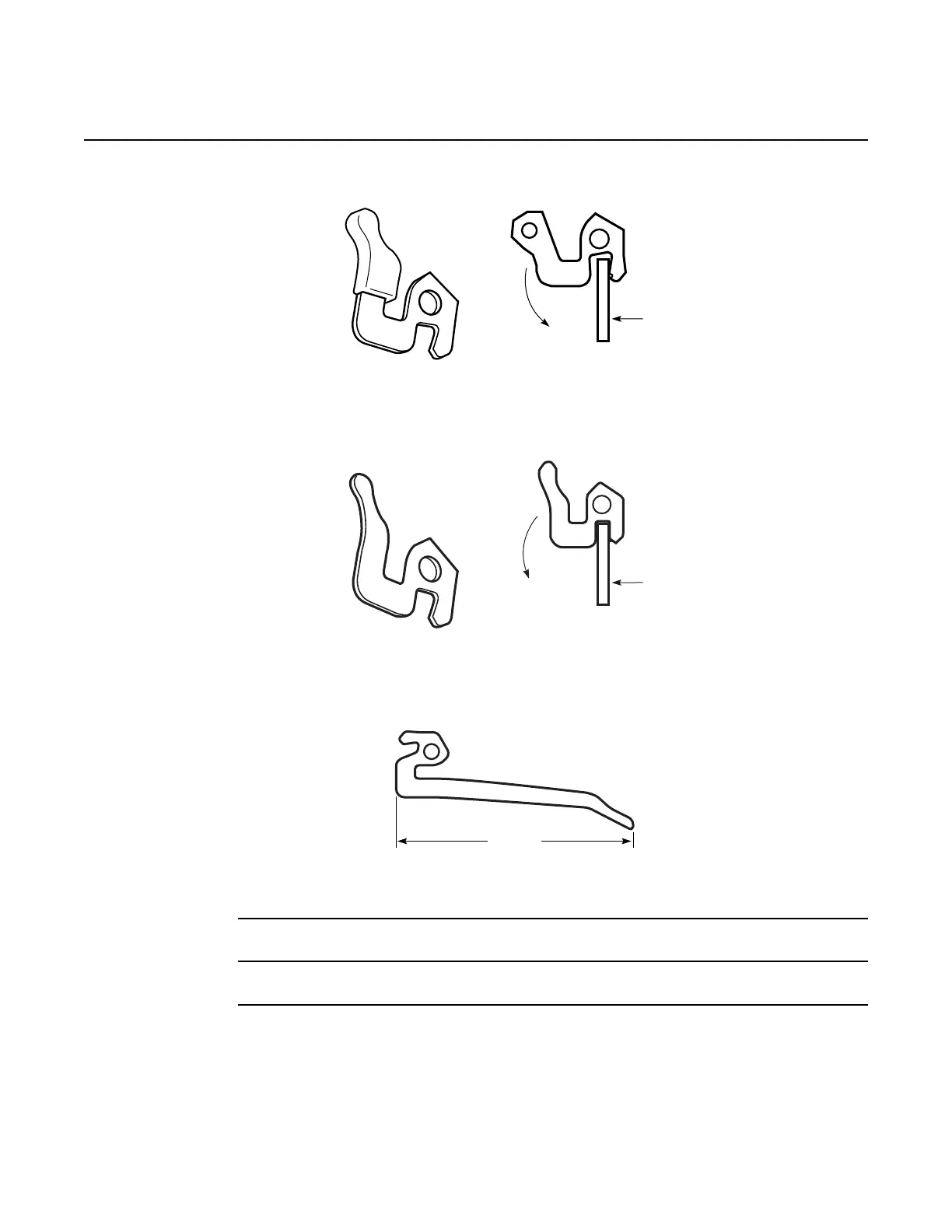

Figure 62 Ejector handles for LT cards
Figure 63 Ejector handles for LT cards
Figure 64 Ejector handles for NT cards
5 Remove the card from its slot and place it in an ESD protective bag.
6 STOP. This procedure is complete.
Withdrawl
Guiding plate
22376
Withdrawl
Guiding plate
25830
33.77 in.
85.8 cm
22375
