ANSI Hardware Installation Manual 7360 ISAM WM shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 407
DRAFT
22.3.1 Grounding cable type
As shown in Figure 234, the 7360 ISAM WM includes one grounding cable
connector. Each ground lug is a 4 AWG, 3/8 in. stud with 1 in. hole spacing, single
crimp, peep, copper, UL- and CSA-recognized dual-hole lug. The preferred cable is
4 AWG, green with a yellow stripe. Other types and sizes of wire and lugs can also
be used provided they meet the requirements of Article 250 of the NEC. The
7360 ISAM WM shelf will also accept lugs with 1/4 in. holes.
22.3.2 Cable routing and connection
The grounding cable must be used when the shelf is assembled in a rack. The cable
is routed to the grounding terminal through an opening in the right side of the shelf,
or an opening in the left side of the shelf.
The left side connection for the grounding cable is shown in Figure 234. The
grounding cable is connected to the shelf frame with hardware included with the
shelf.

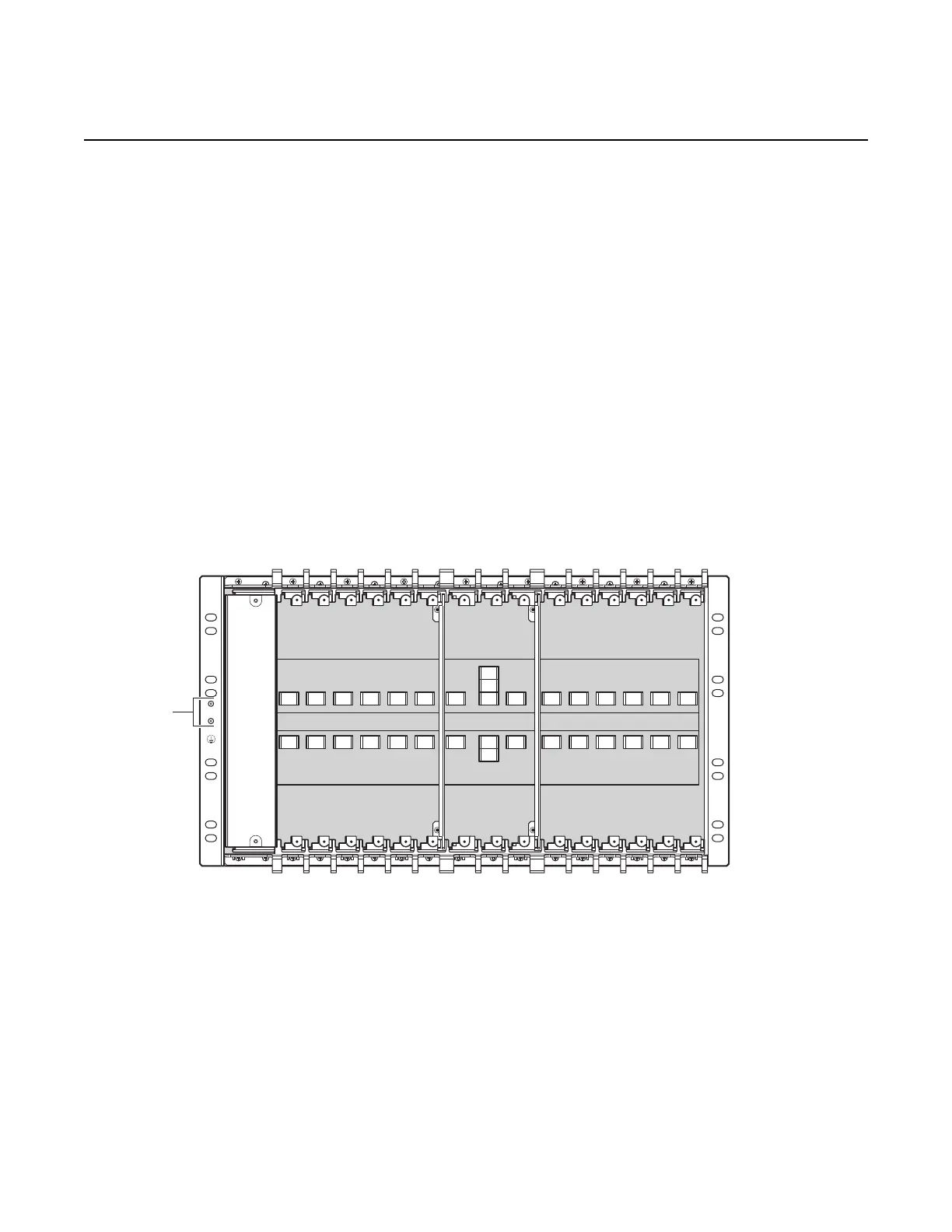

Figure 234 Shelf grounding cable connector location on 7360 ISAM WM
