Nokia 7360 Intelligent Services Access Manager FX Series - Figure 6 Horizontal Mount Position for 7360 ISAM FX-8 in a 23 In. Rack

ANSI Hardware Installation Manual Overview
Issue: 09 3HH-12893-AAAA-TCZZA 45
DRAFT

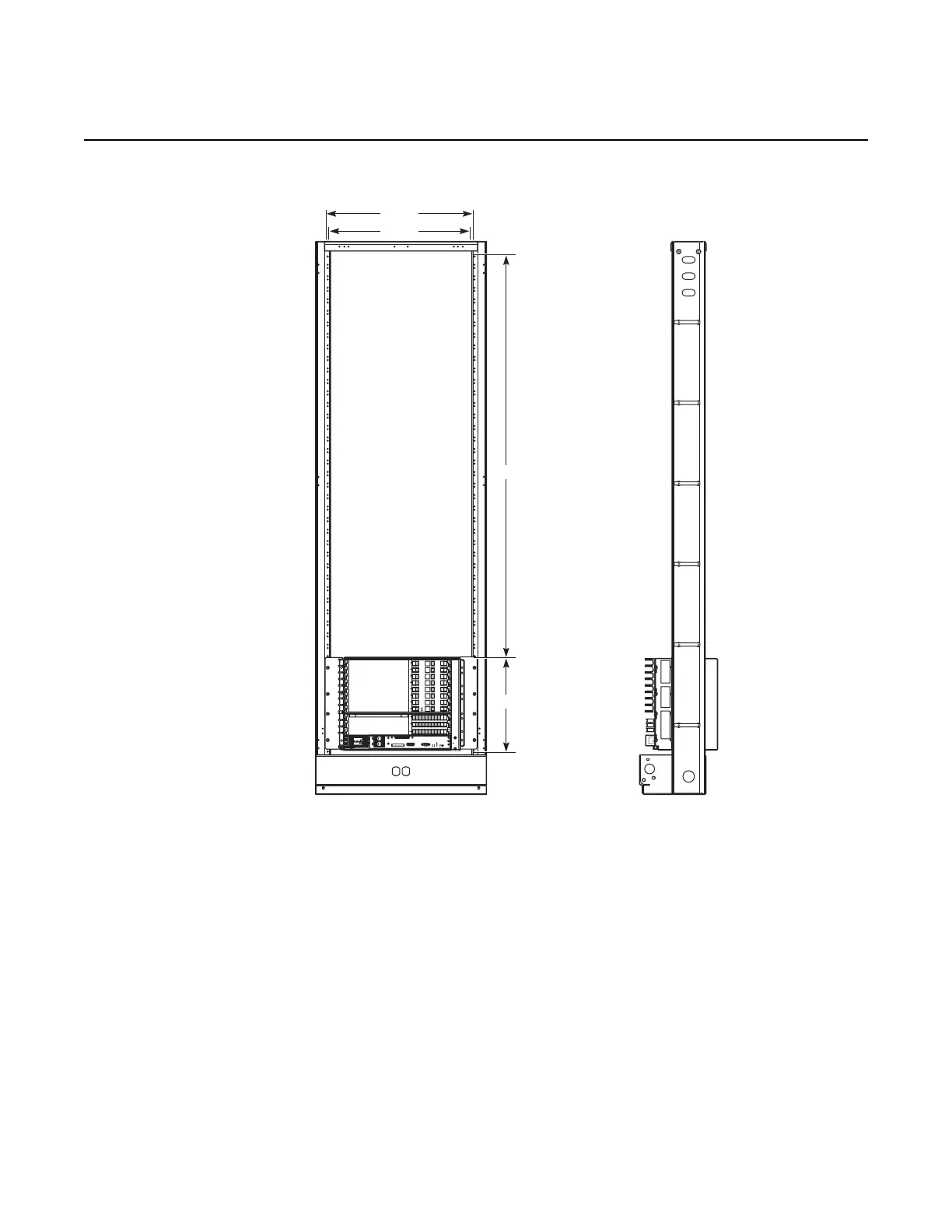

Figure 6 Horizontal mount position for 7360 ISAM FX-8 in a 23 in. rack
Energy Hazzard
TOD/IHZ
FAN
NTA
NTIO NTB 01 02 03 04 05 06 07 08
7360 ISAM FX-8
Energy Hazard
Critical
Alarms
ACO
BAT A
Remote Craft
BITS
External Alarms
Major
Minor
BAT B
7360 ISAM FX-8
B-40A
A-40A
NTA GND NTB
22734
22.313
21.500
35 RU
8 RU
