ANSI Hardware Installation Manual Installing cards in the 7360 ISAM FX-4 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 379
DRAFT
8 Install LT card dummy panels in any unused, unpopulated LT card slots to maintain proper
operation.
9 STOP. This procedure is complete.
Procedure 85 To remove cards
Use the following procedure to remove cards.
1 Put on the antistatic wrist strap and connect it to the earth bonding point at the bottom of the
7360 ISAM FX-4; see Figure 214.
2 Test the ESD wrist strap with the ohmmeter to ensure effectiveness; it must measure 1 MΩ
+/-20% to ground.
3 Loosen the fixation screws located at the top and bottom of the front panel of the card.
4 Use the ejector handles to disengage the card connectors from the backplane. Figures 219
and 220 show the ejector handles for LT cards. Figure 221 shows the ejector handles for NT
cards.

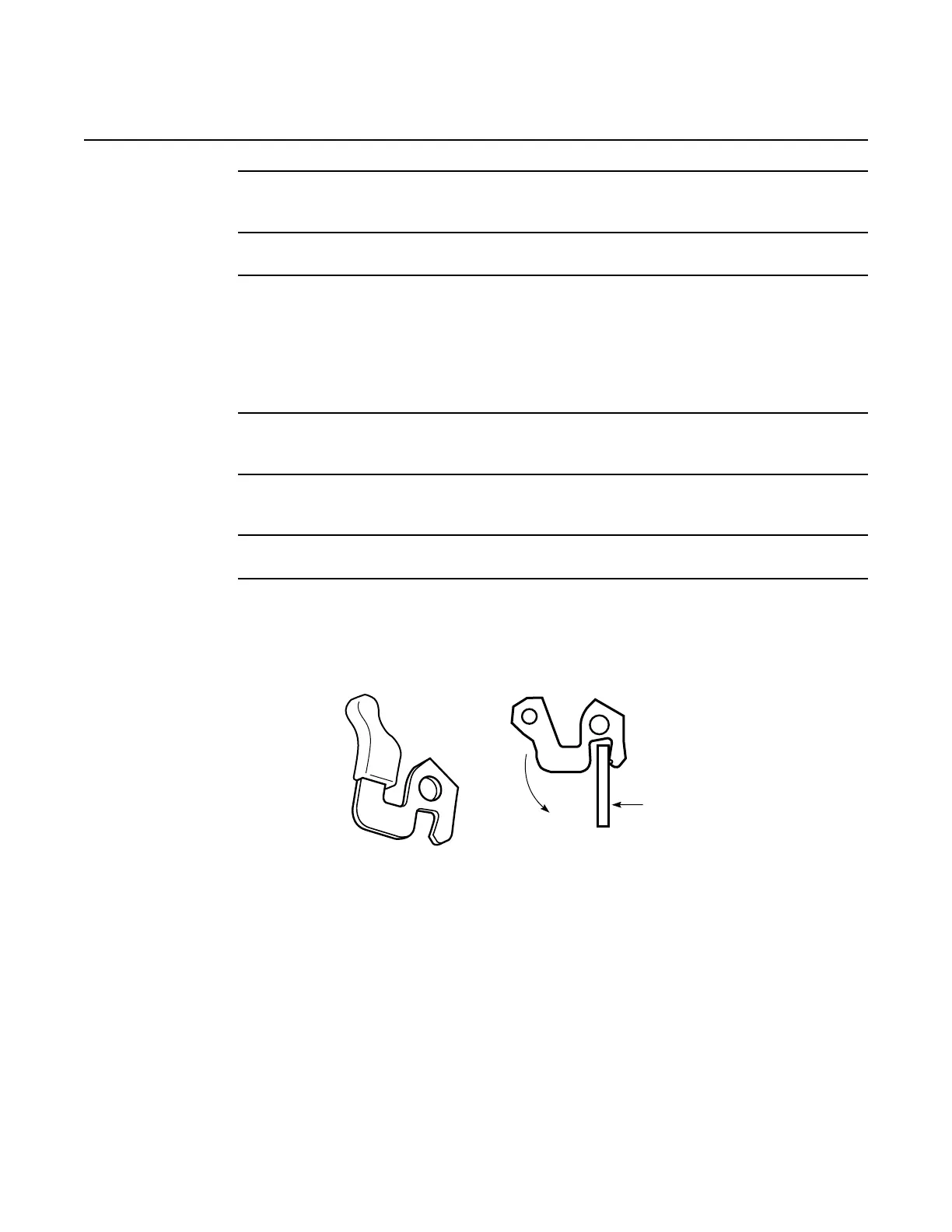

Figure 219 Ejector handles for LT cards
Withdrawl
Guiding plate
22376
