Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-4 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 351
DRAFT
18.5.3.2 Power cable routing and connection
The power cables are routed through the left side of the rack and can then be routed
to the power distribution terminal block located on the bottom of the shelf; see
Figure 196.

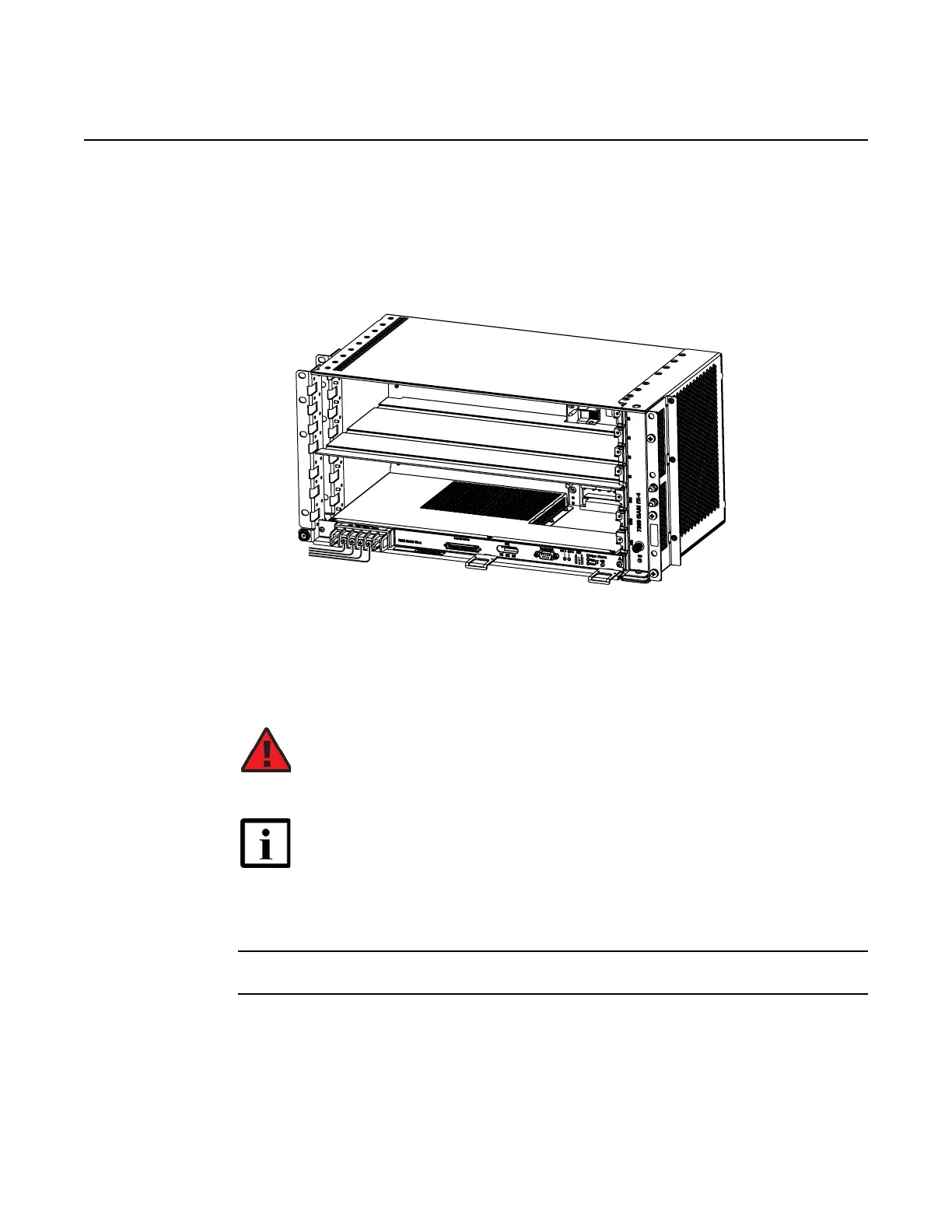

Figure 196 Power cable routing for 7360 ISAM FX-4
Procedure 77 To connect power cables
Use the following procedure to connect the power cables on the 7360 ISAM FX-4.
1 Ensure the power to the cables has been disconnected.
2 Loosen the screws on the safety cover and remove the safety cover; see Figure 197.
22395
Danger — Before connecting the power cables, make sure that the
power to the cables has been disconnected.
Note 1 — Power cables connect the PDF directly to the shelf.
Note 2 — All hardware shown in Figure 197 is provided with the
7360 ISAM FX-4.
Note 3 — Avoid sharp bends in cables. Use the proper bend radius
when installing cables.
