Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-4 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 337
DRAFT

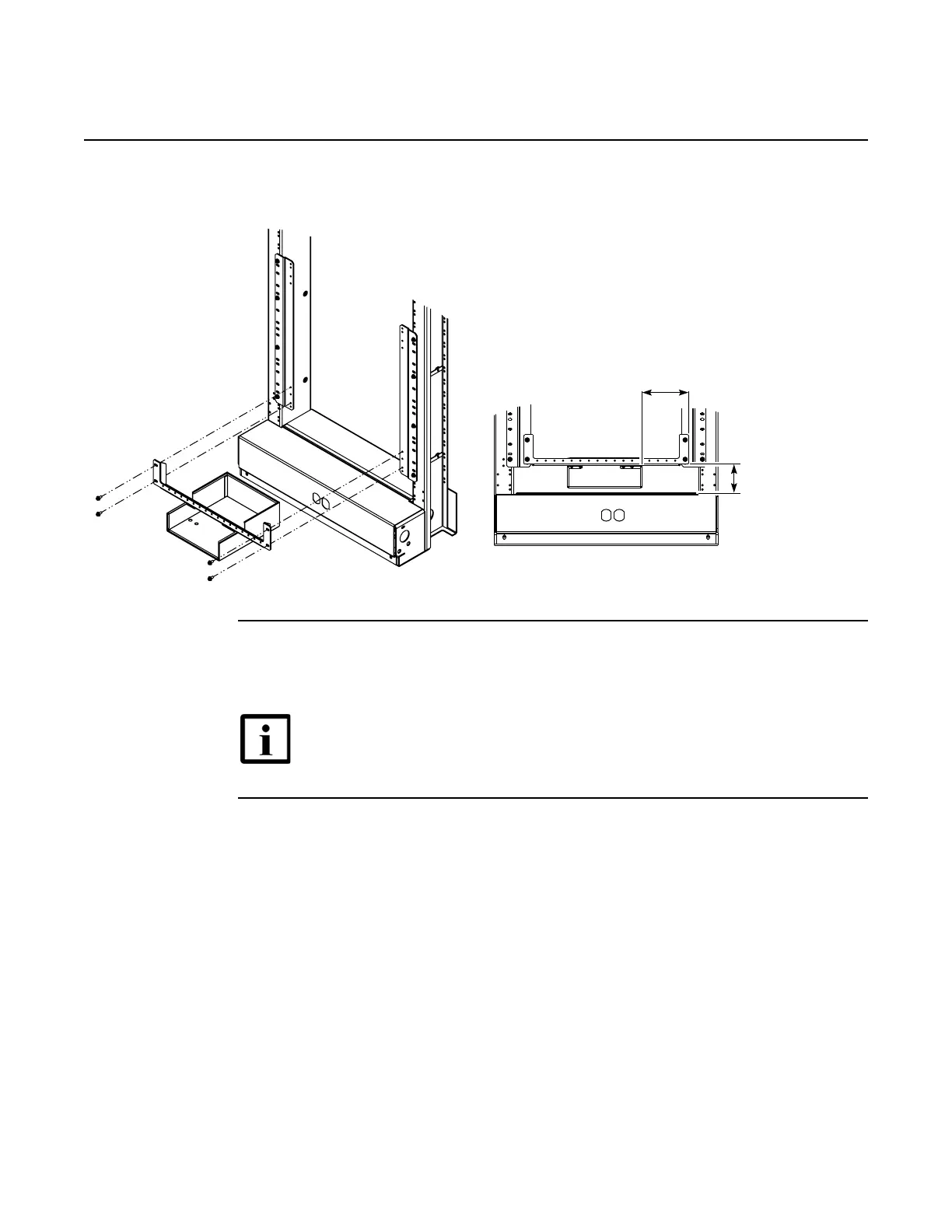

Figure 189 Mounting the 7360 ISAM FX-4 pre-assembled shelf mounting bracket and air intake
baffle/drip tray in a 23 i n. rack
7 Assemble the shelf using the vertical mounting kit pre-assembled parts as shown in the 19
in. vertical mounting procedures; see To mount the 7360 ISAM FX-4 shelf in vertically in a 19
in. rack.
8 Attach the bottom mounting bracket that was removed earlier to the shelf horizontal mounting
bracket and the air intake baffle/drip tray assembly using the 12-24 × 1/2 in. (12.7 mm)
screws. Ensure that the flange is facing down, and align the right side of the bracket to the
right side of the drip tray. See Figure 190
23578
(138.19)
(85.31)
Note — The procedure to assemble the vertical mounting kit is the same
for both 19 in.and 23 in. rack installations. Once the similar 19 in. install
procedure are complete, continue with step 8 below to complete the 23 in.
install procedure.
