Installing cards in the 7360 ISAM FX-12 shelf
206
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

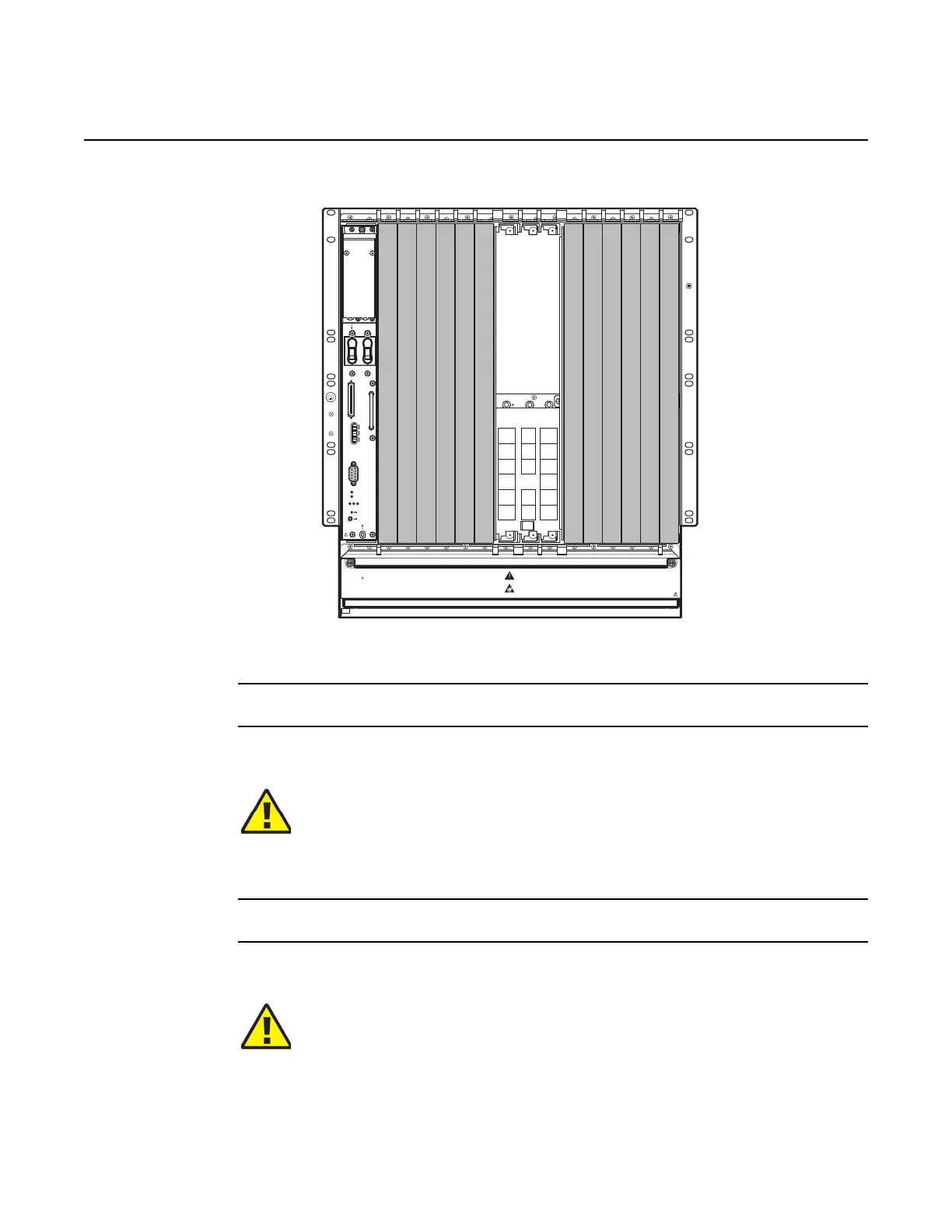

Figure 103 LT cards slots in 7360 ISAM FX-12
1 Locate the free LT card slots for mounting the LT cards; see Figure 103.
2 Remove the LT card from its ESD protective bag. Wear the antistatic wrist strap.
3 Ensure the insertion/extraction tabs on the card are in the unlocked position.
4 Slide the LT card in the appropriate LT card slot.
Caution — Risk of damage by ESD when card is not connected.
This card contains devices that are susceptible to damage caused by
ESD in unconnected circuit conditions.
Carefully follow ESD safety precautions.
Caution — When sliding the LT card into slot 1, special attention is
required so that the solder side of the LT card does not come into contact
with the EMC shielding plate adjacent to the LT card slot. If not done
properly, this may cause damage at the solder side of the LT card.
