Nokia 7360 Intelligent Services Access Manager FX Series - 12 Fiber Optic Cable Management in the 7360 ISAM FX-12; Fiber Management Bracket for 7360 ISAM FX-12; Fiber Management Guide for 7360 ISAM FX-12

Fiber optic cable management in the 7360 ISAM
FX-12 shelf
212
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

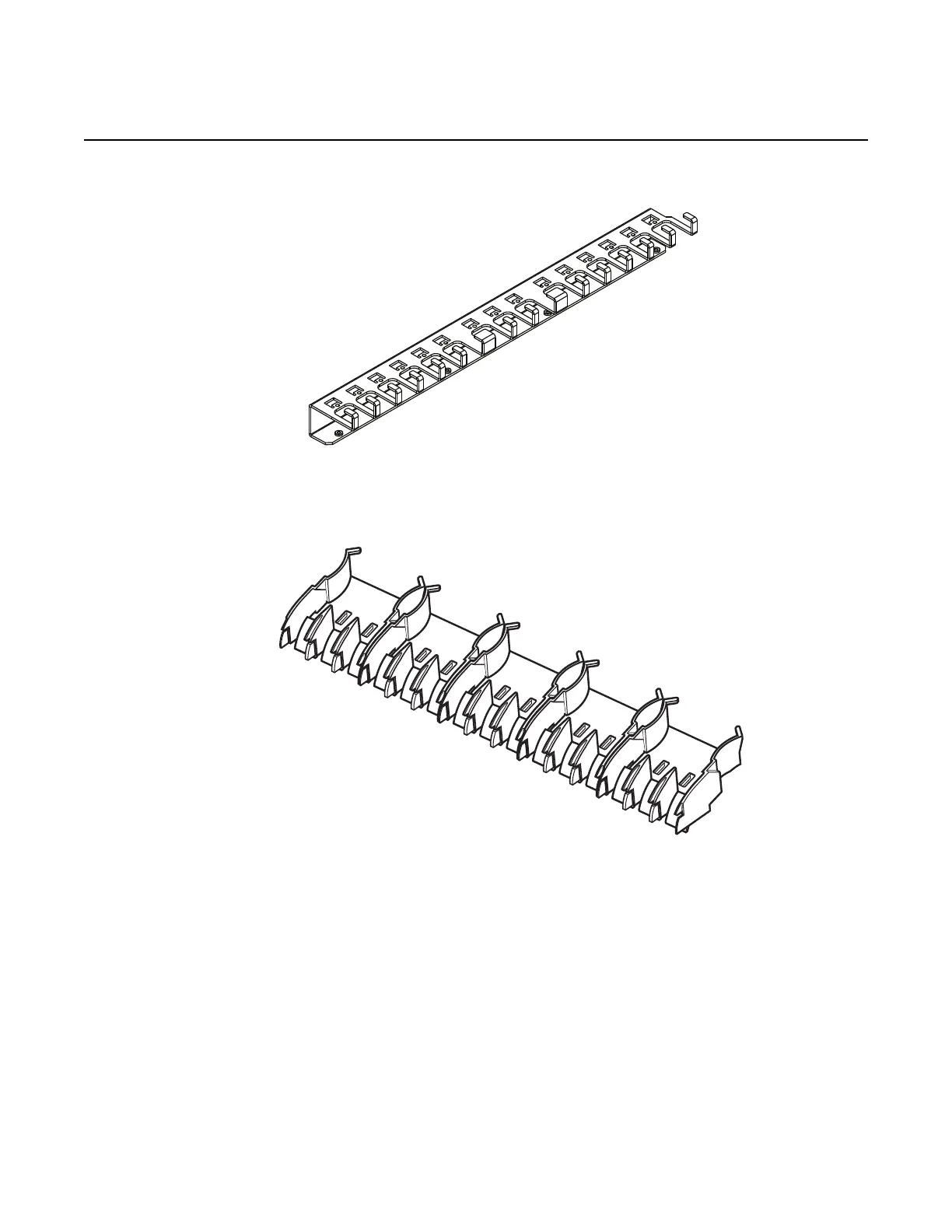

Figure 108 Fiber management bracket for 7360 ISAM FX-12
Figure 109 Fiber management guide for 7360 ISAM FX-12
Figure 110 shows a view of the upper baffle assembly for the 7360 ISAM FX-12 heat
and fiber baffle for vertical mount configurations.
