Installing cards in the 7360 ISAM WM shelf
428
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
Procedure 98 To install line cards
Each 7360 ISAM WM shelf can contain up to a maximum of 12 line cards. Proceed as follows to
install a 7360 ISAM WM line card:
1 Remove the line card from its ESD protective bag. Make sure to wear the antistatic wrist
strap.
2 Insert the line card in the available line card slot; see Figure 253.

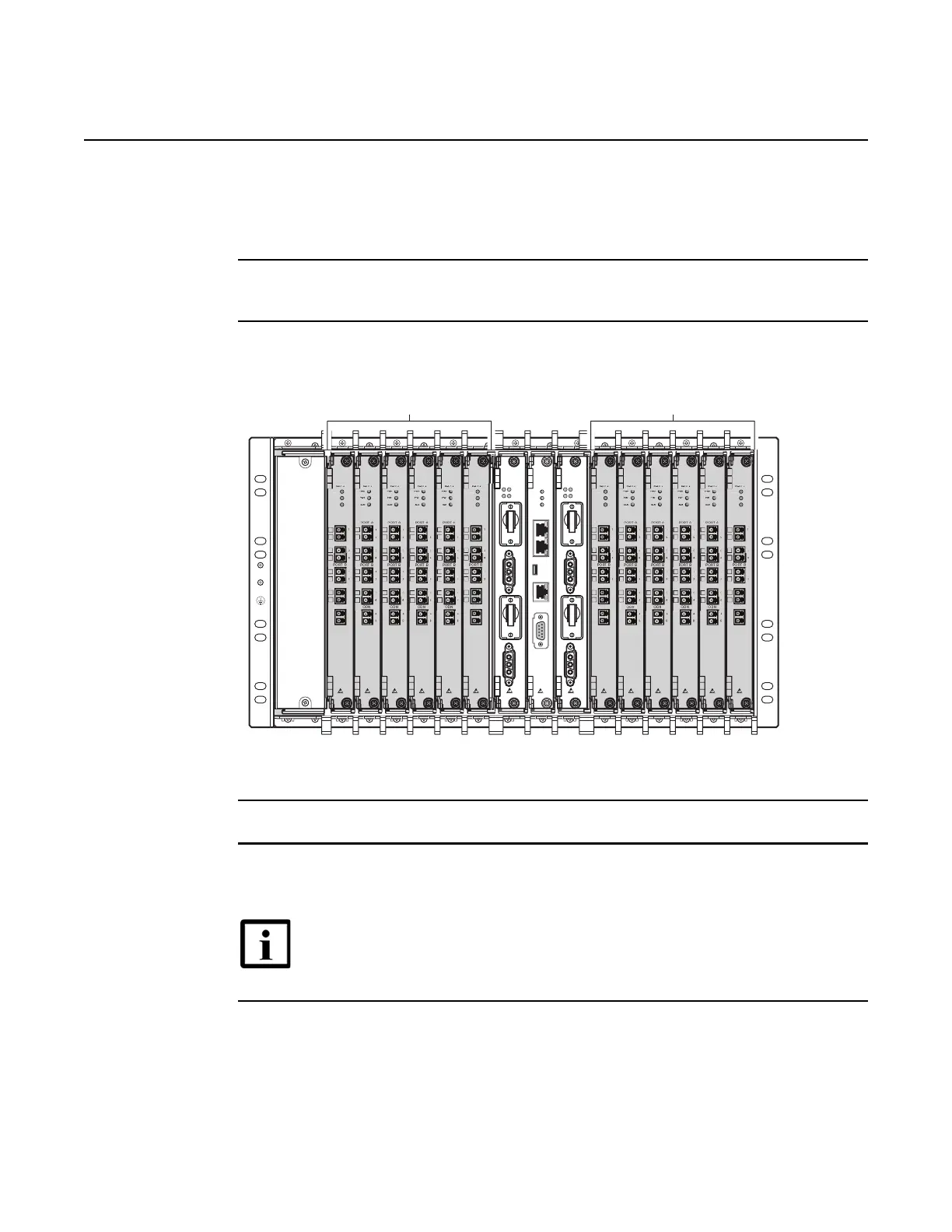

Figure 254 7360 ISAM WM line card slots
3 Use the ejector handles to engage the card connectors in the backplane, see Figure 252.
4 Lock the card in place with the fixation screws located at the top and bottom of the faceplate
of the card. The maximum torque is 0.3 Nm.
Note — Once the board is mounted in its slot, the green PWR LED lights
up.
25791
ALM
PW2
S1
PW1
PW2
S2
RUN
PW1
FWPC-A
ALM
PW2
S1
PW1
PW2
S2
RUN
PW1
FWPC-A
USB
COM
ALARM
ALM
PWR
RUN
FWCC-A
GE1
GE2
1
2
3
4
A
B
PORT A
ODN
ALM
PWR
PW1
1
2
3
4
A
B
PORT A
ODN
ALM
PWR
PW1
1
2
3
4
A
B
PORT A
ODN
ALM
PWR
PW1
1
2
3
4
A
B
PORT A
ODN
ALM
PWR
PW1
1
2
3
4
A
B
P
ORT A
O
D
N
ALM
PWR
PW1
1
2
3
4
A
B
PORT A
O
DN
ALM
PWR
PW1
1
2
3
4
A
B
P
ORT
A
O
D
N
ALM
PWR
PW1
1
2
3
4
A
B
PORT
A
O
D
N
ALM
PWR
PW1
LC01-LC06 LC07-LC12
