Nokia 7360 Intelligent Services Access Manager FX Series User Manual

7360 ISAM WM shelf cabling
410
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
22.5 Power Cable
The 7360 ISAM WM shelf operates with nominal voltage levels of −48 V dc as well
as − 60 V dc supplied by the 7360 ISAM WM power card. This power card is
connected to the power terminals of either the 7360 ISAM FX-16, 7360 ISAM FX-8,
or 7360 ISAM FX-4 shelf through a power cable.
22.5.1 Power card and power cable routing
The 7360 ISAM WM shelf is only mechanical equipment, and must be used in
conjunction with the 7360 ISAM WM power card (FWPC-A), which provides the
entire 7360 ISAM WM shelf with power.
The 7360 ISAM WM power card is inserted in the middle of the 7360 ISAM WM
shelf; see Figure 236. Two 7360 ISAM WM power cards can be used to provide
power redundancy.

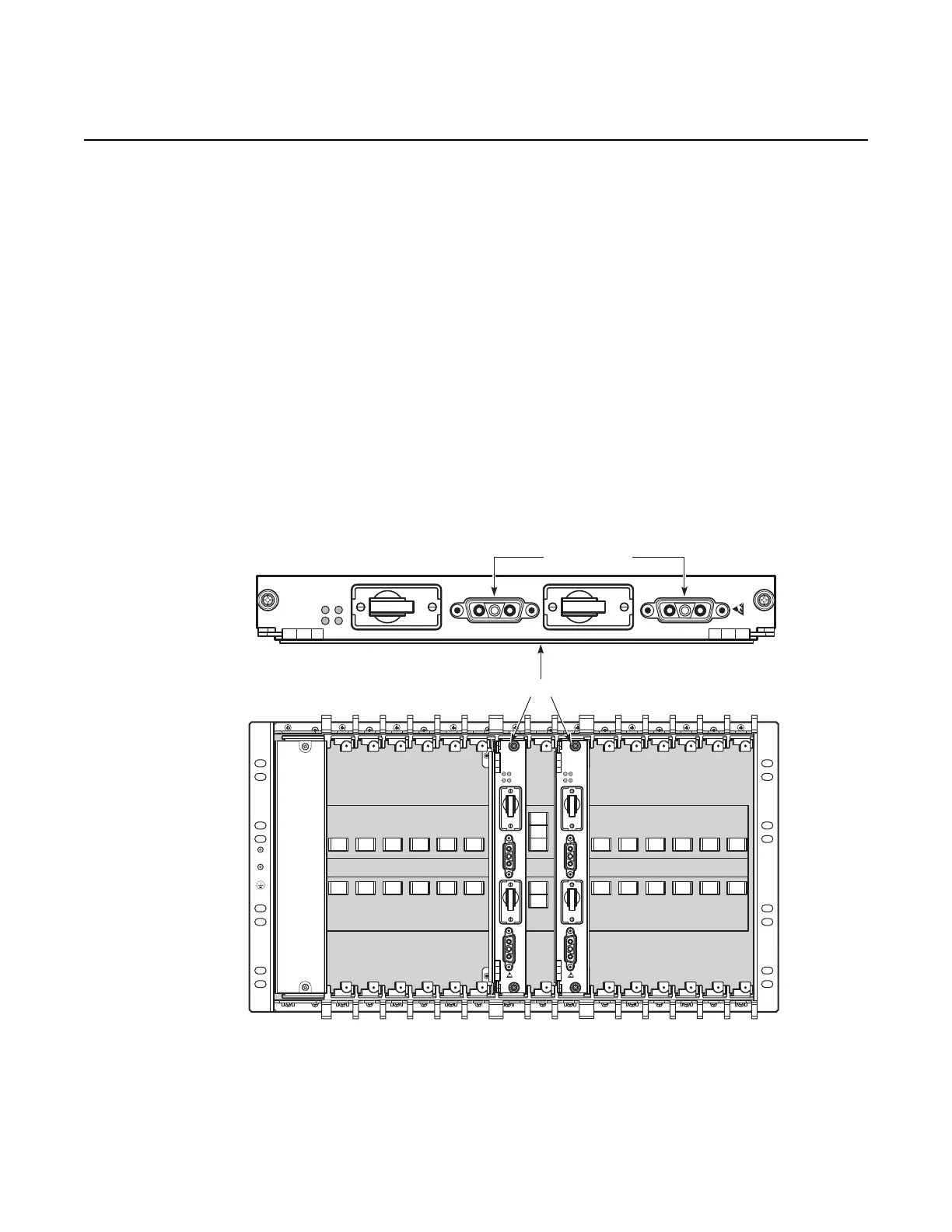

Figure 236 Power distribution on the 7360 ISAM WM shelf
25783
ALM
PW2
S1
PW1
PW2
S2
RUN
PW1
FWPC-A
ALM
PW2
S1
PW1
PW2
S2
RUN
PW1
FWPC-A
ALM PW2
S1
PW1
PW2
S2
RUN
PW1
FWPC-A
FWPC-A
Power Interface
