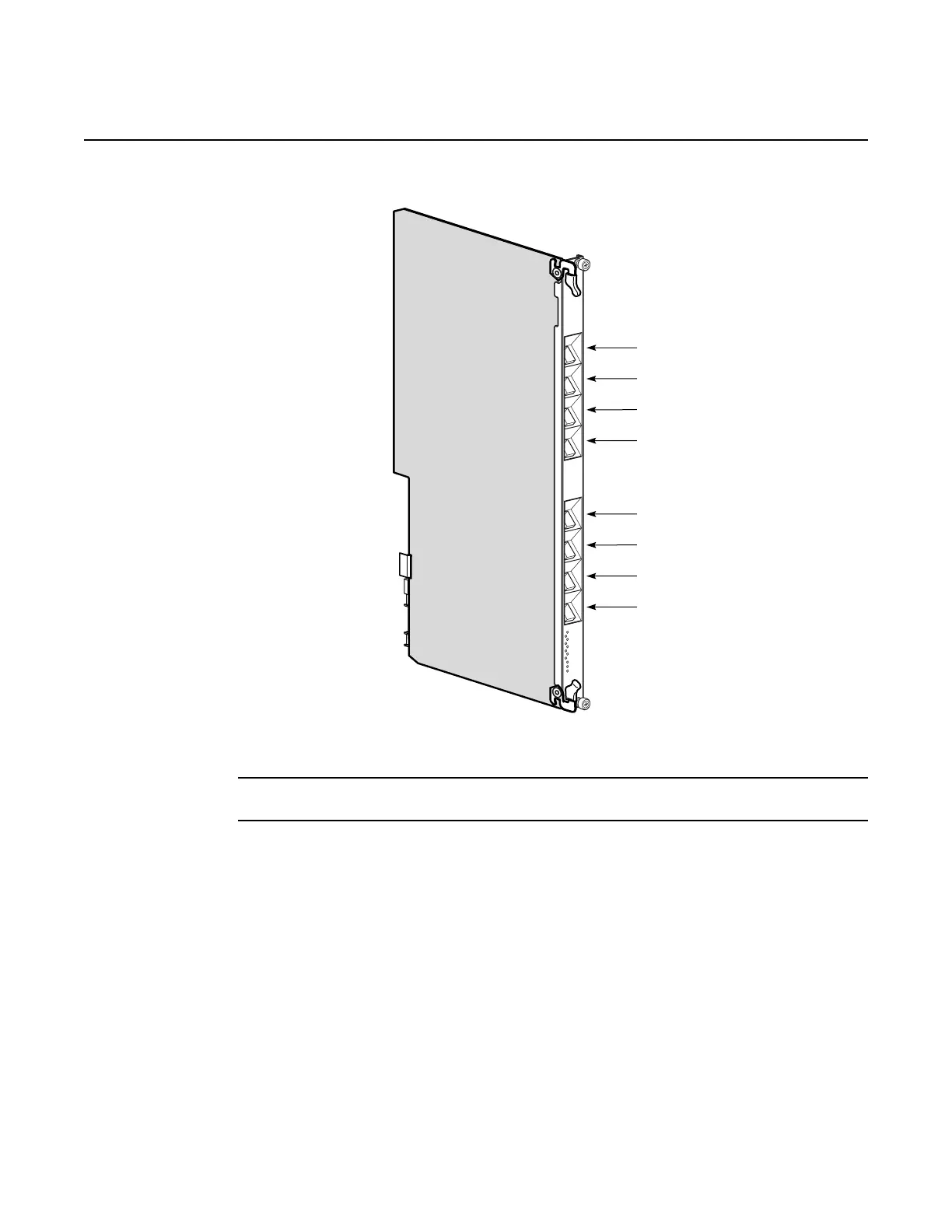

Figure 148 VL ports on the NDPS-B
4 Remove the dust covers from the VL ports identified in step 3.
5 Connect a VL cable of appropriate length to a VL port on the NDPS-B card by removing the
cap from the cable connector and inserting the cable connector into the VL port; see
Figure 149.
24286
FP
L
T
-A
VL
1
2
3
4
5
6
7
PWR
A
CT
ALM
8
VL 1
VL 2
VL 3
VL 4
VL 5
VL 6
VL 7
VL 8
