Nokia 7360 Intelligent Services Access Manager FX Series - Figure 131 Mounting the 7360 ISAM FX-8 Rack Adapter Brackets to a 23 In. Rack

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-8 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 249
DRAFT
5 Attach the rack adapter brackets to the shelf using 12-24 × 1/2 in. (12.7 mm) screws as
shown in Figure 131.

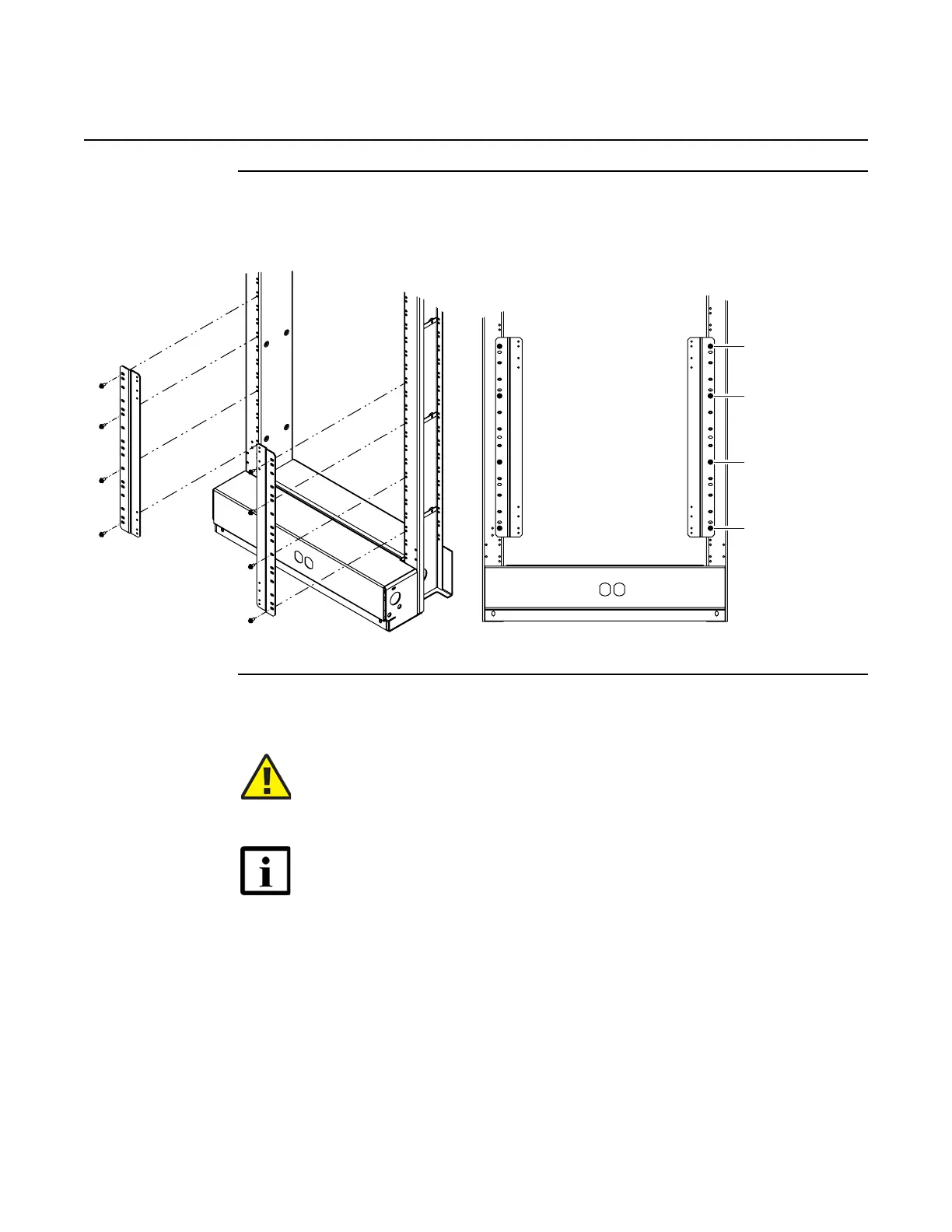

Figure 131 Mounting the 7360 ISAM FX-8 rack adapter brackets to a 23 in. rack
6 Install the pre-assembled shelf horizontal mounting bracket and air intake baffle/drip tray
onto the bottom of the 23 in. rack as shown in Figure 132.
590.9
279.8
102.0
0.0
23351
Caution — The pre-assembled shelf mounting bracket and air intake
baffle/drip tray is required in the bottom position of each installed
7360 ISAM FX-8 shelf in a rack.
Note — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the air intake/drip tray assembly to the rack.
