Fiber optic cable management in the
7360 ISAM WM shelf
436
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
2 Push down on the pre-assembled fiber management bracket and slide it forward onto the
finger guides of the cable management bracket on the shelf until it locks into place; see
Figure 259.

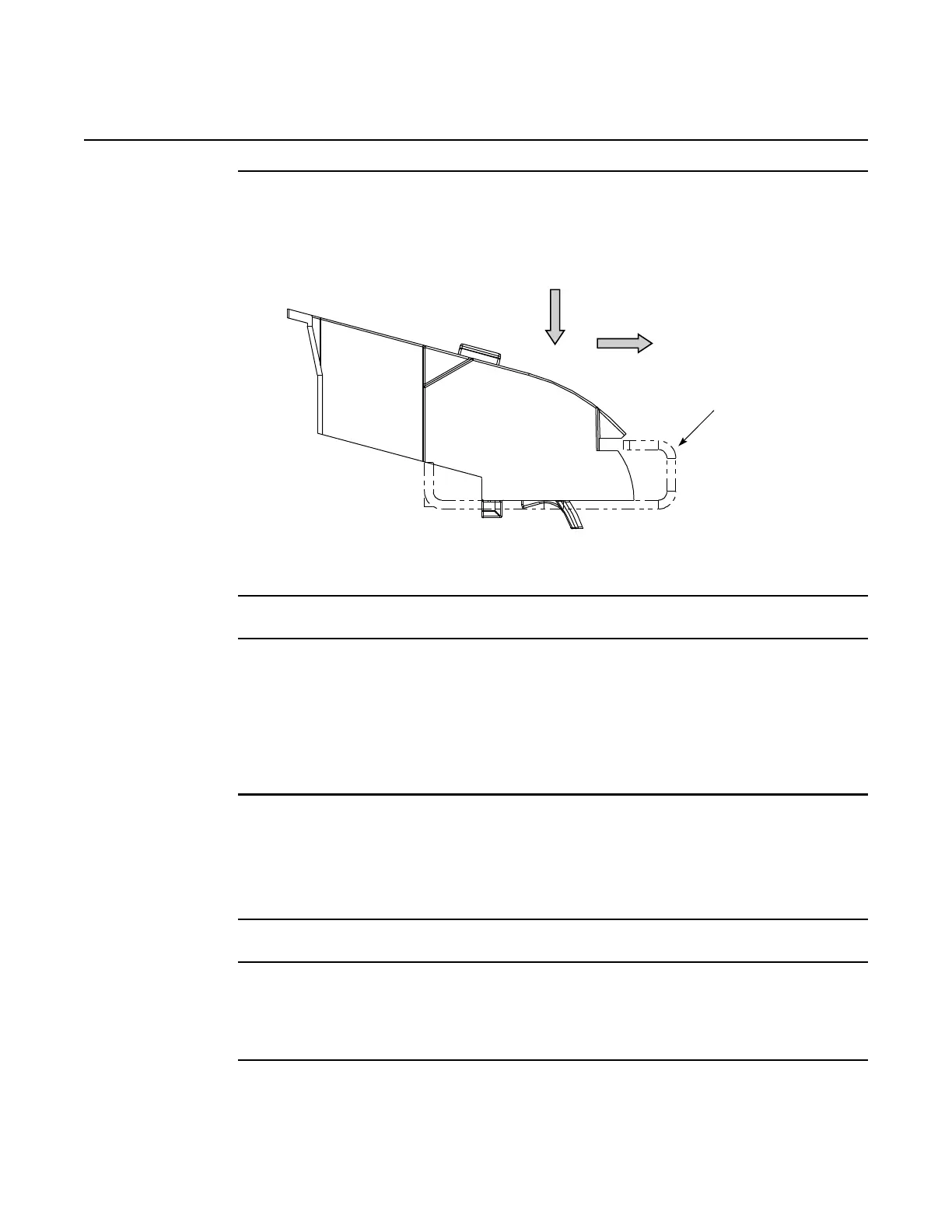

Figure 259 Mount the 7360 ISAM WM fiber management guide
3 STOP. This procedure is complete.
Procedure 101 To route fiber cables to line cards
Use the following procedure to route and connect 7360 ISAM WM fiber cables to 7360 ISAM WM
line cards.
1 To route fiber cables to line cards, proceed as follows:
a If routing fiber cables using a fiber management guide, mount the fiber management
guide. See Procedure 100.
b If routing fiber cables without using a fiber management guide, continue to step 2.
2 Prepare fiber optic cables for the equipped line cards.
3 Label both ends of each cable with the following information, for future identification:
• card connection name
• Tx or Rx, depending on which port is used for the connection
4 Route the fiber cables from the source to the top of the rack.
To Next Page
