Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing a 7360 ISAM FX-8 shelf
234
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

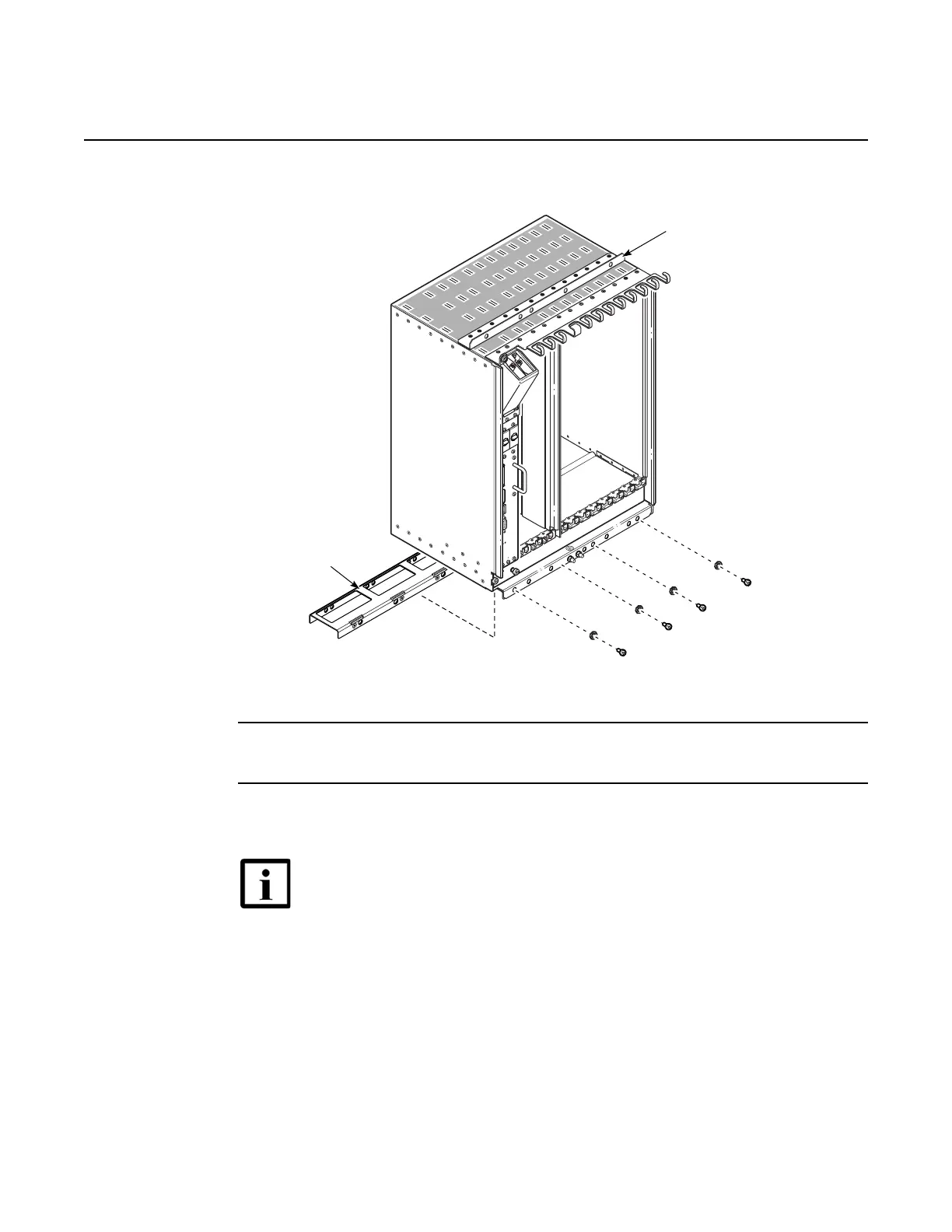

Figure 120 Location of 7360 ISAM FX-8 top mounting bracket
7 Remove the bottom mounting bracket, screws, and washers and retain them to re-install
later.
8 Attach the pre-assembled skirts and mounting bracket to the shelf using the M3 × 8mm
screws as shown in Figure 121.
Note — Torque the mounting bracket screws to 4.3 in. to 6.3 in. per lbs
after placing the skirt assembly onto the shelf.
23562
Top mounting
bracket
Bottom mounting
bracket
7360 ISAM FX-8
N
TIO
NTB
01
02
03
04
05
06
07
08
N
T
A
FAN
7360 ISAM FX-8
Alarm
B-40A
T
Critical
Major
