Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing cards in the 7360 ISAM FX-16 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 127
DRAFT
7.3.1 NT dummy front panel
A dummy front panel must be used when the second NT card is not installed.

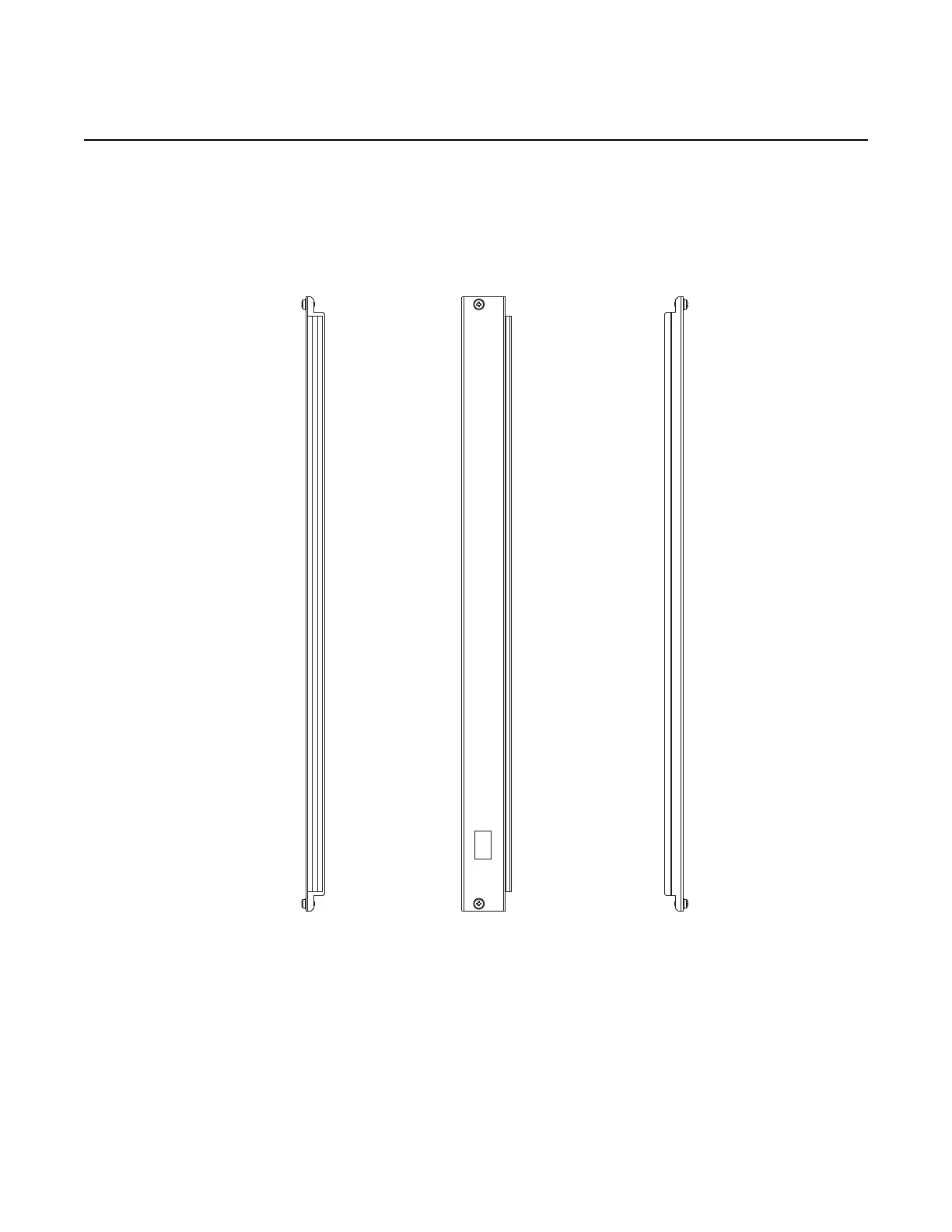

Figure 53 shows the dummy front panel for NT card slots.
Figure 53 Dummy front panel for NT card
7.3.2 NTIO dummy front panel
A dummy front panel must be used when the NTIO card is not installed. Figure 54
shows one example of a dummy front panel for NTIO card slots.
22197
XX XX XX
XXXXXXX
