Nokia 7360 Intelligent Services Access Manager FX Series - Figure 118 Vertical Mounting Locations in a 19 In. Rack for the 7360 ISAM FX-8

Installing a 7360 ISAM FX-8 shelf
232
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

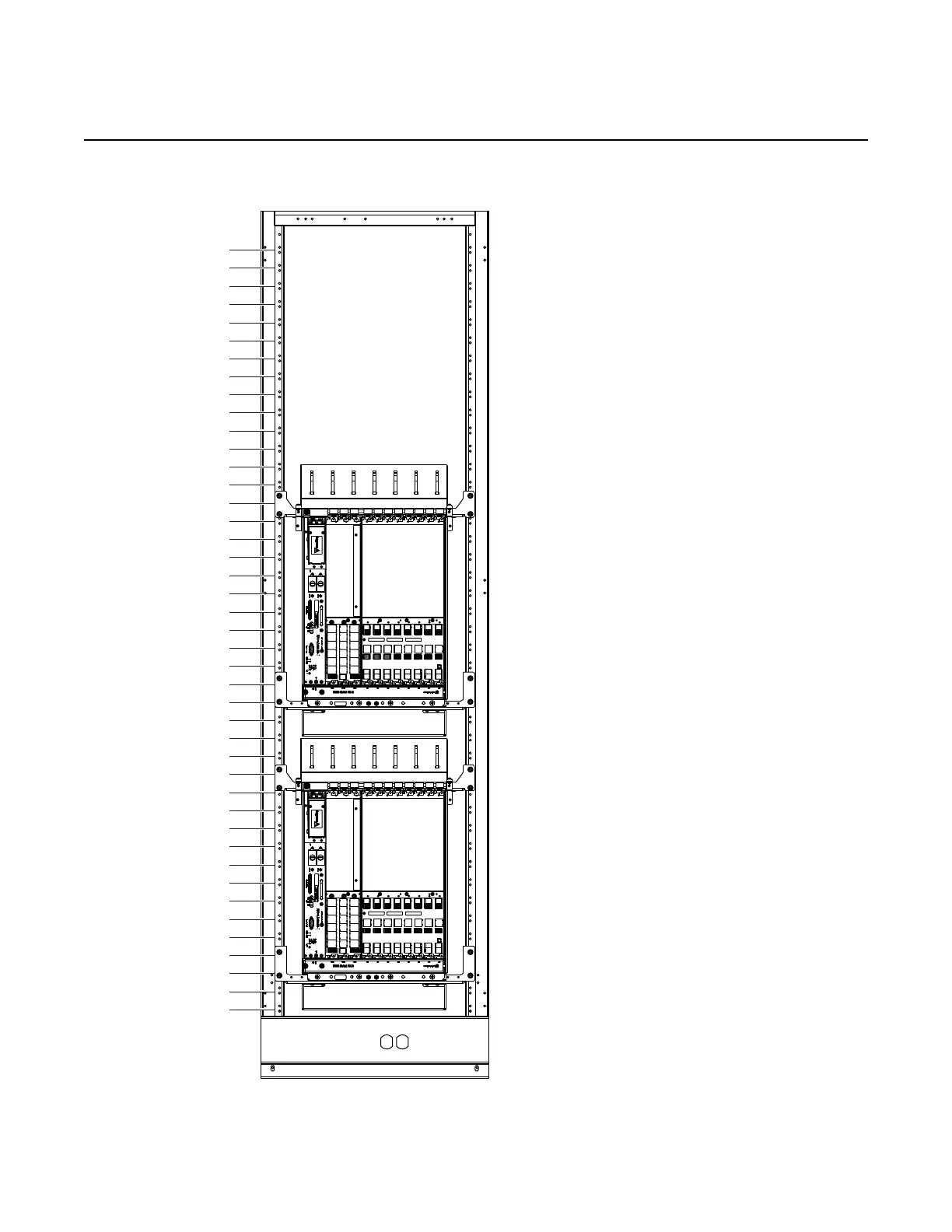

Figure 118 Vertical mounting locations in a 19 in. rack for the 7360 ISAM FX-8
