ANSI Hardware Installation Manual Installing a 7360 ISAM FX-8 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 251
DRAFT

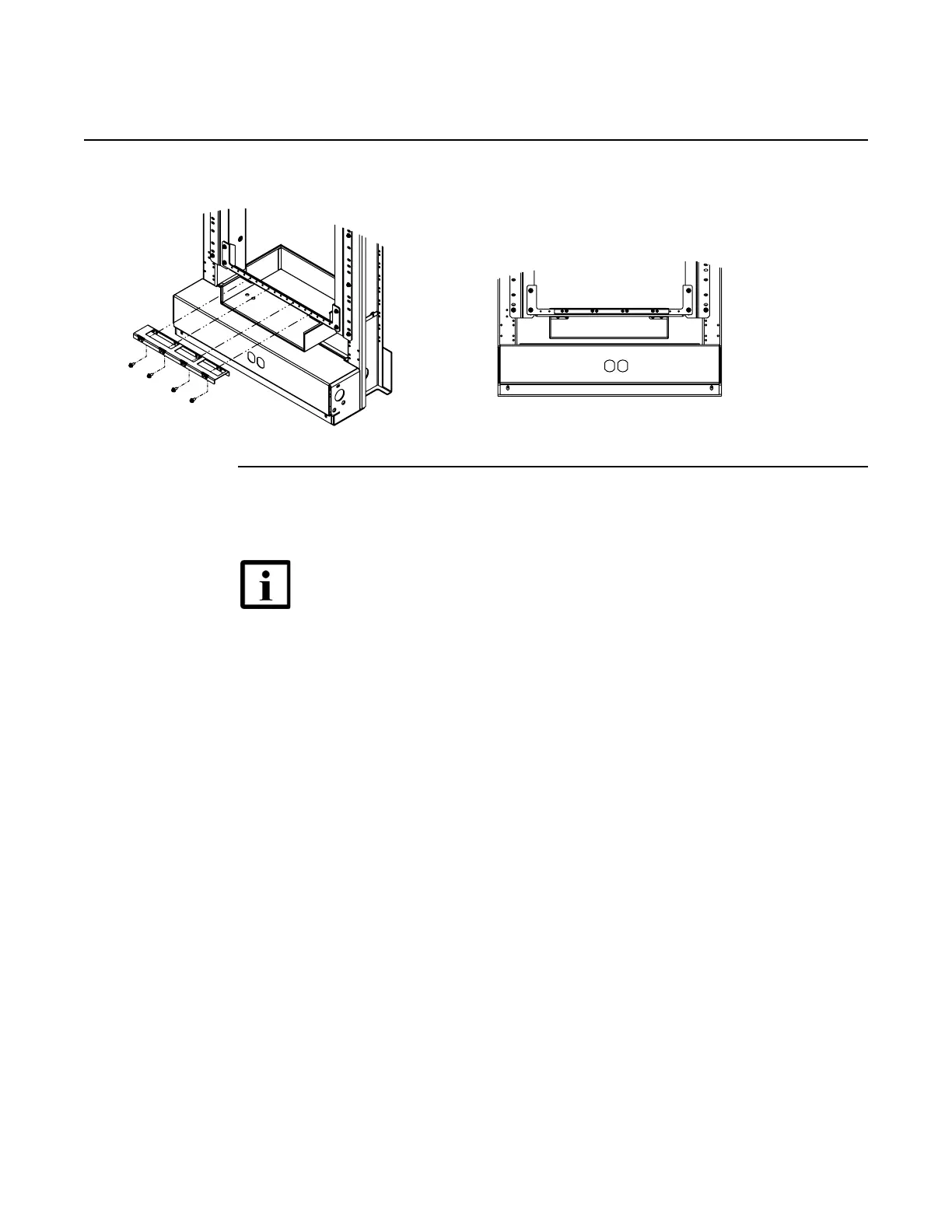

Figure 133 Attaching the 7360 ISAM FX-8 bottom mounting bracket in a 23 in. rack
9 Attach the shelf assembly above the air intake/drip tray assembly and onto the bottom
mounting bracket using the 12-24 × 1/2 in. (12.7 mm) screws and the screws and washers
that were removed in an earlier step, as shown Figure 134.
Note 1 — Removing the bottom mounting bracket from the shelf in
previous steps allows the screws to be easily attached to the recessed
flange on the bottom of the shelf in this step.
Note 2 — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the shelf assembly to the rack.
