Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-8 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 273
DRAFT

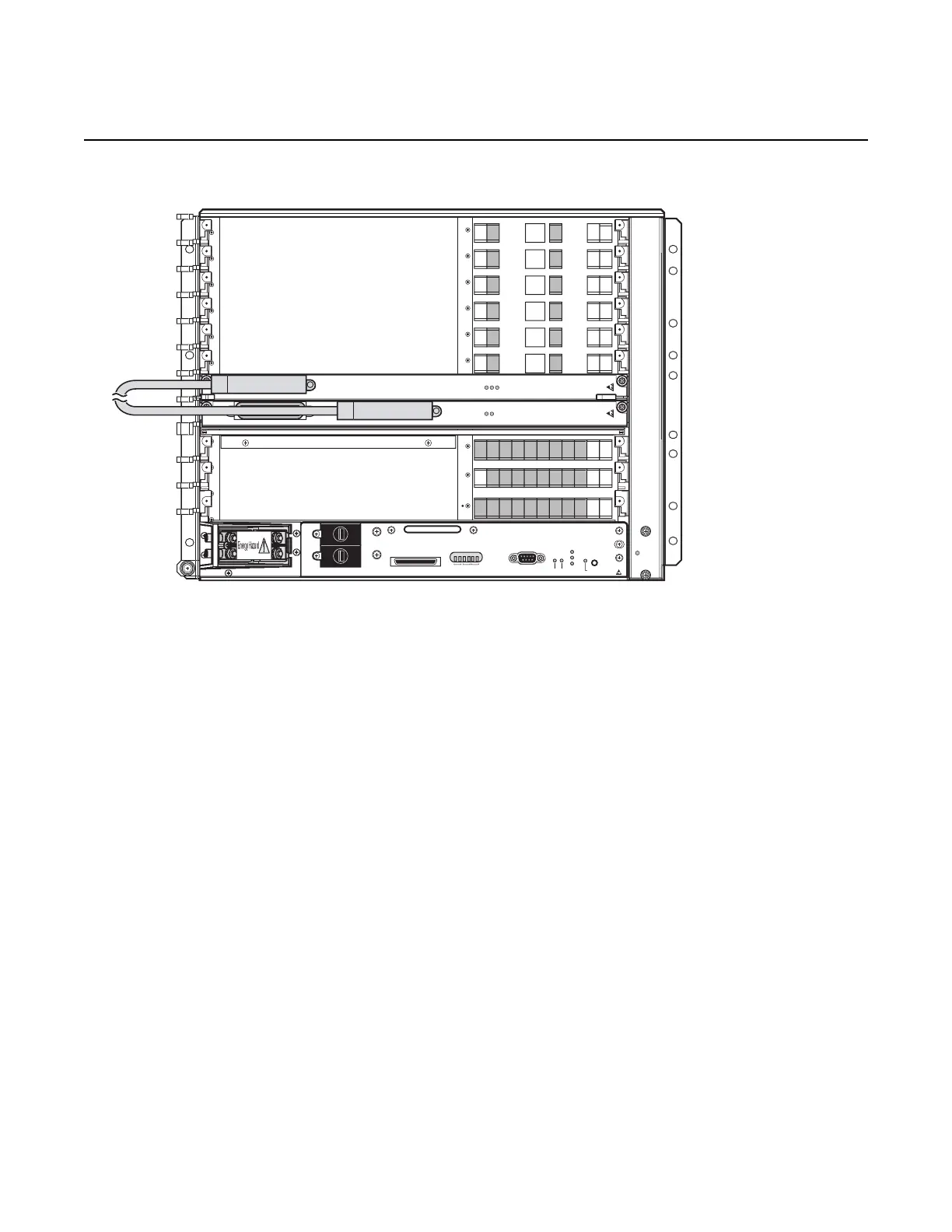

Figure 144 Combo cable connection on 7360 ISAM FX-8
14.11 POTS and LINE MDF cable connector
This section describes the procedures to install MDF cables (xDSL and POTS)
between the 7360 ISAM FX-8 and the Main Distribution Frame (MDF).
14.11.1 MDF cable type
The following cables can be used:
• for 24-line and 48-line cards: an MDF cable with two bundles of 24-pair cables and
one CHAMP100 connector; see Figure 145.
TOD/IHZ
23893
FAN
NTA
NTIO NTB 01 02 03 04 05 06 07 08
7360 ISAM FX-8
Energy Hazard
Critical
Alarms
ACO
BAT A
Remote Craft
BITS
External Alarms
Major
Minor
BAT B
7360 ISAM FX-8
B-40A
A-40A
NTA GND NTB
xDSL
PWR ALM MAJ
POTS LINE
PWR
ALM
