Nokia 7360 Intelligent Services Access Manager FX Series User Manual

7360 ISAM FX-12 shelf cabling
182
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
10.10.1 Cable type
The required cable is an MDF cable with two CHAMP100 connectors; see Figure 86.

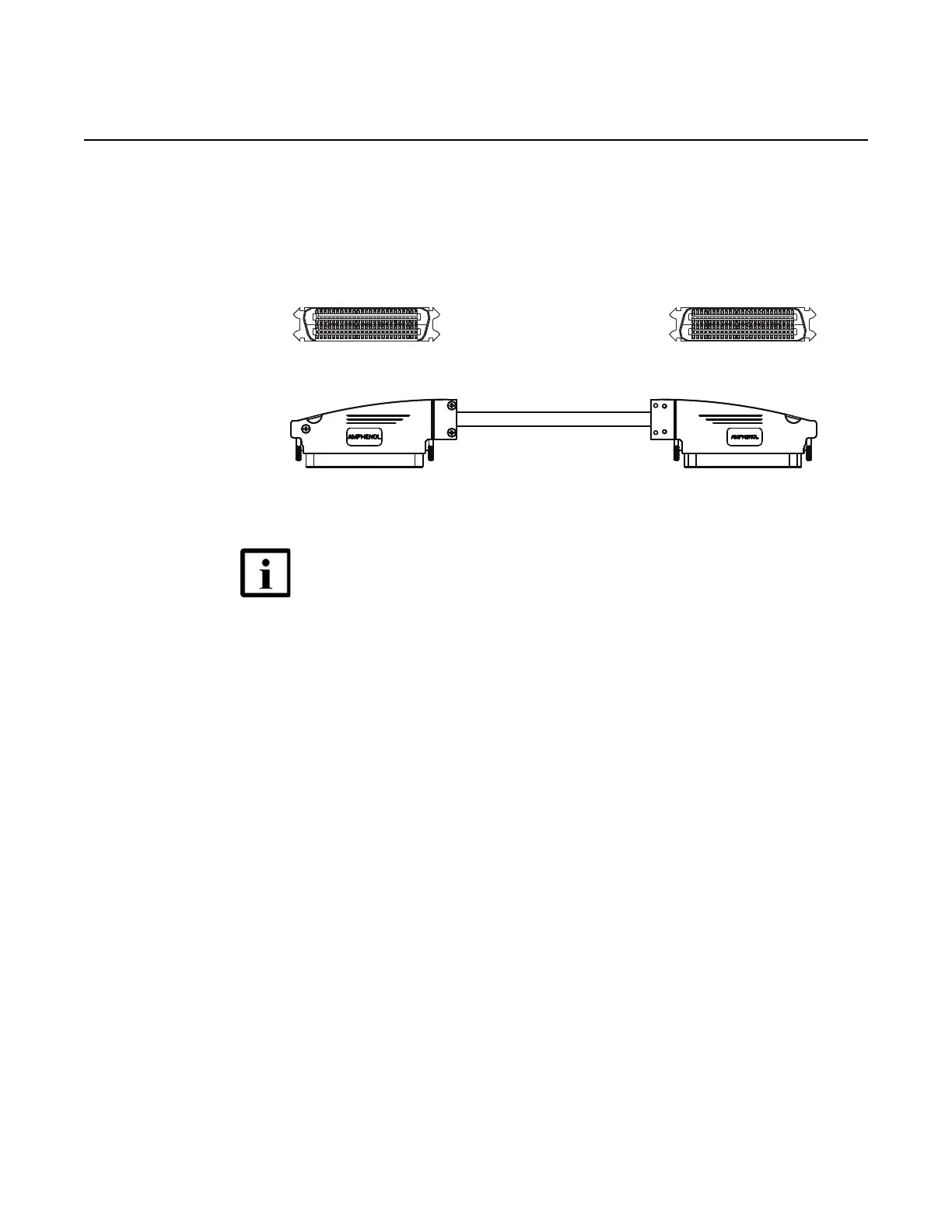

Figure 86 Combo cable
10.10.2 Connection/locking
The cable is plugged into the connectors on the LT card and the splitter card and are
locked in place with baillocks.
10.10.3 Cabling
The combo cable must be connected between the voice LT card and the splitter card
in the 7360 ISAM FX-12. The excess cable length must be routed to the left side in
the rack, see Figure 87.
Note — See Appendix 25 for the pinning of the CHAMP100
connectors.
Front view
Connector A
125
76 100
Front view
Connector B
100 76
25 1
No3454
