Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Fiber optic cable management in the
7360 ISAM FX-16 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 147
DRAFT

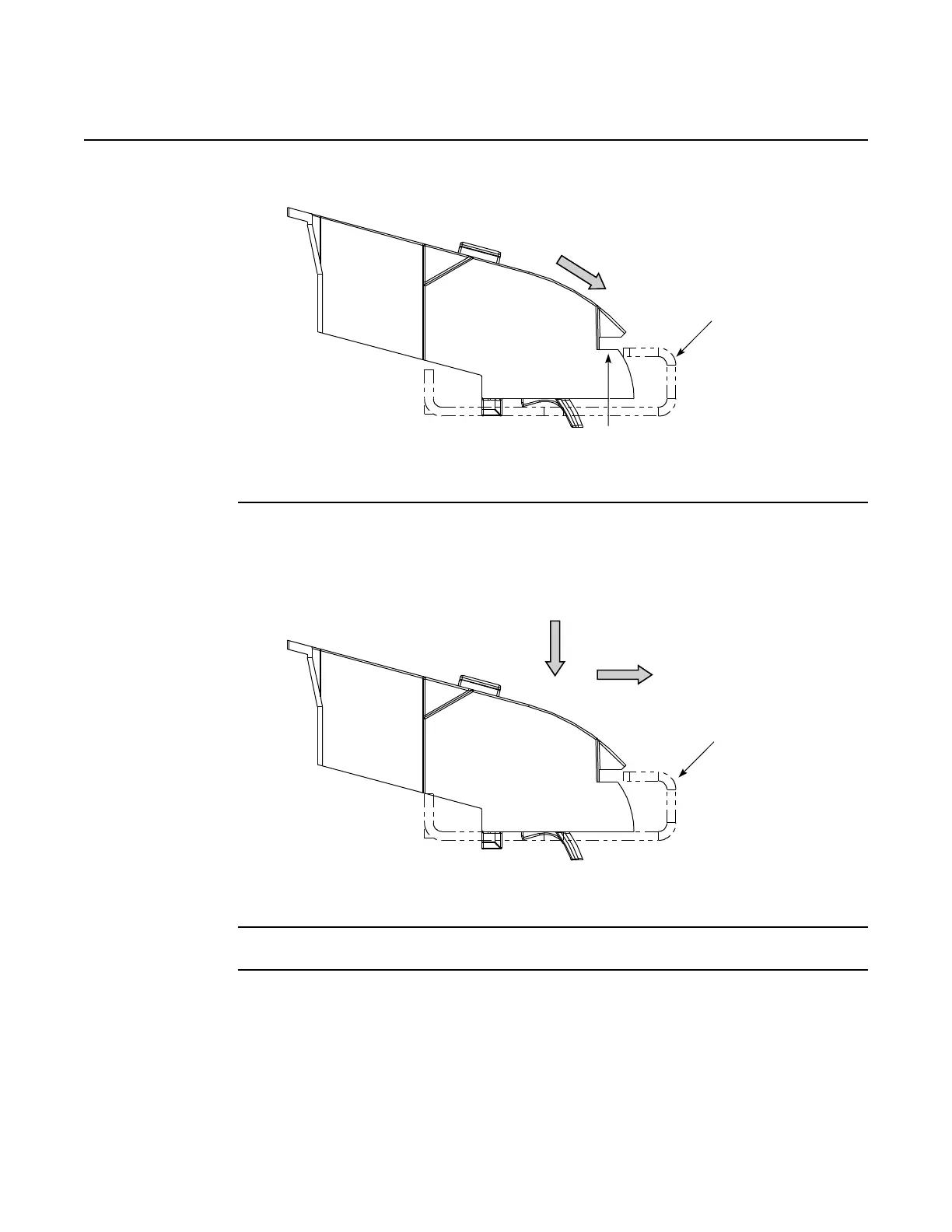

Figure 69 Alignment of 7360 ISAM FX-16 fiber management guide
3 Push down on the pre-assembled fiber management bracket and slide it forward onto the
finger guides of the cable management bracket on the shelf until it locks into place; see
Figure 70.
Figure 70 Mount the 7360 ISAM FX-16 fiber management guide
4 STOP. This procedure is complete.
Notch
Finger guide
22203
Finger guide
22204
