Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing a 7360 ISAM WM shelf
Issue: 09 3HH-12893-AAAA-TCZZA 401
DRAFT

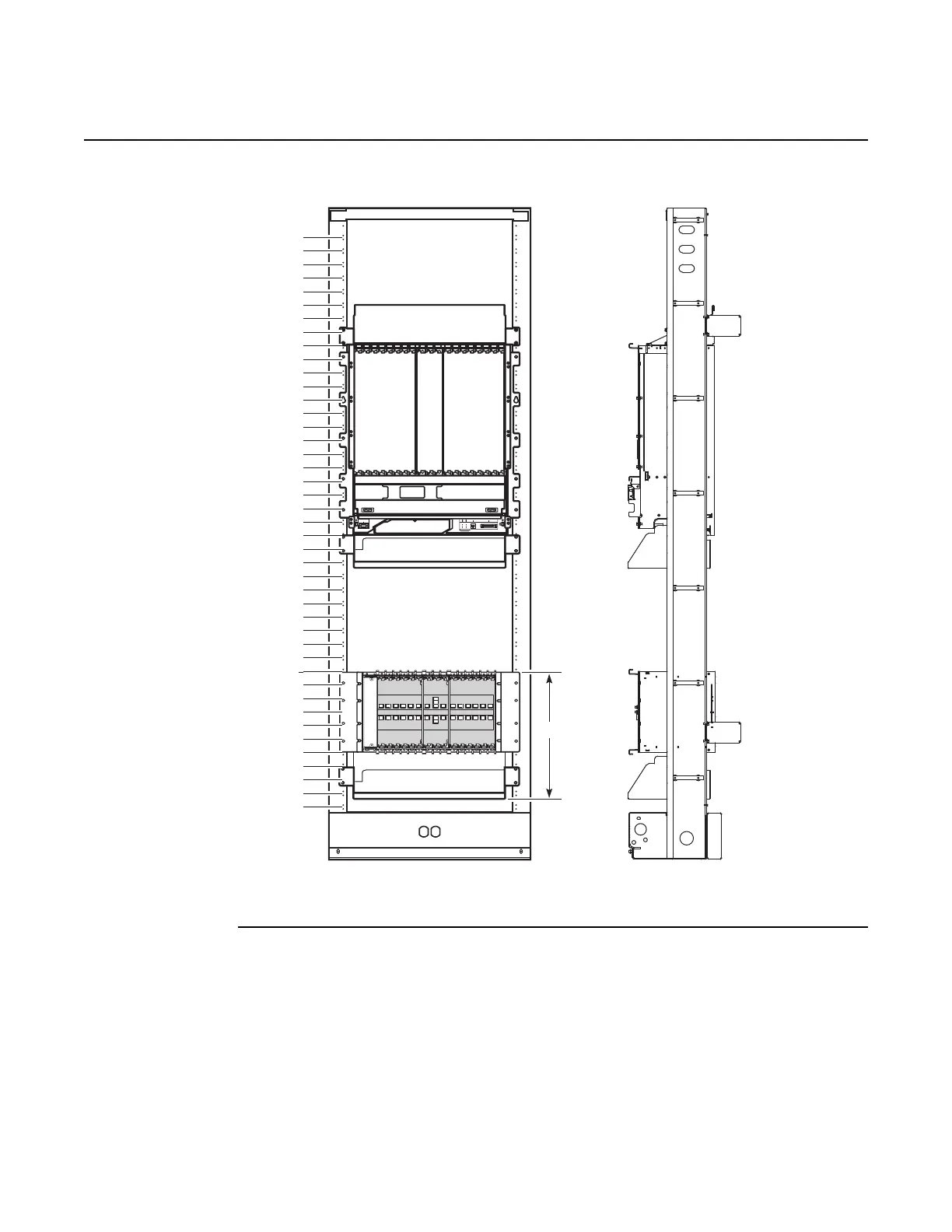

Figure 232 Mounting a 7360 ISAM WM in a 23 in. rack
5 Attach the left and right shelf mounting brackets to the 7360 ISAM WM shelf using the eight
M6 x 16 mm pan head screws and lock washers provided with the mounting kit.
BITS INTERFACE
TIME OF DAY
1 Hz-PULSE
NT-A NT-B
RING
TIP
FRAME GND
CO ALARMS
CRAFT PORT
25786
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
10 RU
