Nokia 7360 Intelligent Services Access Manager FX Series User Manual

7360 ISAM FX-8 shelf cabling
280
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

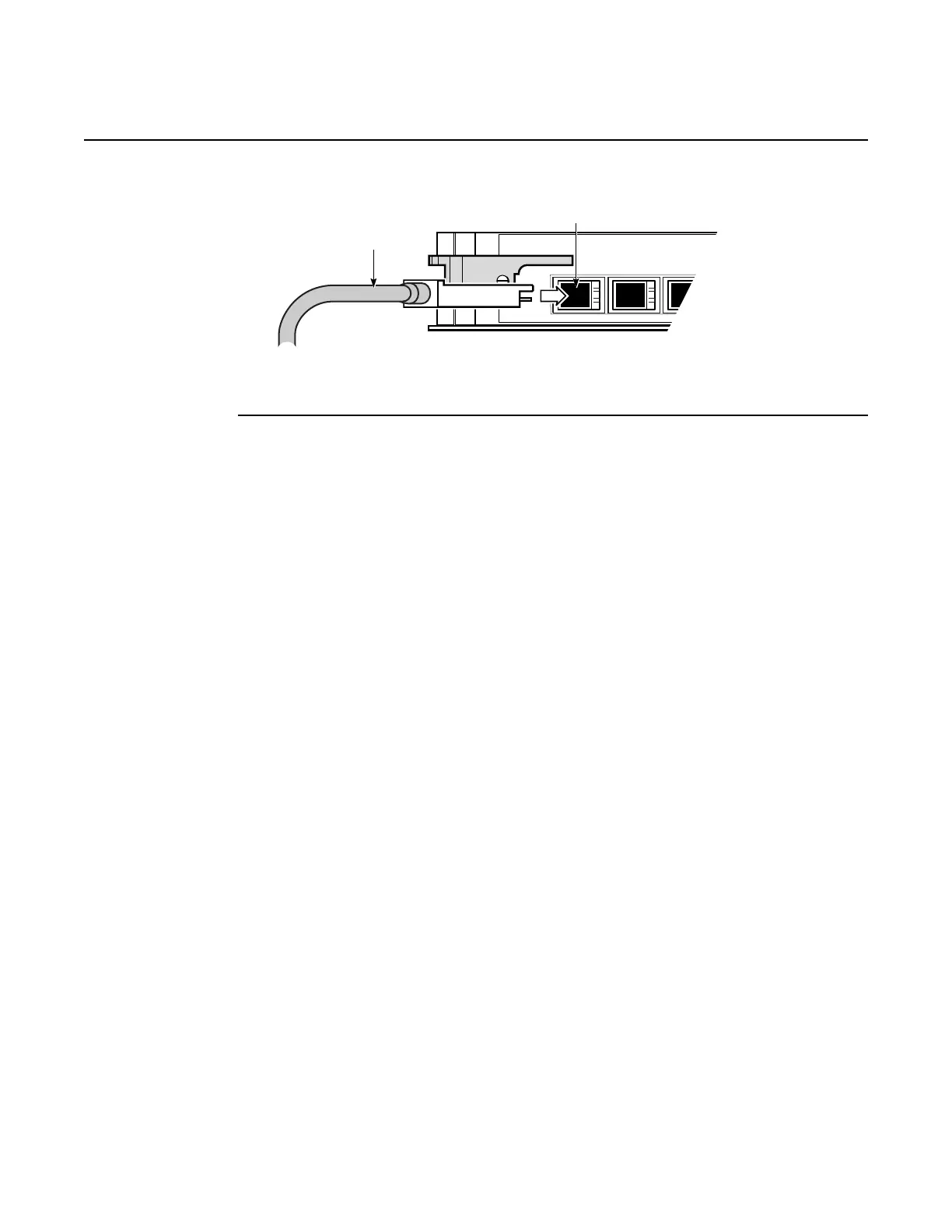

Figure 149 Inserting the cable connector into a VL port on the NDPS-B card
6 Route the VL cable through the appropriate cable exit area of the shelf; see Figure 150 for
the VL cable exit areas:
• for a vertically mounted shelf (cards oriented vertically):
• for a VL cable connected to ports VL1 though VL4 on the NDPS-B card, route the cable
straight up through the cable exit area above the NDPS-B card
• for a VL cable connected to ports VL5 though VL8 on the NDPS-B card, route the cable
up and then towards the PWIO-B card so that the VL cable exists the shelf above PWIO-
B card
• for a horizontally mounted shelf (cards oriented horizontally):
• for a VL cable connected to ports VL1 though VL4 on the NDPS-B card, route the cable
straight to left through the cable exit area to the left of the VIPR-B card
• for a VL cable connected to ports VL5 though VL8 on the NDPS-B card, route the cable
towards the left and then up towards the PWIO-B card so that the VL cable exists the
shelf at the left side of the PWIO-B card
23722
VL2VL1
VL cable
VL port
