ANSI Hardware Installation Manual 7360 ISAM FX-12 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 181
DRAFT
10.8 ToD/PPS connector
The 7360 ISAM FX-12 requires an RJ-45 connector cable for the Time of Day and
PPS signal connection located on the NT card. See Figure 85 for the location of the
connector.

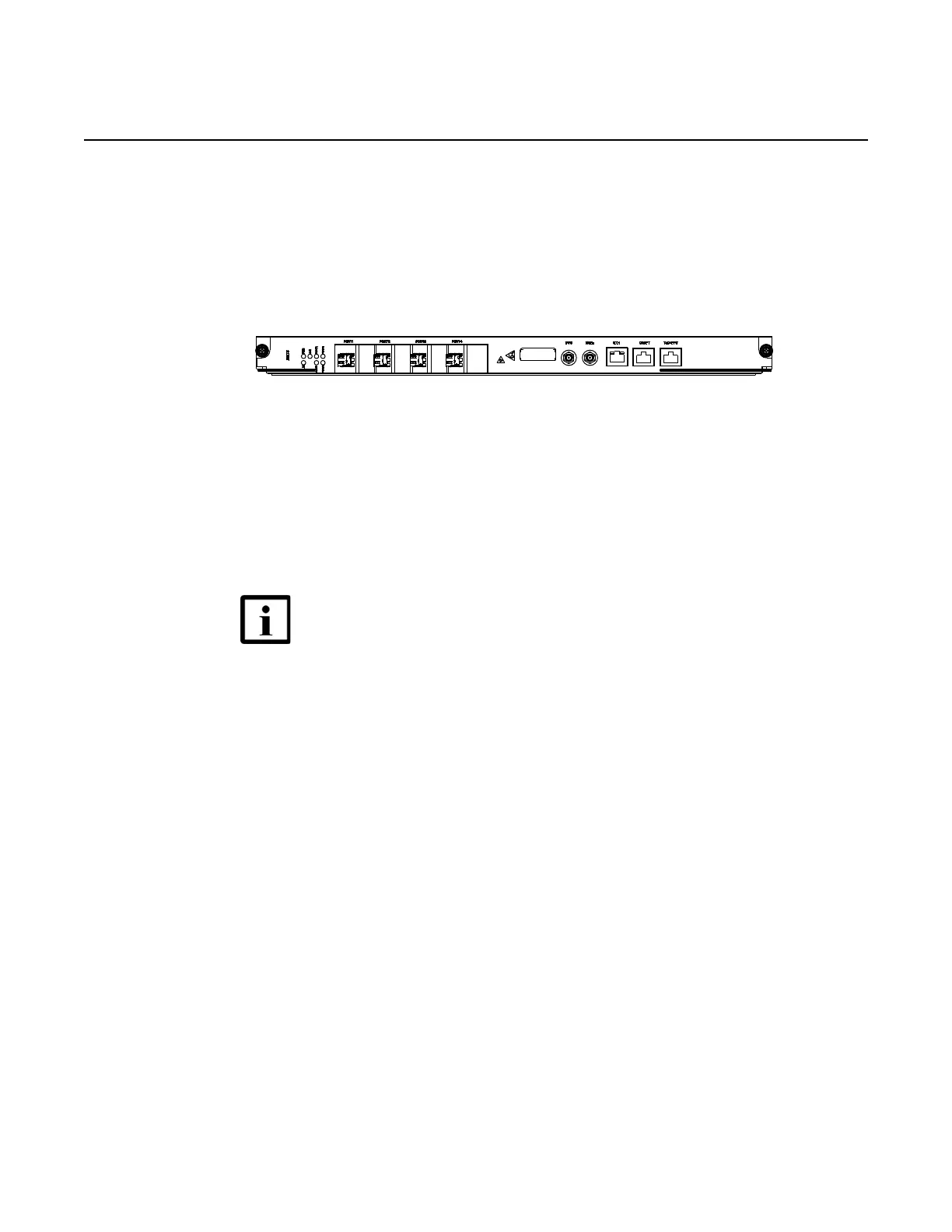

Figure 85 ToD/PPS connector location on NT card
For a description of the ToD/PPS cable connector pinning, see Appendix 26.
10.9 Remote craft port connector
The 7360 ISAM FX-12 requires a DB-9 female connector for the remote craft port
connection.
When the remote craft port is provisioned as a DCE port, meaning it connects to a
remote modem, the straight through DB-9 female connector cable is required. When
the remote craft port is provisioned as a DTE port, meaning it connects to a
computer, a DB-9 null-modem cable is required to invert the TX and RX signals. A
commercially available DB-9 male adapter cable can be used with the DB-9 female
connector cable to enable the use of standard cables.
See Figure 83 for the location of the connector on the GFC card.
For a description of the remote craft cable connector pinning, see Appendix 25.
10.10 Combo cable connector
This section describes the cabling procedure for the interconnection cabling between
the voice LT card and the splitter card in an 7360 ISAM FX-12, in case of Combo
configuration.
Note — Nokia supports the use of a DB-9 female connector
cable for the remote craft port connection to avoid potential
damage due to exposed pins on the typically used DB-9 male
connector.
