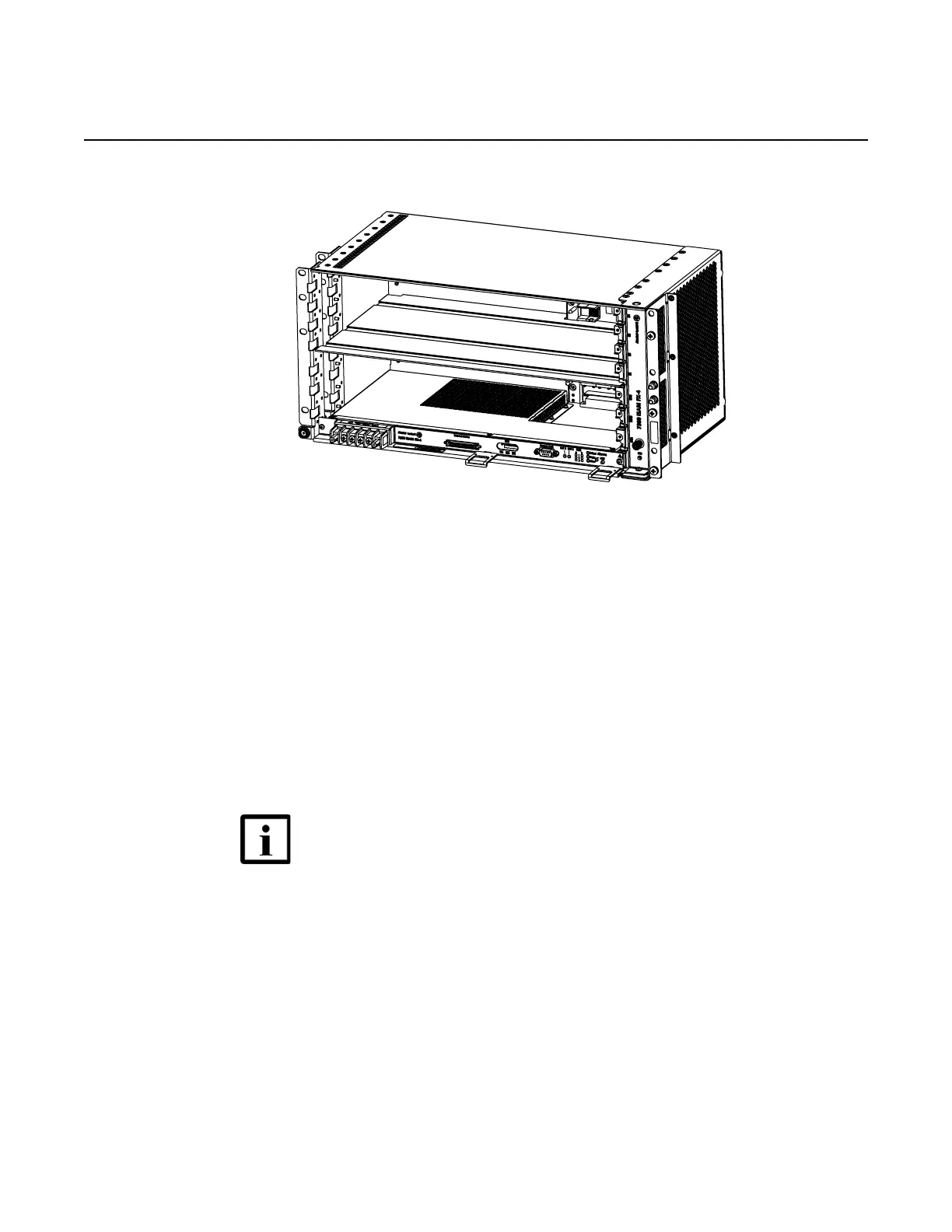

Figure 195 Power distribution unit on 7360 ISAM FX-4
18.5.3 Power cables
This section provides information about the types of power connection cables, cable
routing, and a procedure for connecting the power cables on the 7360 ISAM FX-4.
18.5.3.1 Power cable type
The 7360 ISAM FX-4 requires the use of a 10 AWG power cable.
The maximum cable size that can be terminated on the power distribution terminal
block is 10 AWG power lug.
22394
Note 1 — The color of the power cables must be according to
local installation practices.
Note 2 — Nokia recommends the following crimp lugs and
crimp lug tool:
• input power lug: Panduit crimp ring lugs PV10-10R to be
used with 10 AWG cable
• crimp tool: CT-100A, CT-600A, CT-1551, CT-2500
