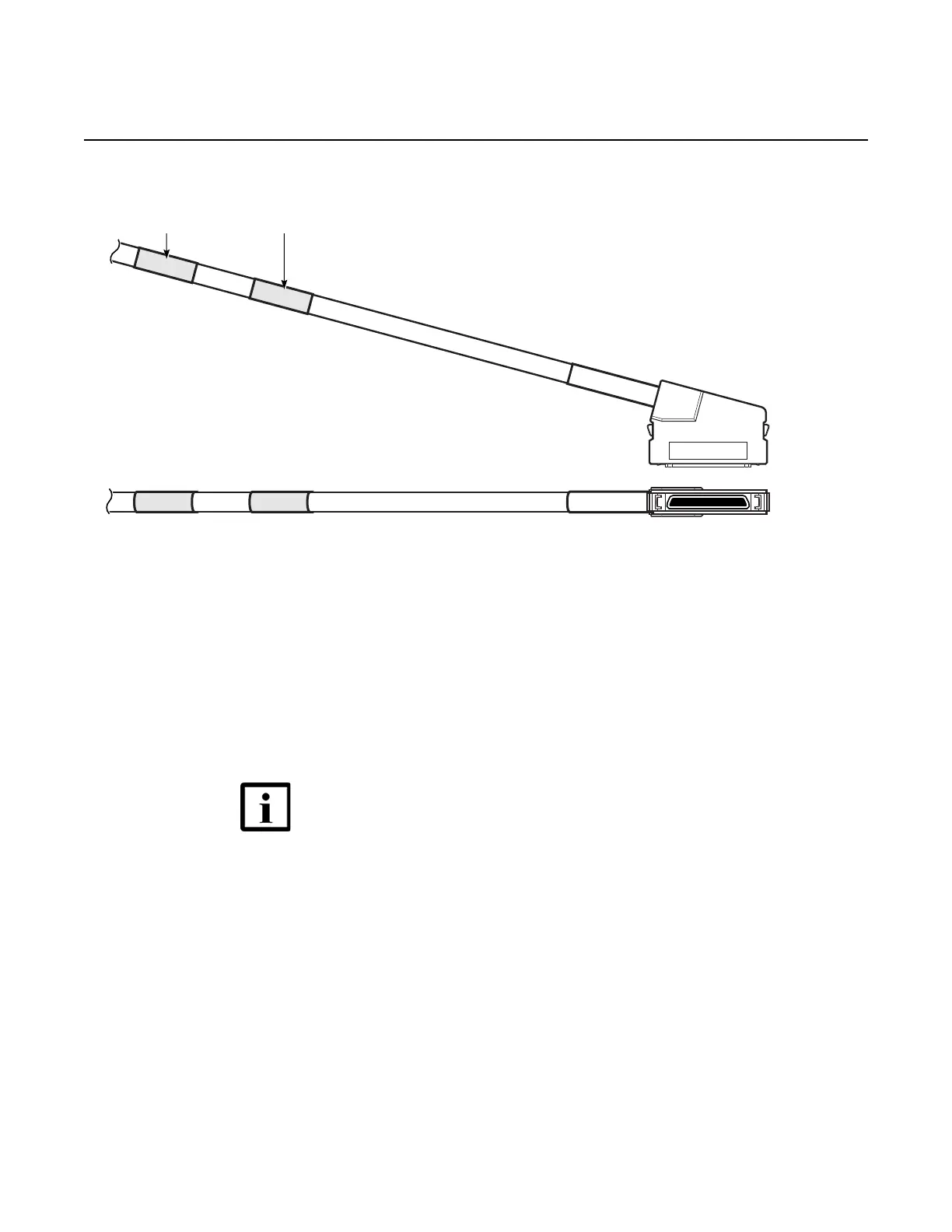

Figure 199 External CO alarm cable for 7360 ISAM FX-4
For a description of the CO external alarm connector pinning, see your Nokia
representative.
18.7 BITS interface connections
The 7360 ISAM FX-4 requires six wire-wrappable pins for the BITS clock timing
connection. BITS timing signals will be supplied using two twisted pair cables (22
AWG solid copper conductors with overall shield and drain wire, Belden 1175A or
equivalent). One cable will connect to the 3 wire-wrap pins for NT-A, and the other
will connect to the 3 wire-wrap pins for NT-B.
See Figure 198 for the connection location on the GFC card.
For a description of the BITS cable connector pinning, see Appendix 25.
18.8 ToD/PPS connector
The 7360 ISAM FX-4 requires an RJ-45 connector cable for the Time of Day and
PPS signal connection located on the NT card. See Figure 200 for the location of the
connector.
AMP
Supplier
label
Company
label
22959
Note — Connect the drain wire (FG) at one end only, either at
the 7360 ISAM FX-4 or at the source.
