Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-12 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 179
DRAFT
10 Verify that the fans spin.
11 STOP. This procedure is complete.
Procedure 36 To disconnect the power cables
Use the following procedure when the power cables need to be disconnected on 7360 ISAM FX-
12.
1 Before disconnecting the power cables, ensure that power to the cables has been
disconnected.
2 Switch off the circuit breakers for BAT A and BAT B
3 Disconnect the battery cables BAT A and BAT B
4 Disconnect the BATRET cables RET A and RET B
5 STOP. This procedure is complete.
10.6 CO alarm connector

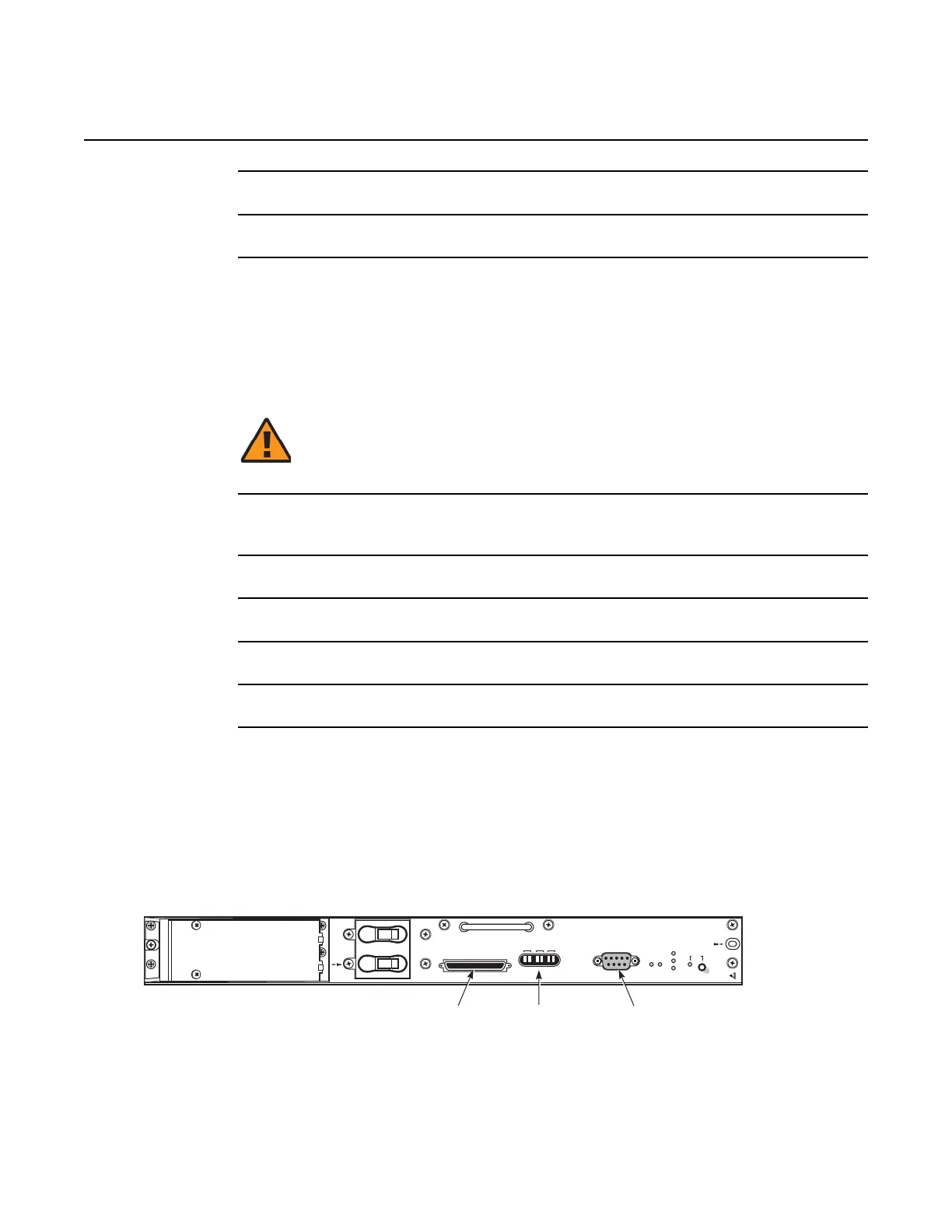

Figure 83 shows the external interfaces on the 7360 ISAM FX-12 shelf.
Figure 83 External interfaces on 7360 ISAM FX-12
Warning — If the following sequence is not followed exactly, there can
be a possible fire hazard.
B: 60AA: 60A
External Alarms
BITS NTA
GND
NTB
Remote Craft
BAT A BAT B
Min.
ACO
Maj.
Crit.
Alarms
7360 ISAM FX-12
24864
External
Alarms
Remote
Craft
BITS connection
