Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing cards in the 7360 ISAM WM shelf
420
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

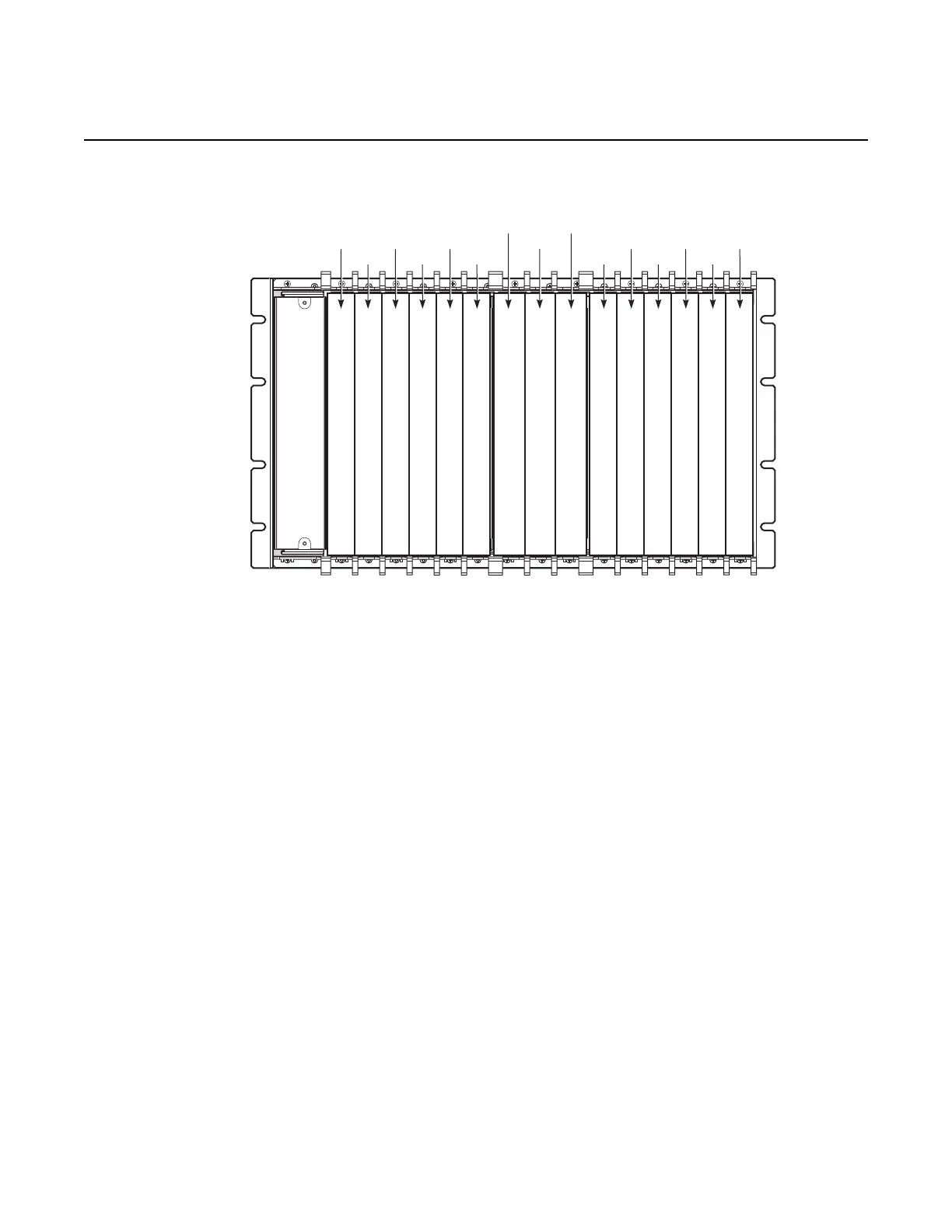

Figure 244 Card slot positions on 7360 ISAM WM
The 7360 ISAM WM can be equipped with a maximum of 12 line cards, 2 power
cards, and 1 controller card.
23.3 Dummy front panels
Dummy front panels must be installed in any unused slot of a shelf to:
• ensure EMC compliance
• ensure thermal compliance through correct airflow in the shelf
• ensure safety by avoiding direct contact with backplane connectors
At slot deployment, the dummy front panel is replaced by the appropriate card and
the optical cables are connected to the card.
For more information on specific dummy front panels, see the 7360 ISAM FX Product
Information Guide.
25757
LC01
LC02
LC03
LC04
LC05
LC06
Power
A
Controller
Power
B
LC07
LC08
LC09
LC10
LC11
LC12
