Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing cards in the 7360 ISAM FX-8 shelf
294
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

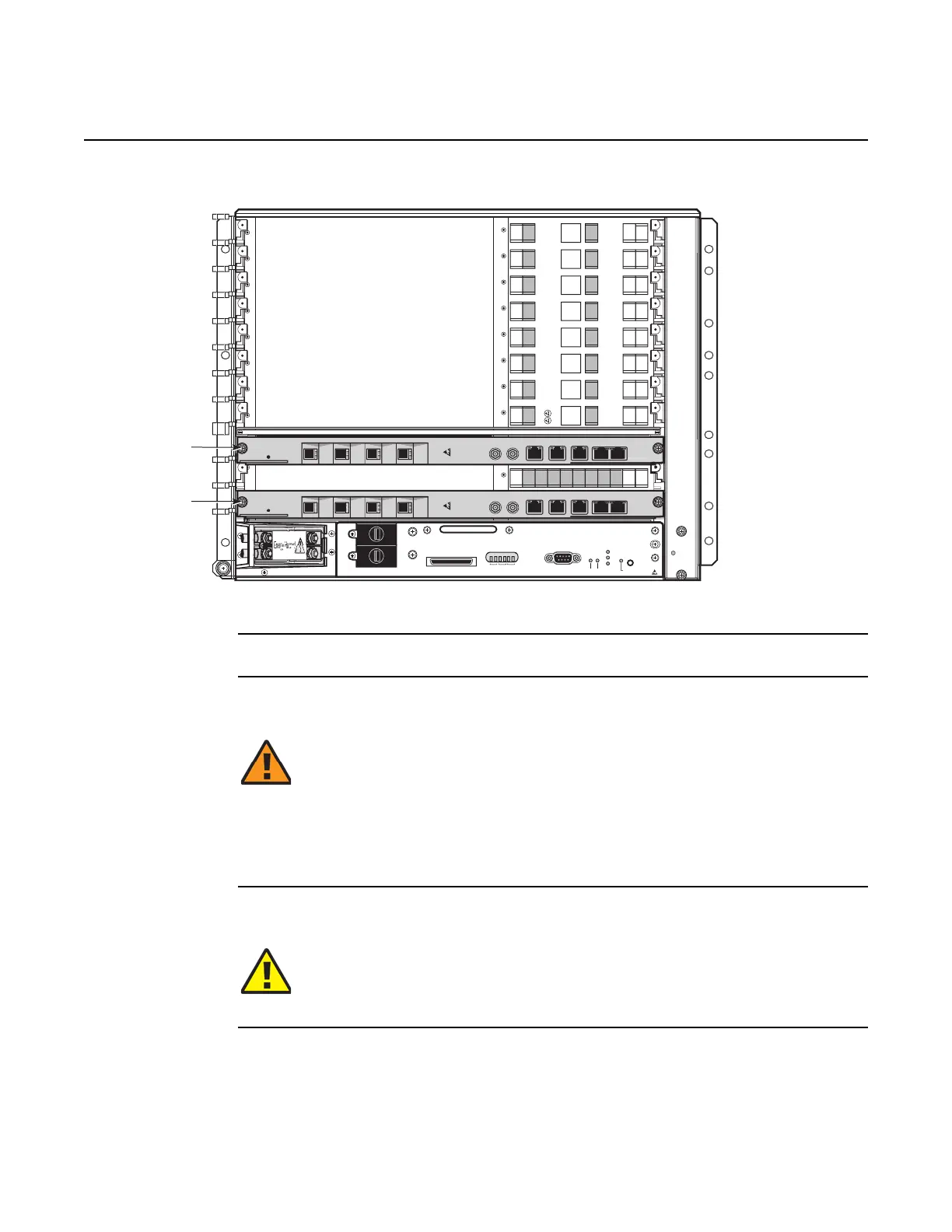

Figure 159 NT card slots in 7360 ISAM FX-8
1 Remove the NT card from its ESD protective bag. Wear the antistatic wrist strap.
2 Ensure that the insertion/extraction tabs on the card are in the unlocked position.
3 Slide the NT card in the NT-A slot of the shelf; see Figure 159.
4 Use the ejector handles to engage the card connectors in the backplane; see Figure 163.
TOD/IHZ
22438
FAN
NTA
NTIO NTB 01 02 03 04 05 06 07 08
7360 ISAM FX-8
Energy Hazard
Critical
Alarms
ACO
BAT A
Remote Craft
BITS
External Alarms
Major
Minor
BAT B
7360 ISAM FX-8
B-40A
A-40A
NTA GND NTB
NT B
NT A
Warning 1 — Ensure that all protective coverings on the shelf
backplane connectors are removed prior to installation of the cards,
otherwise damage to the shelf pins and the connectors may occur.
Warning 2 — Attempting to insert a misaligned card may cause bent
pins on the backplane connector. Ensure that the card is properly
positioned in the slot and aligned with the backplane connector before
securing the insertion/extraction tabs.
Caution — When sliding the NT card into the slot, ensure that the
solder side of the NT card does not come into contact with the EMC
shielding plate adjacent to the NT card slot. If not done properly, this may
cause damage at the solder side of the NT card.
