Reading 2D-codes

190

FQ2-S/CH User’s Manual

4-6 Reading 2D-codes

FQ2-S4

2D-codes

You can read 2D codes. You can also verify whether the character string that was read from the 2D code

matches a registered character string. You can output the result of reading a 2D code and the verification result

to an external device. The following five code types can be read.

The print quality evaluation result defined in ISO/IEC 15415 can only be calculated for Data Matrix.

Data Matrix (ECC200, GS1), QR Code, Micro QR Code, PDF417, or MicroPDF417

*: A Max.64 characters can be displayed on the result screen.

(Max.16 characters per line and Max.4 lines can be displayed.)

Reading will end in error if the 2D Code type is incorrectly set. Set the code type before starting reading. When teach-

ing is performed, the captured 2D code is read, and the following items can be set.

• Code type Detailed Parameters: p. 196

• Mirror Detailed Parameters: p. 196

• Specifying the Code Color (Data Matrix, QR Code, or Micro QR Code only) Detailed Parameters: p. 196

• Shape (Data Matrix, QR Code, or Micro QR Code only) Detailed Parameters: p. 196

Note

Setup Measurement

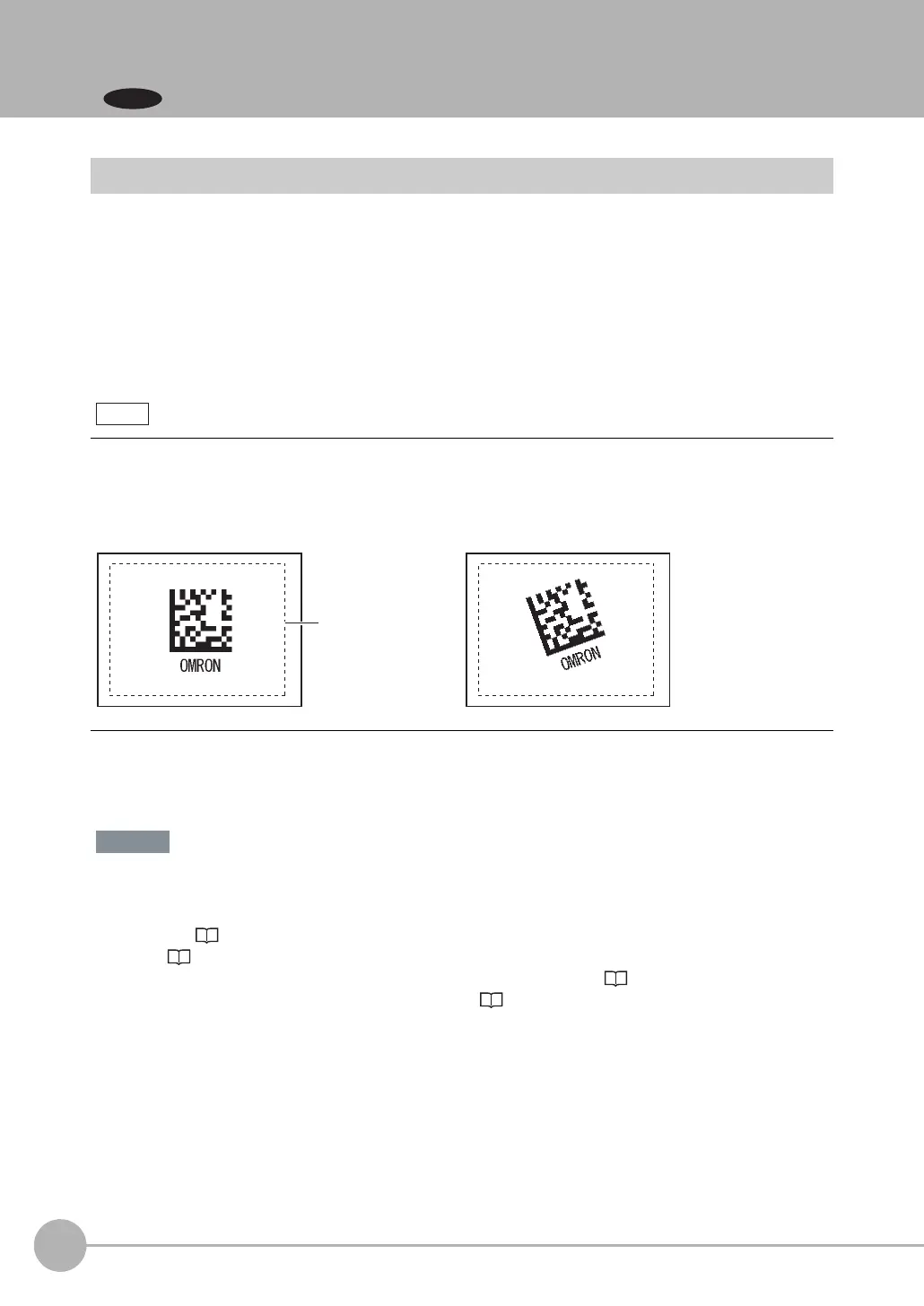

Measurement region

One 2D barcode is read in a single measurement region.

When the measurement region contains multiple 2D codes,

the result of the first 2D code to be read is output.

Set the measurement region, place the applicable code

in front of the Camera, and then perform teaching. The

code type and the detailed parameters are set automati-

cally.

Important
