Inspecting with Color Data Inspection Item
FQ2-S/CH User’s Manual
293
4
Setting Up Inspections
4-15 Inspecting with Color Data Inspection Item
FQ2-S1
FQ2-S2
FQ2-S3 FQ2-S4
Color Data Inspection Item
This inspection item is used to perform inspections for foreign matter with a different color or for presence. The
region is set for a portion of the image with the color that is to be measured. This region is called the
measurement region. The average color within the measurement region is measured.
If a Sensor with a Monochrome Camera is connected, the average density in the measurement region is found
and inspections are performed for the difference from the registered reference value (density average) and the
variation within the measurement region (density deviation).
If a Sensor with a Monochrome Camera is connected, the average density in the measurement region is
measured and the density deviation is used for judgments.
OK NG

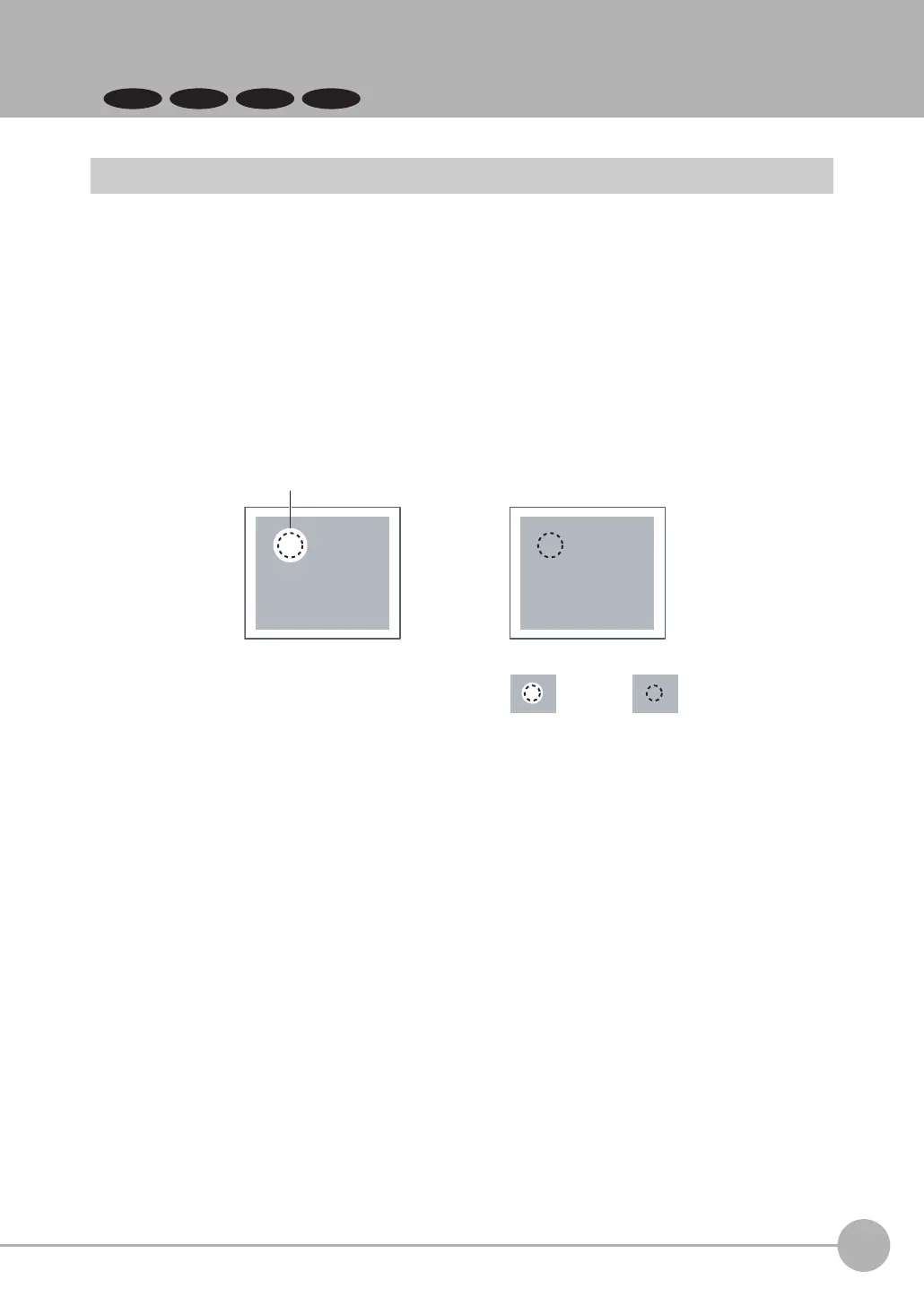

Measurement region
Judges using the average
color of the measurement
region.
Sample Settings Sample Measurement
