Inspecting with the Search Inspection Item
220
FQ2-S/CH User’s Manual
Obtaining Multiple Results Simultaneously
You can detect all items that satisfy the extraction conditions.
Judgment is performed for all detected results.
[Inspect] − [Inspection] − [Search] − [Modify] − [Details] Tab Page − [Meas. Parameter]
1 Press [Multi-point output] and select [Yes].

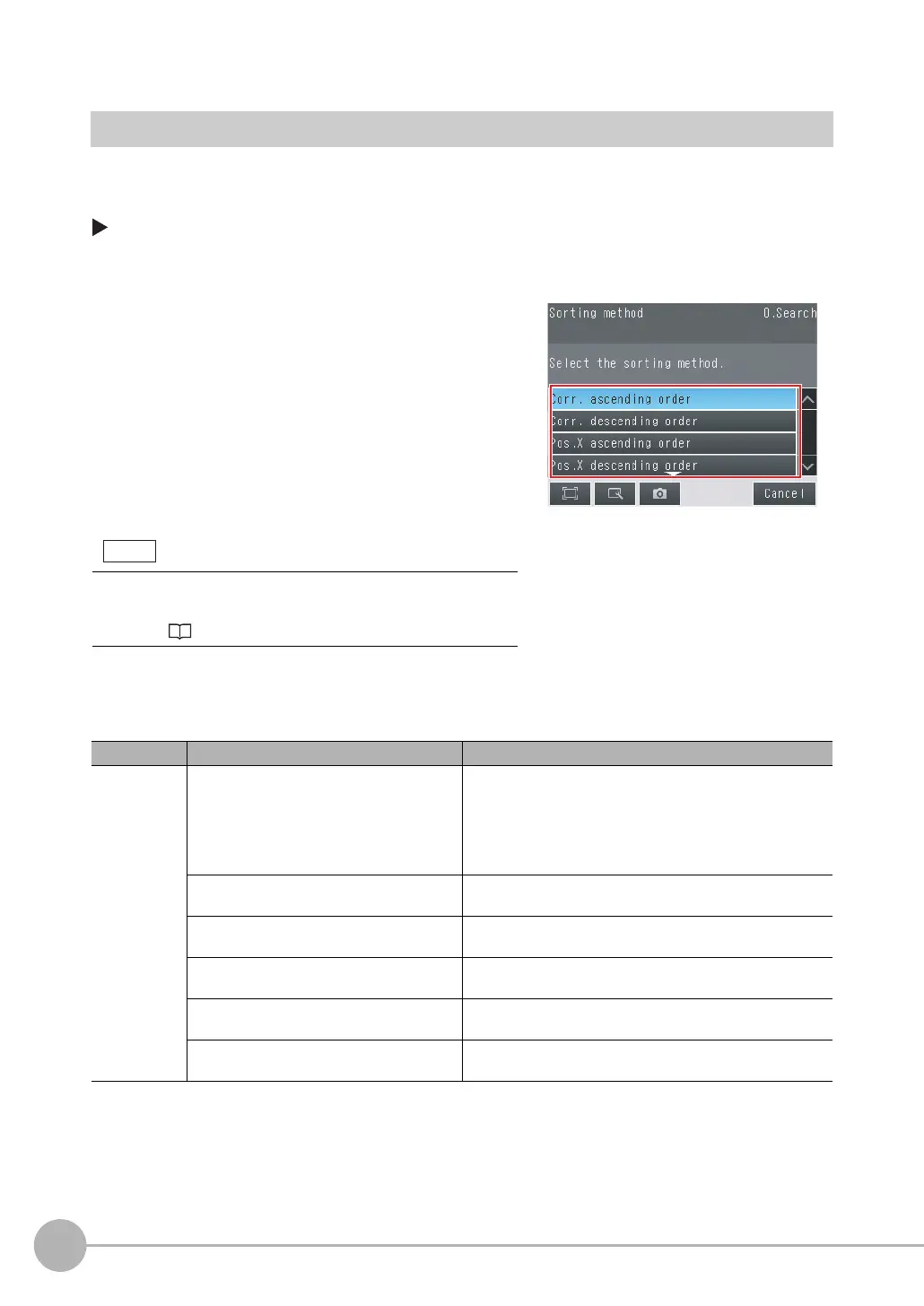

2 Press [Sorting method] and select the conditions by
which to sort the detected results.
You can output the results in the sort order that you se-
lected.
Selection item Setting Description
Sorting
method
Corr. ascending order
(ascending order of correlation value)
Sorts the results in order from the smallest correlation to the
largest.
Candidate level has priority when Candidate level is lower
than lower value of Judgment condition.
Measurement value will be zero if the correlating value is
lower than Candidate level.
Corr. descending order (Default)
(descending order of correlation value)
Sorts the results in order from the largest correlation to the
smallest.
Pos.X ascending order
(ascending order of position X)
Sorts the results in order from the smallest measurement X
position to the largest.
Pos.X descending order
(descending order of position X)
Sorts the results in order from the largest measurement X
position to the smallest.
Pos.Y ascending order
(ascending order of position Y)
Sorts the results in order from the smallest measurement Y
position to the largest.
Pos.Y descending order
(descending order of position Y)
Sorts the results in order from the largest measurement Y
position to the smallest.
You can specify the actual output conditions and count for output-
ting multiple results.
Selecting the results to output: p. 221
