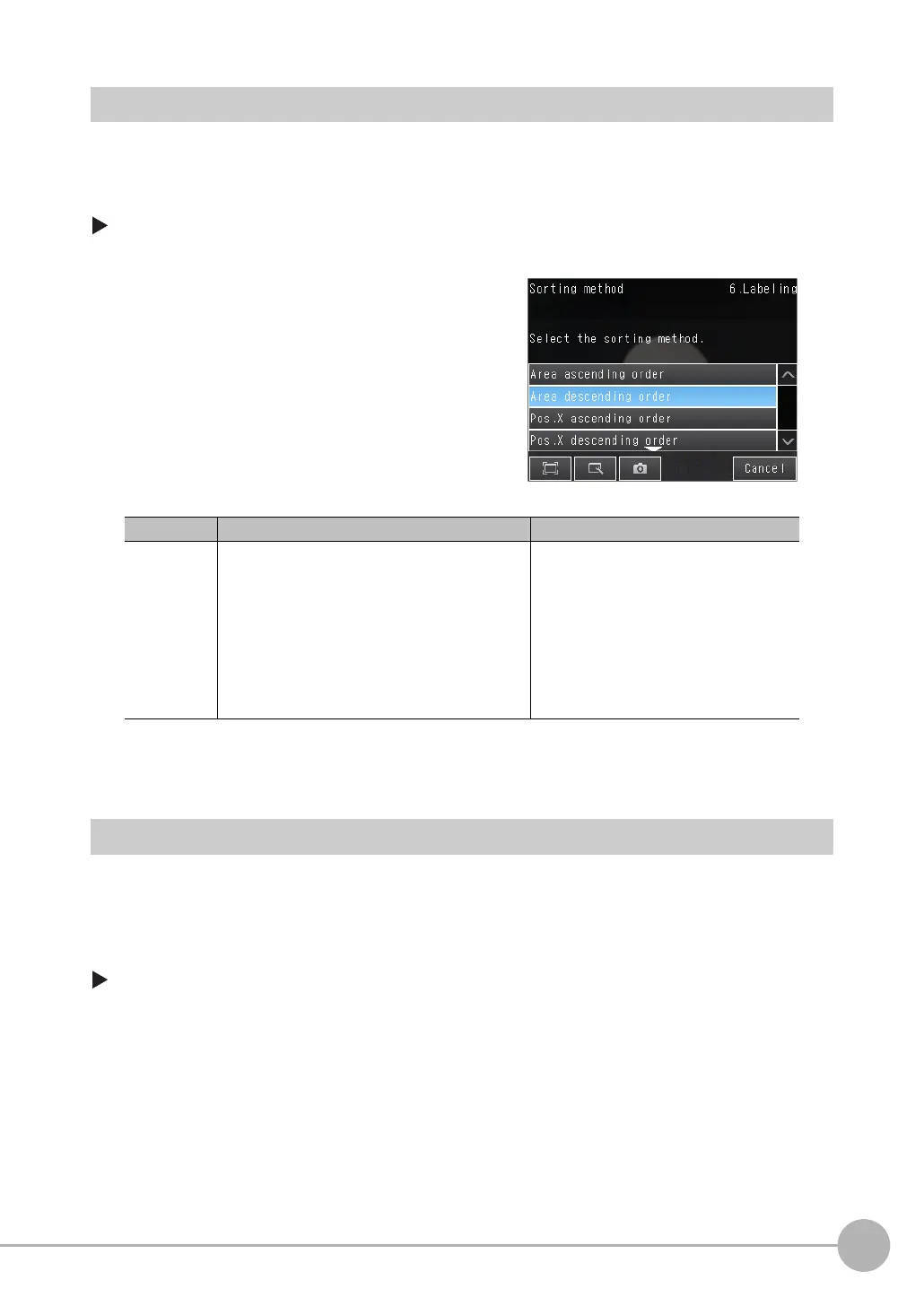

Inspecting with the Labeling Inspection Item
FQ2-S/CH User’s Manual
319
4
Setting Up Inspections
Sorting Extracted Labels
Set the sort condition and count for extracted labels. You can set the sort condition and the maximum number
of detections for detection results.
[Inspect] − [Inspection] − [Labeling] − [Modify] − [Details] Tab Page − [Meas. Parameter]
Reflect in Total Judgement
You can specify whether to reflect the judgment results of an inspection item in the overall judgment.
The Default is to reflect them.
[Inspect] − [Inspection] − [Add item.] − [Labeling] − [Details] Tab Page − [Output parameter]
1 Press [Sorting method].
2 Select the sorting method.
Parameter Setting Description
Sorting
method
Area ascending order
Area descending order (Default)
Pos. X ascending order
(ascending order of X coordinate)
Pos. X descending order
(descending order of X coordinate)
Pos. Y ascending order
(ascending order of Y coordinate)
Pos. Y descending order
(descending order of Y coordinate)
Set the condition to use for label number
reassignment. When sorting by X or Y coor-
dinates, the upperleft corner is the origin.
