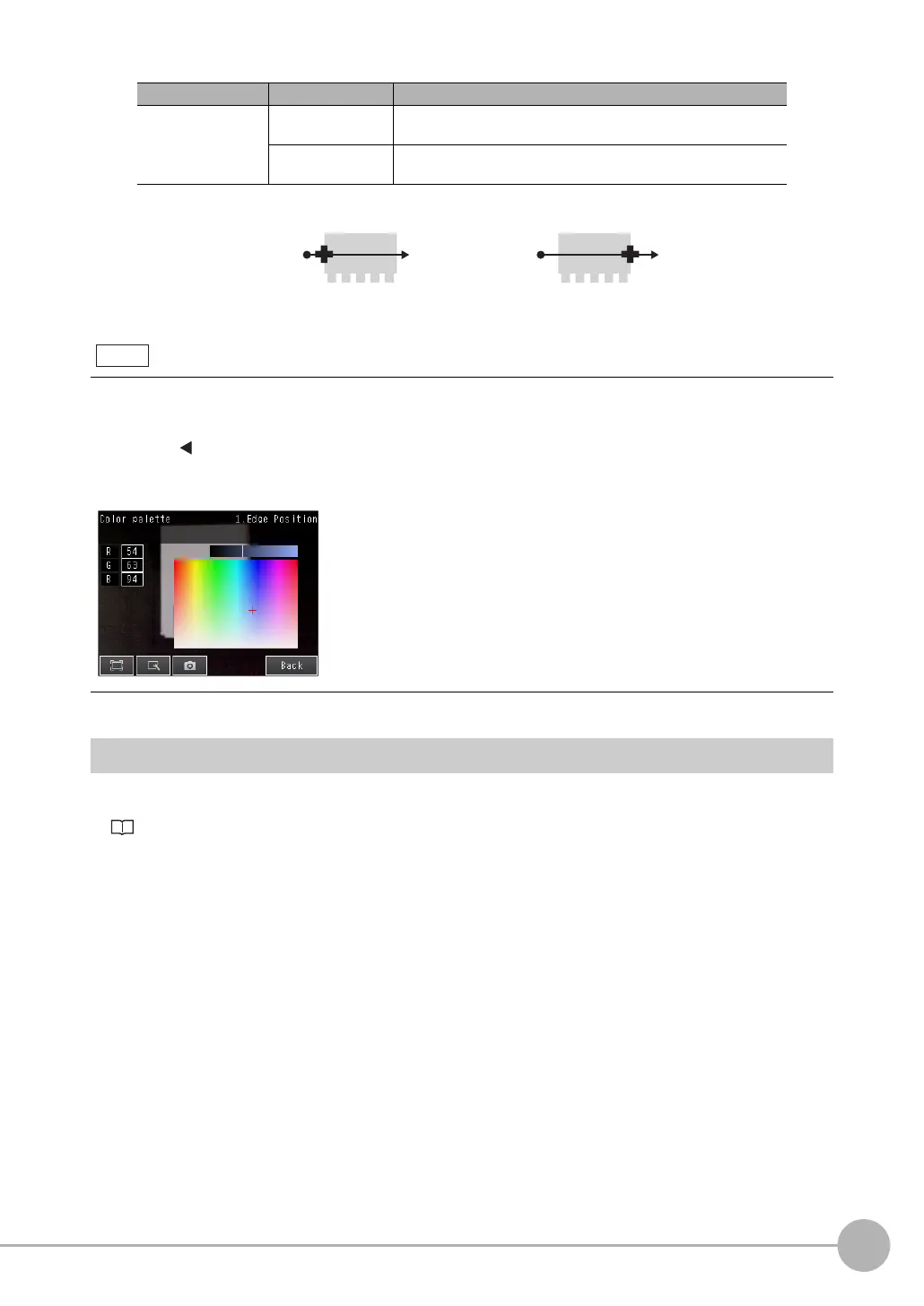

Inspecting with the Edge Position Inspection Item
FQ2-S/CH User’s Manual
279
4
Setting Up Inspections
Increasing Processing Speed for Edge Position
Make the measurement region smaller to reduce the processing time.
Changing the measurement region: p. 227
Item Parameter Description
Detection mode
Color IN Detects as an edge any position where the color changes from
another color to the specified color.
Color OUT Detects as an edge any position where the color changes from
the specified color to another color.
It is also possible to check the extraction colors or specify them using the color palette.
The RGB values of the extraction color can be checked and adjusted using the color palette.
If you press [ ] − [Color palette], a color palette will appear.
Beginning
position
Ending
position
Color IN
Beginning
position
Ending
position
Color OUT
Note
When a color is pressed on
the color palette, its RGB
values will be displayed.
