Inspecting with the Edge Position Inspection Item
FQ2-S/CH User’s Manual
271
4
Setting Up Inspections
4-12 Inspecting with the Edge Position Inspection Item
FQ2-S1
FQ2-S2
FQ2-S3 FQ2-S4
Edge Position

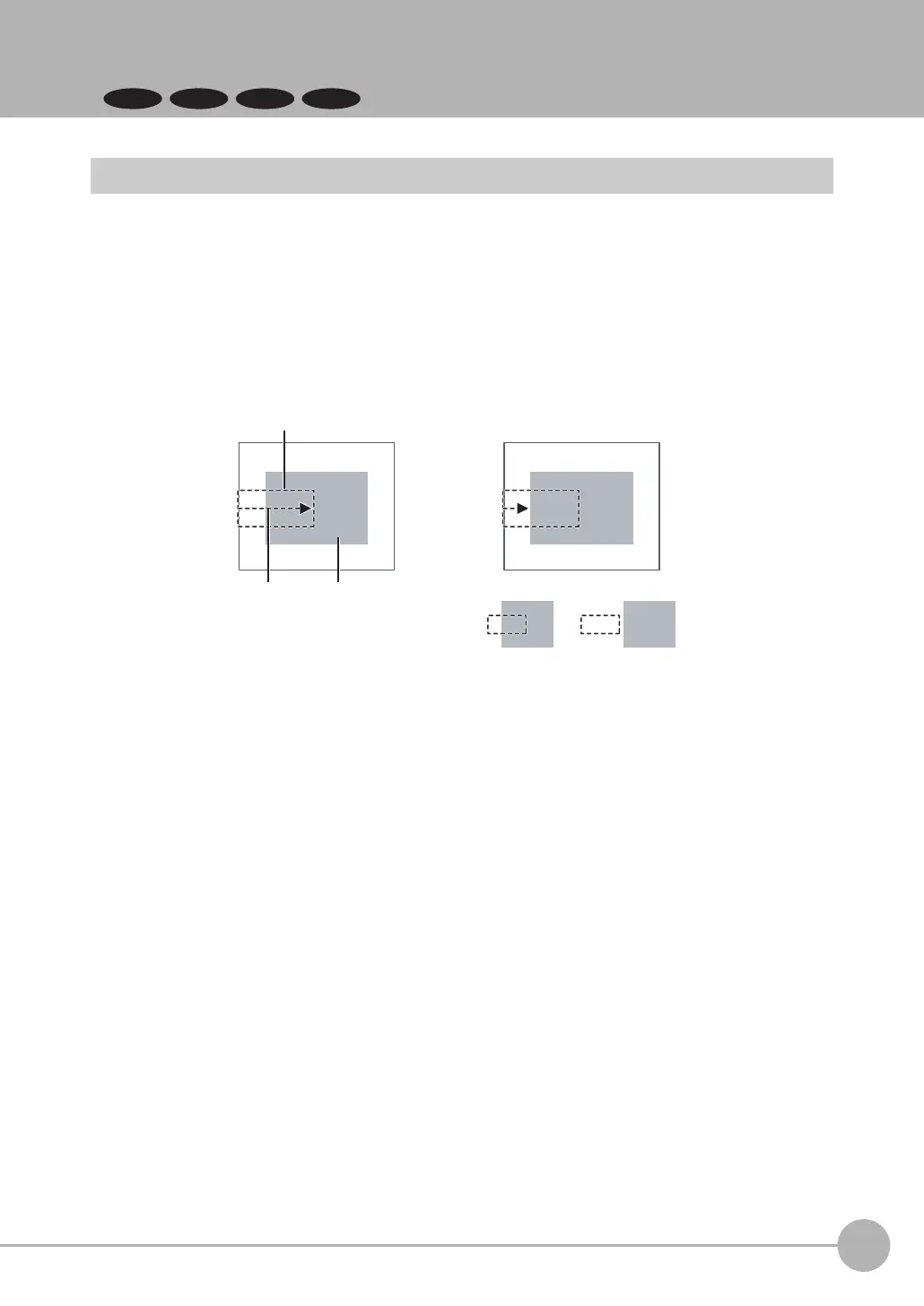

This inspection item is used to inspect positions. For example, it can be used to see if a label is attached at the
correct position or if a product is set in the correct position.
Places where the color changes greatly are called edges. The positions of these edges are measured.
OK NG
Edge search
direction
Color of edge
to be found
Measurement region
An edge is detected within the region
according to set direction and color.
Sample Settings Sample Measurement
