Configuring the Run Mode Display
354
FQ2-S/CH User’s Manual
6-2 Configuring the Run Mode Display
FQ2-S1
FQ2-S2
FQ2-S3 FQ2-S4
FQ2-CH

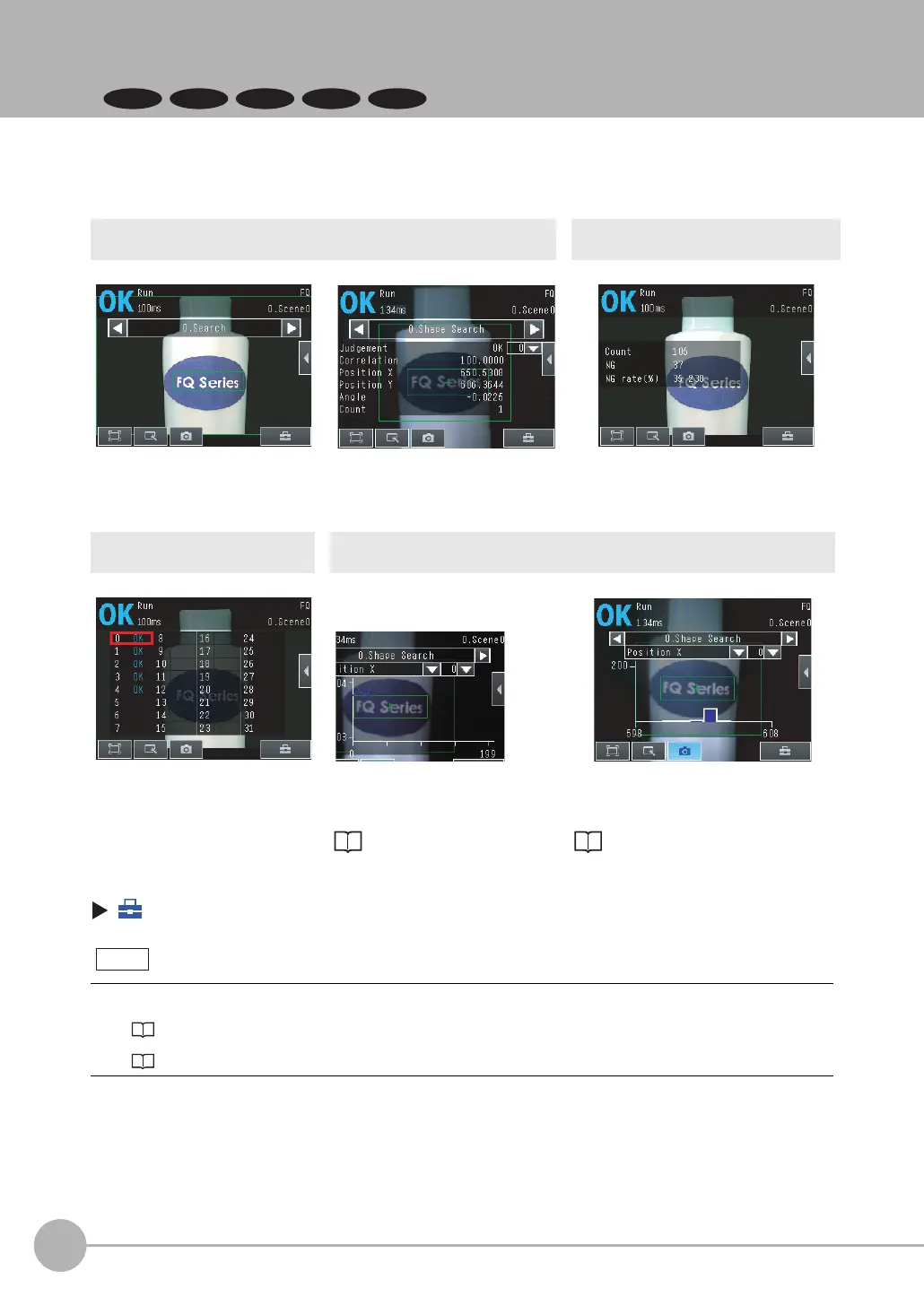

There are six types of displays that can be used, as shown below.
Select the display as desired.
(Run Mode) − [Select display]
Checking the Judgement Results of Inspection Items Checking the Overall Judgement Result His-
tory
Graphics
The image and region currently being
measured will appear.
Graphics + Details
In addition to [Graphics] display, indi-
vidual judgement results and measure-
ment values of selected inspection
items will appear.
Statistical data
The currently measured image and history of
the overall judgement results (measurement
count, NG count, and NG rate) will appear.
Checking the Judgements of All
Inspection Items in a List
Displaying Measurement Result Histories
All results/region Trend monitor Histogram
The judgement results of all inspection
items can be checked in a list.
The statistical data for the currently
selected inspection item can be
checked against time.
p. 358
The distribution of measurement results of the
currently selected inspection item can be
checked.
p. 360
The two conditions below are required in order to display the trend monitor / histograms in Run Mode.
Enabling File Logging: p. 399
Setting Logging Conditions: p. 395
