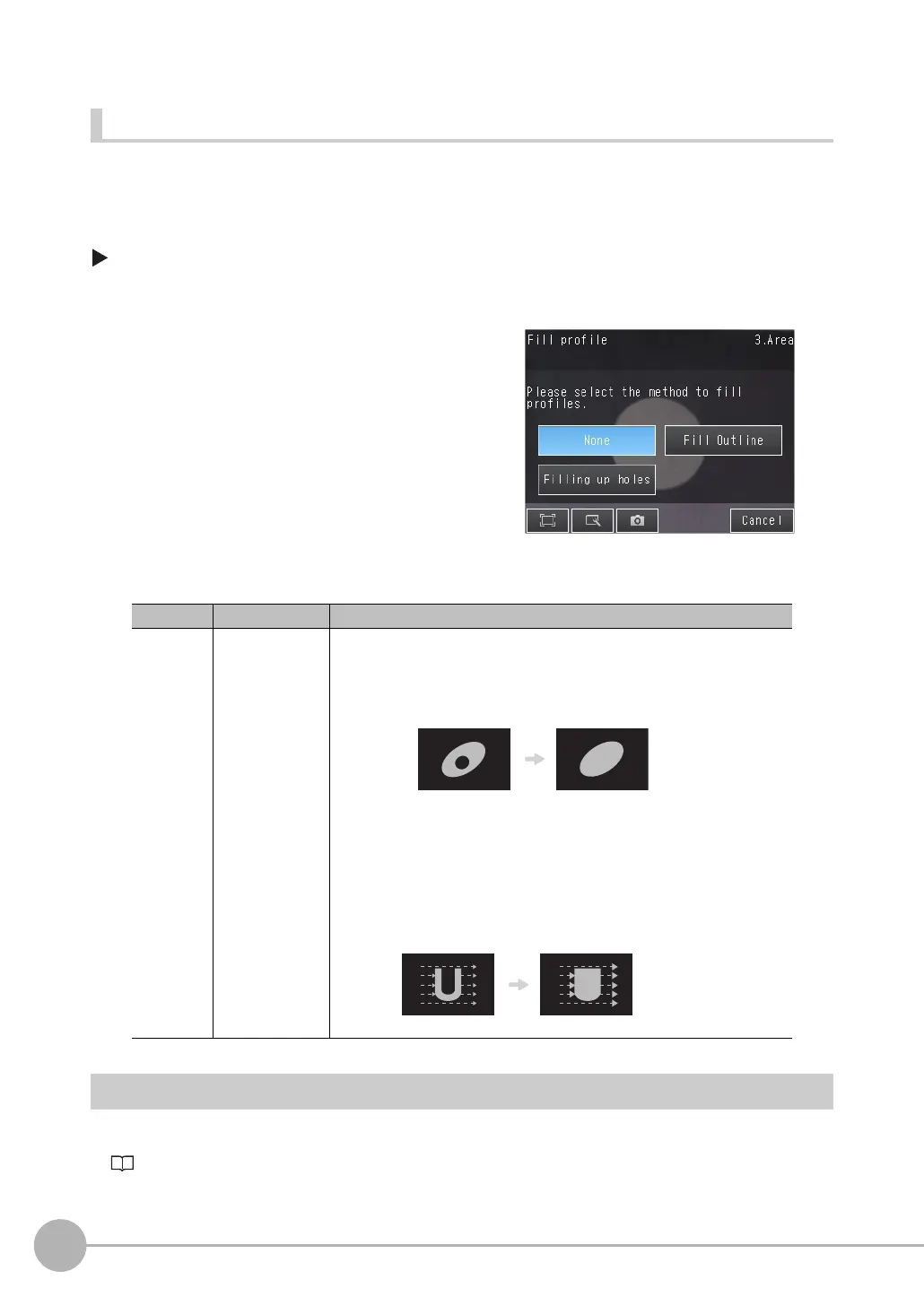

Inspecting with the Area Inspection Item
308
FQ2-S/CH User’s Manual
Changing the Area Detection Conditions
You can fill in the area detected through color extraction or binary conversion to perform a stable extraction of
the areas and their characteristics or to mark only areas inside the measurement region for inspection.
[Inspect] − [Inspection] − [Aria] − [Modify] − [Details] Tab Page − [Meas. Parameter]
Increasing Processing Speed for Area
Make the measurement region smaller to reduce the processing time.
Changing the measurement region: p. 227
1 Press [Fill profile] and select [Filling up holes]
or [Fill Outline].
Parameter Setting Description
Fill profile
• None (Default)
• Fill Outline
• Filling up holes
None: Holes are not filled.
Filling up holes: Processes areas that are surrounded by the specified color,
like in the shape of a donut, as the specified color.
Fill Outline:
Measures the image between the first extracted point and the last extracted
point in the X axis direction in the measurement area as the extracted color.
Because filling is performed only in the X axis direction, this method is faster
than filling up holes.
Input Image Filled Image
Input Image Image Following Fill Outline
