Omron FQ2-S/CH Series

Inspecting with the Search Inspection Item
FQ2-S/CH User’s Manual
215
4
Setting Up Inspections
4-8 Inspecting with the Search Inspection Item
FQ2-S1
FQ2-S2
FQ2-S3 FQ2-S4

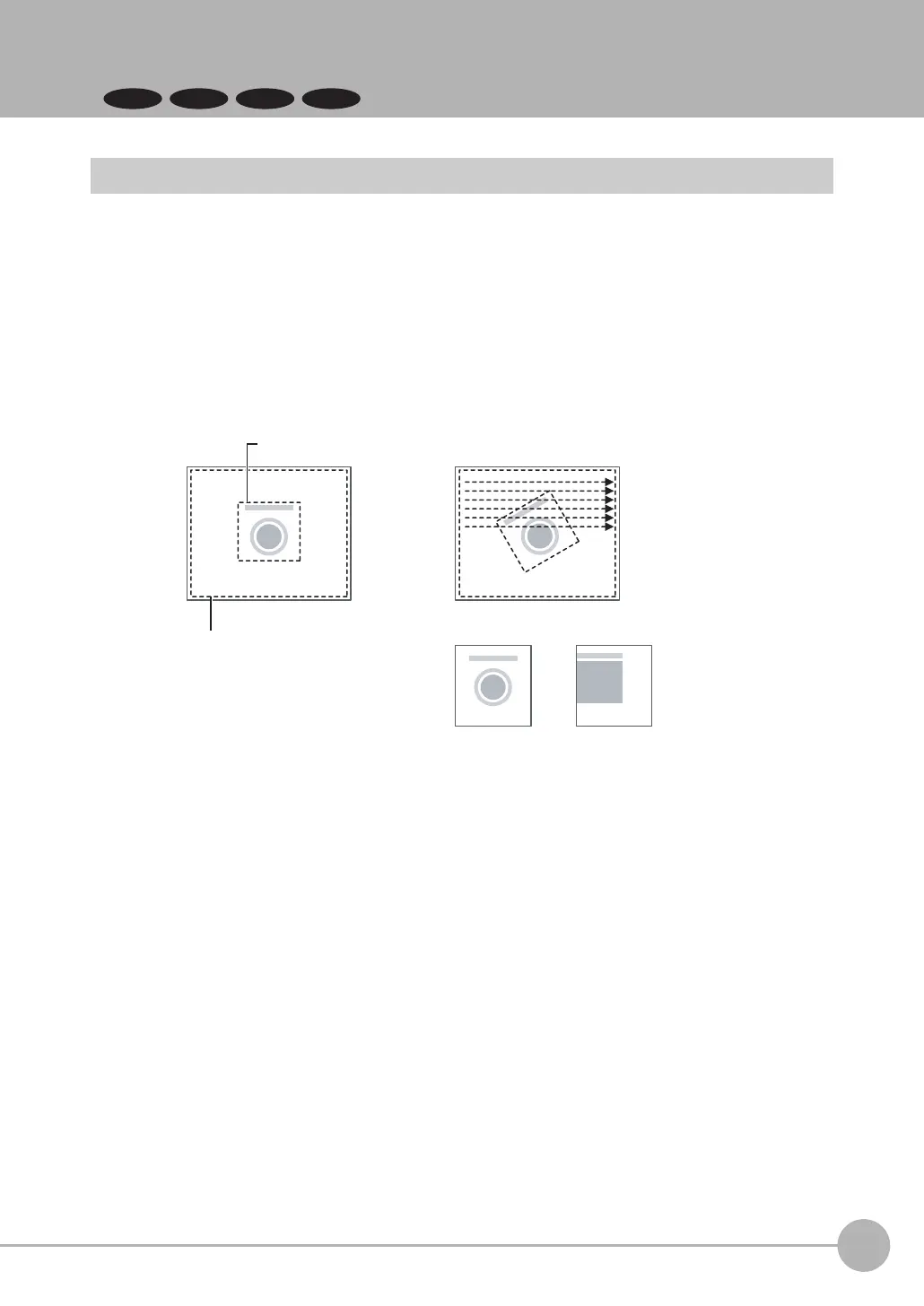

Search Inspection Item
This inspection item is used to perform inspections for shapes or for presence. The image pattern that is to be
measured is registered in advance and measurements are performed to see if the pattern is present or if the
shape is different.
The image pattern that is registered in advance is called the model.
The degree to which the image matches the model is called the correlation.
OK NG
Search region (region to
search for the model)
Search for sections that are similar to the model.
Model
(desired image pattern)
Sample Settings Sample Measurement
+
