Inspecting with the Shape Search III Inspection Item

FQ2-S/CH User’s Manual

235

Setting Up Inspections

Obtaining Multiple Results Simultaneously

You can detect all items that satisfy the extraction conditions.

Judgment is performed for all detected results.

[Inspect] − [Inspection] − [Shape Search III] − [Modify] − [Details] Tab Page −

[Meas. Parameter]

• You can change the output form for each measurement value to one of the following settings.

Press

[ ] − [Result type] on the right of the display.

Absolute value (Default): The measured coordinates are output.

Relative value: The difference from the reference position is output as coordinates.

• [Display setting]: the following images can be selected.

　 Measurement image: displays the Measurement image.

　 Measurement image ＋ Model image (Default): displays the detected Model on the Edge image.

　 Edge image: displays the Edge image.

Edge image ＋ Model image: displays the detected Model on the Edge image.

　　　 Green: Model points matching with Edge image.

　 Yellow: Model points match with Edge image except for direction.

　 Red : Model points not matching with Edge image.

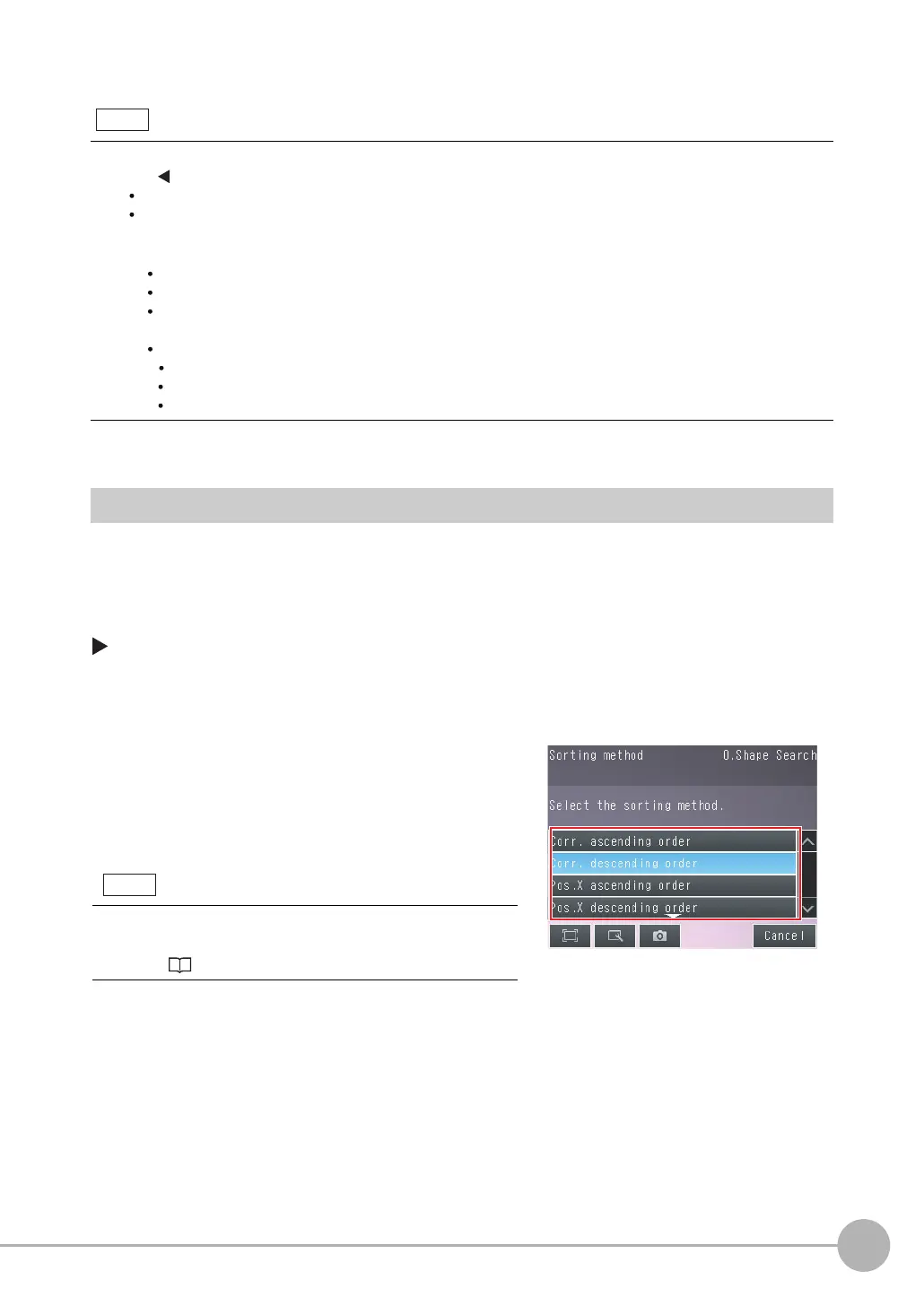

1 Press [Sorting method] and select the conditions by

which to sort the detected results.

You can output the results in the sort order that you se-

lected.

Note

You can specify the actual output conditions and count for output-

ting multiple results.

Selecting the results to output: p. 237

Note
