Display Functions
FQ2-S/CH User’s Manual
383
7
Convenient Functions

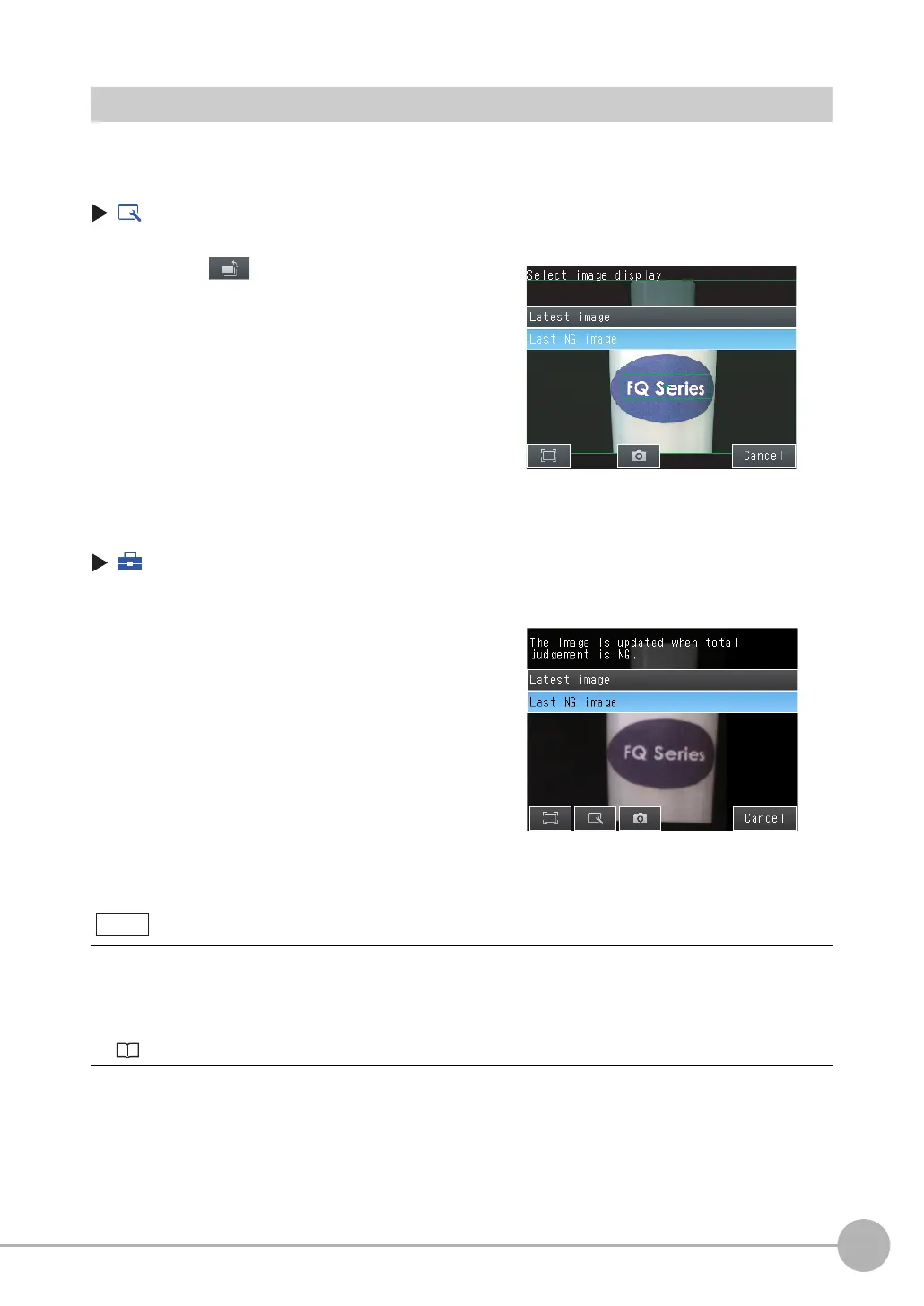

Updating the Display and Measurement Results Only for NG Measurement Results
In Run Mode, you can specify updating the display of the image and measurement results only when the
measurement result is NG.
(Run Mode)
Change the following setting to display the last NG image after restarting.
(Setup Mode or Run Mode) − [TF Settings] − [Startup display] − [Display update mode]
1 Press .
2 Press [Last NG image].
3 Press [Back].
1 Press [Last NG image].
If an operation to change the display is performed (e.g., if the display pattern is changed or the inspection item is
changed) when displaying images for NG results is set, the display will change to refreshing the most recent mea-
surement results and the most recent NG display will disappear.
To ensure that you can check the NG results, log the NG results.
Checking Recent Measurement Trends (Recent Results Logging): p. 401
