Omron FQ2-S/CH Series User Manual

FQ2-S/CH-series Sensors
22
FQ2-S/CH User’s Manual
1-1 FQ2-S/CH-series Sensors
FQ2-S1
FQ2-S2
FQ2-S3 FQ2-S4
FQ2-CH
Overview of FQ2-S/CH Series
The FQ2-S/CH Series features Sensors with integrated cameras and controllers. They can be used to easily
achieve simple inspections
*1
and measurements
*1
and to easily read and verify IDs
*2
.
You can use parallel controls, no-protocol communications on Ethernet, PLC Link communications on
Ethernet, and EtherNet/IP communications on Ethernet as standard features. You can also use a Sensor Data
Unit to enable control with full-scale parallel communications or RS-232C communications.
To set up and monitor the Sensor, you can use either the Touch Finder or the dedicated setting tool,
TouchFinder for PC (hereinafter also referred to as PC Tool). For actual operation, you can use the Sensor on
a stand-alone basis.
*1: FQ2-S1/S2/S3/S4 series only
*2: FQ2-S4/CH series only
Sensor Simulation function in TouchFinder for PC version.2.00 or later.
The same functions as those that are
provided by the Touch Finder can be
performed from a computer. The PC Tool
is available free of charge.
After the Sensor has been
set up, it can be operated
alone to perform measurements
without the Touch Finder
or PC Tool.
PC Tool
Used to check images and set the
judgement parameters. It can also be
used to save measurement results and
check status during operation.
FQ2 Sensor
Touch Finder

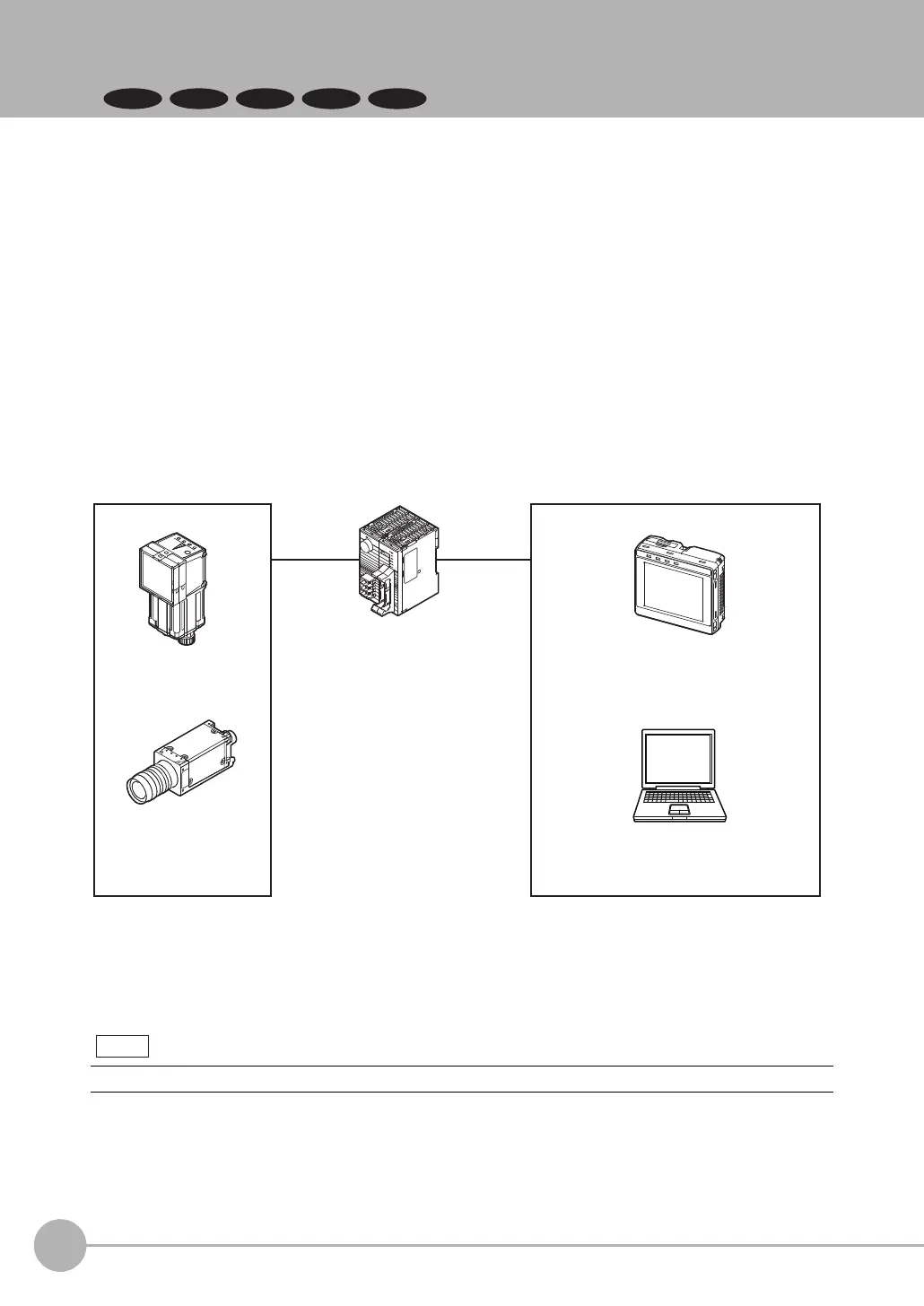

Setup, Image Confirmation, and Logging Tools
Sensor with C-mount
(FQ2-S3/S4 series only)
Sensor with
Built-in Lighting
Sensor Data Unit
Sensor Data Unit
(Parallel Interface)
A variety of parameters
such as judgment results,
measurement data of
each inspection item and
calculation results can be
output by parallel communication.
Sensor Data Unit
(RS-232C Interface)
Connection to external devices
via the Sensor Data Unit is
possible by RS-232C cable.
Note
