Performing Test Measurements
340
FQ2-S/CH User’s Manual
5-1 Performing Test Measurements
FQ2-S3 FQ2-S4
After completing the settings in the [Image], [Inspect], and [In/Out] Tab Pages, move to the [Test] Tab Page.
The displayed image is measured automatically. This is called a test measurement.
A test measurement is used to verify that the settings that have been made will produce stable results and, if
necessary, to fine-tune the settings. An overall judgment of all inspection items can be performed.
Test measurements can be performed for through images (Default) or saved images.

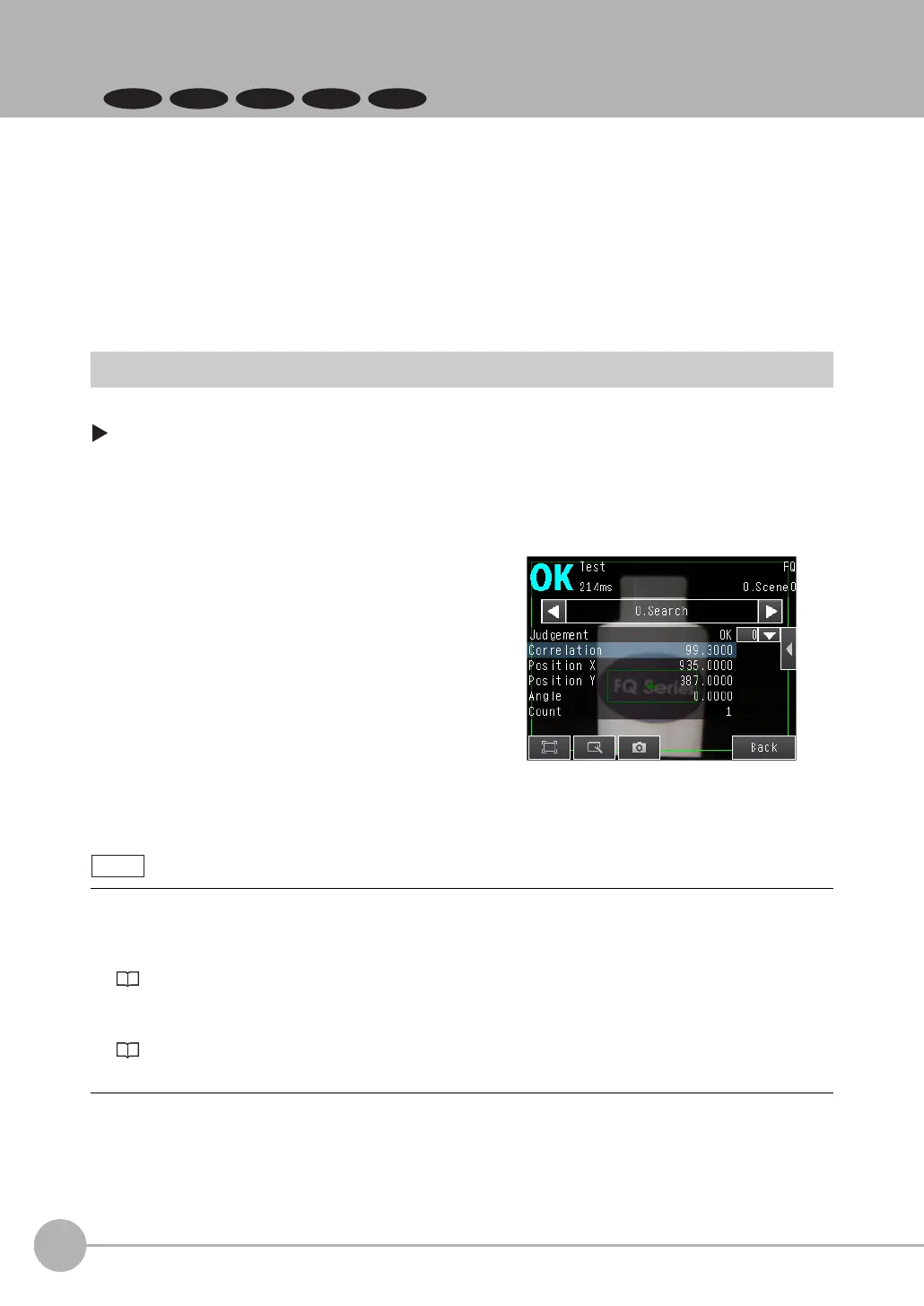

Performing Test Measurements with Samples
[Test] − [Continuous test]
1 Press [Graphics+Details].
2 Input an image of a previously prepared object.
Check the judgement results.
3 When you finish checking the results, press
[Back].
・The same five types of displays are available for the [Continuous test] on the [Test] Tab Page, i.e., [Graphics],
[Graphics + Details], [All results/region], [Trend monitor], and [Histogram]. Press the [Back] Button to access the
menu to change the display.
Changing the Run Mode display: p. 354
・[Trend monitor] and [Histogram] are shown when the File Logging function is enabled.
Enabling File Logging: p. 399
Note
To Next Page
