Reading 2D Codes (DPM)
FQ2-S/CH User’s Manual
201
4
Setting Up Inspections
4-7 Reading 2D Codes (DPM)
2D Codes (DPM)
You can read DPM (direct part marking) 2D codes.
You can also verify whether the character string that was read from the 2D code matches a registered
character string.
You can output the result of reading a 2D code and the verification result to an external device.
The scan result and verification result can be externally output.
Codes that can be scanned are Data Matrix (ECC200) and QR Codes.
The print quality evaluation result defined in ISO/IEC TR29158 can only be calculated for Data Matrix.
*: A Max.64 characters can be displayed on the result screen.
(Max.16 characters per line and Max.4 lines can be displayed.)

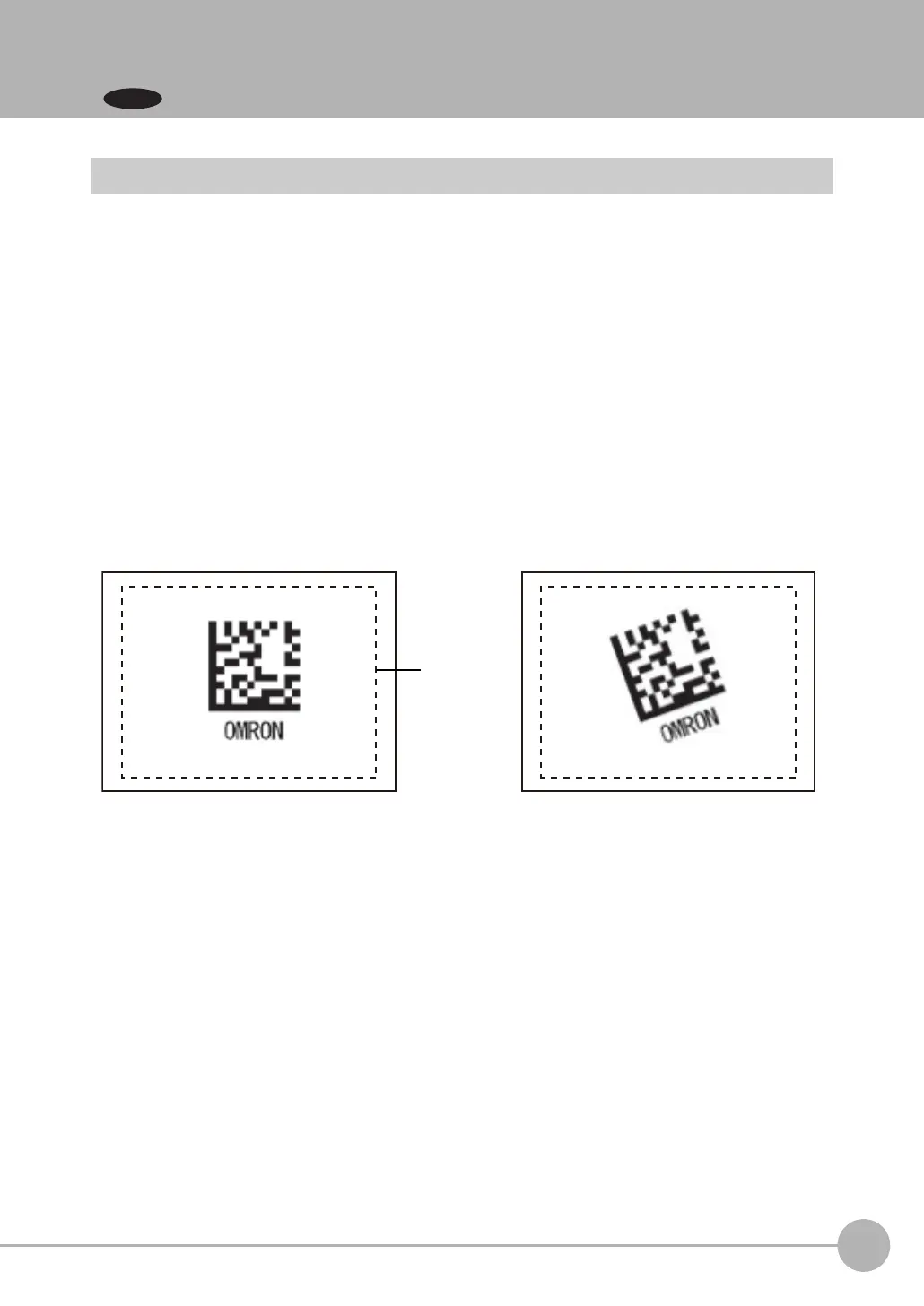

Setting image
When the inspection region is set, the code
image is displayed, and teaching is executed, the
code type and detailed parameters are
automatically set.
Inspection image
One 2D code is scanned in one inspection
region. If there are multiple 2D codes in the
inspection region, the first scanned result is
output.
*
