Omron FQ2-S/CH Series

Calibration
FQ2-S/CH User’s Manual
371
7
Convenient Functions

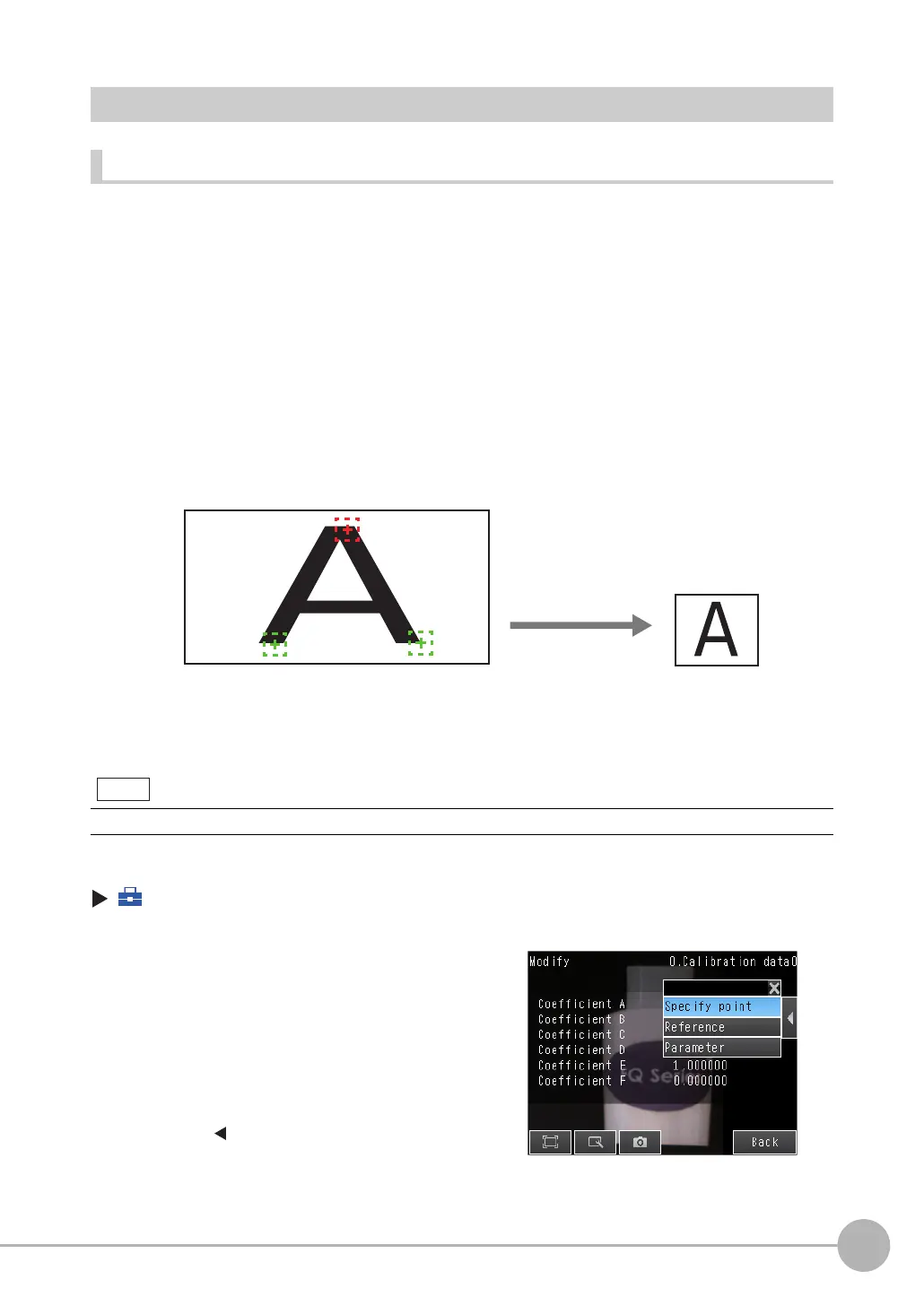

Setting the Calibration Pattern
Point Specification
Set the pixel coordinates of positions to set the calibration pattern.
When you enter the actual coordinates of the specified positions, the calibration parameters are automatically
calculated.
You can register the coordinates of up to nine positions.
• Different Magnifications in X and Y Directions
Specify three positions.
(Setup Mode) − [Calibration]
Calibration cannot be performed using two places. Specify at least three places.
1 Select the data region to set from [Calibration
data 0] to [Calibration data 31].
2 Press [Modify].
3 Press [] − [Specify point] on the right of the
display.
Calibration
X:Y=5:3
X:Y=1:1
Note
