Omron FQ2-S/CH Series

Calibration
378
FQ2-S/CH User’s Manual
(Setup Mode) − [Calibration]

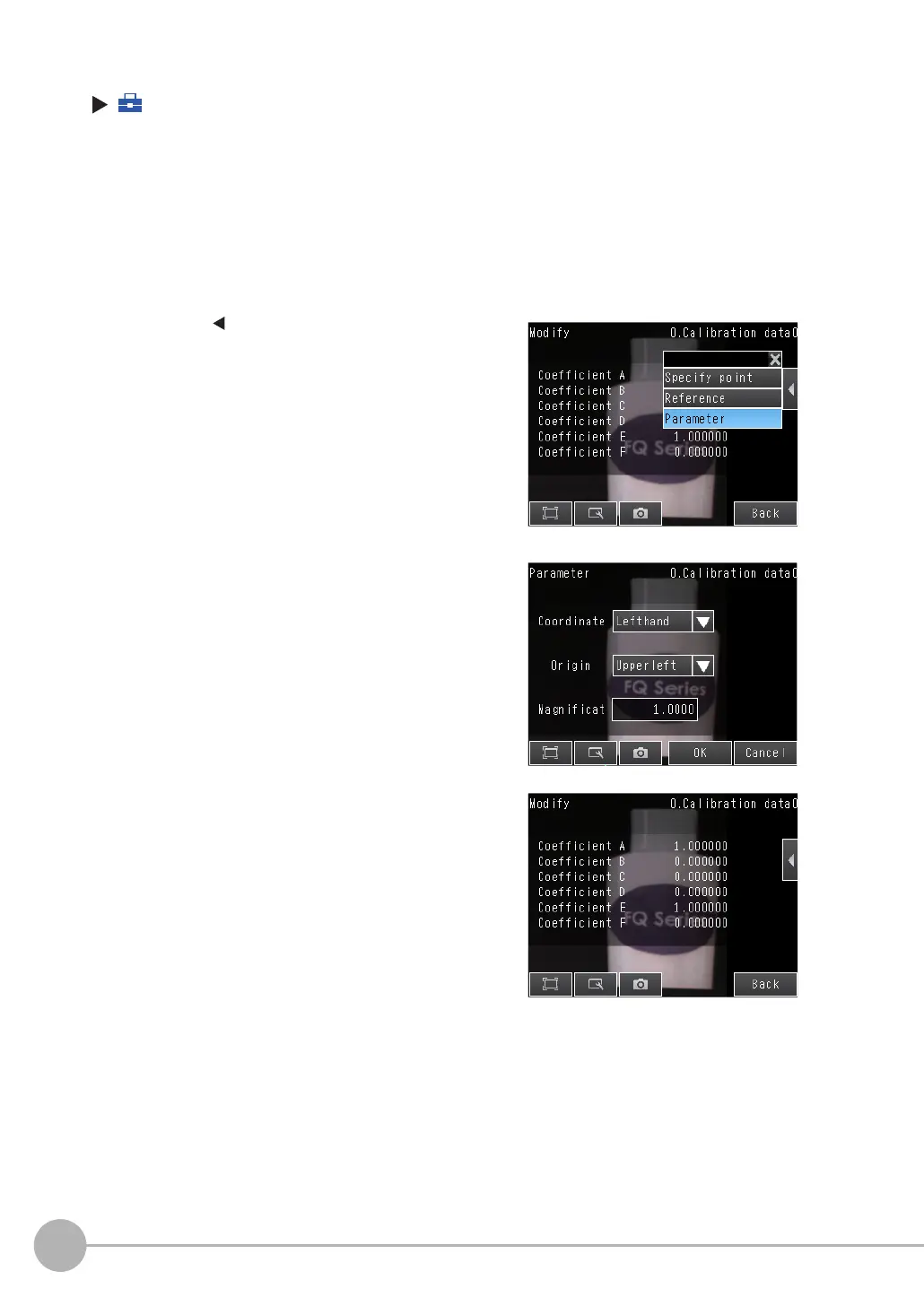

1 Select the data region to set from [Calibration data 0] to [Calibration data 31].
2 Press [Modify].
3 Press [] − [Parameter] on the right of the dis-
play.
4 Set the following parameters: [Coordinate], [Or-
igin], and [Magnification].
5 Press [OK].
6 The calibration parameters will be displayed.
The items in the calibration parameters are the
same as those for point specification.
