Omron FQ2-S/CH Series User Manual

Installation
FQ2-S/CH User’s Manual
49
2
Installation and Connections

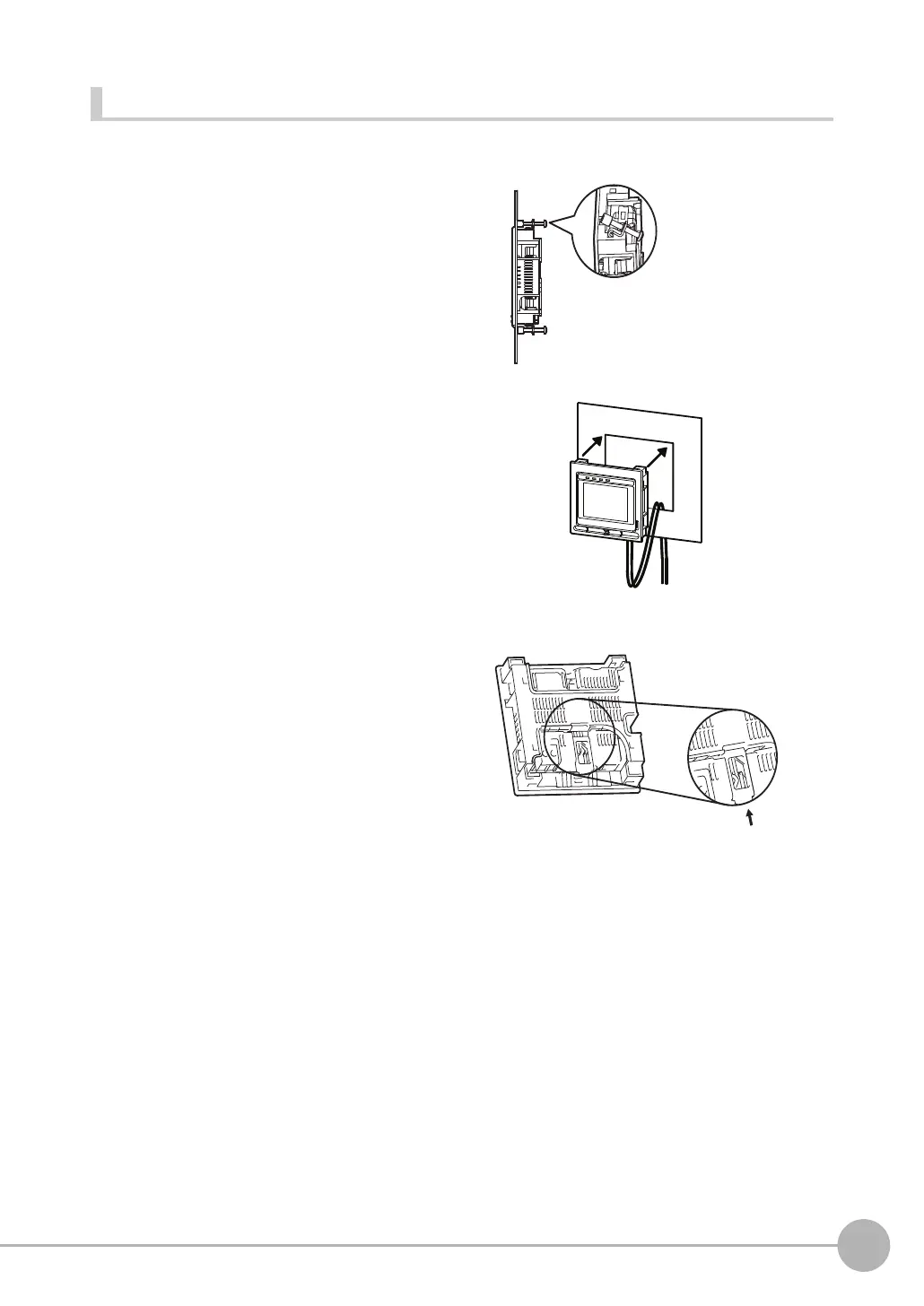

Removal Procedure
1 Take off the 4 Panel Mount Adapter’s
crews,
then remove these Mounting Bracket.
2 Remove the Touch Finder with the Panel
Mount Adapter from the panel.
3 Take off a cable from the Touch Finder.
4 Press down the look, then you are able to
unlock.
5 There are four Snap-fit parts on the back
of the Touch Finder. For remove the Snap-
fit part’s hooks, put in a slotted screw-
driver to these parts with pushing the
Touch Finder.
6 Remove the Panel Adapter from the Touch
Finder.
Mounting
Bracket
